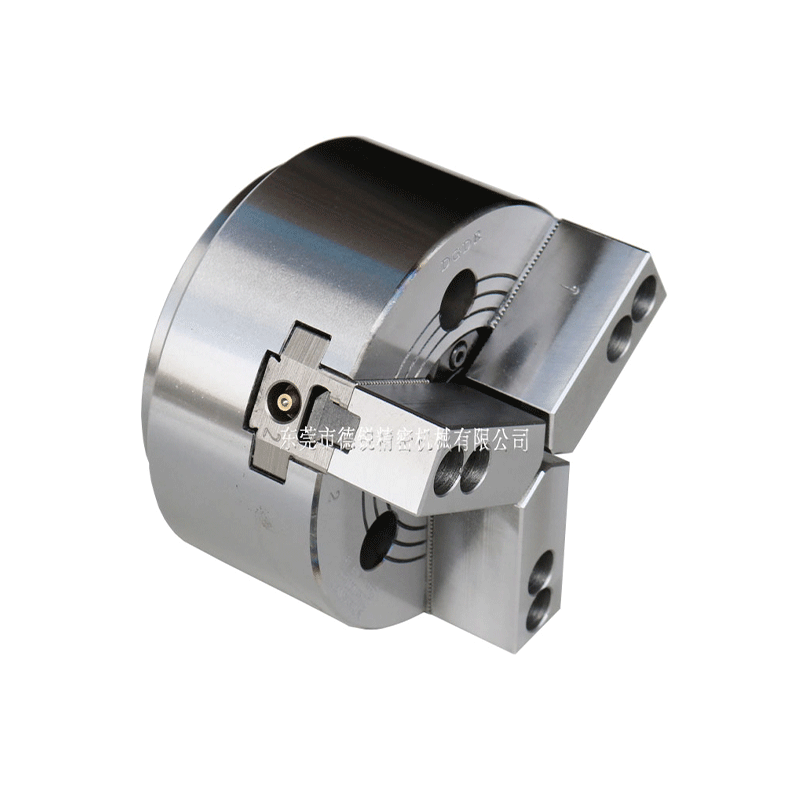

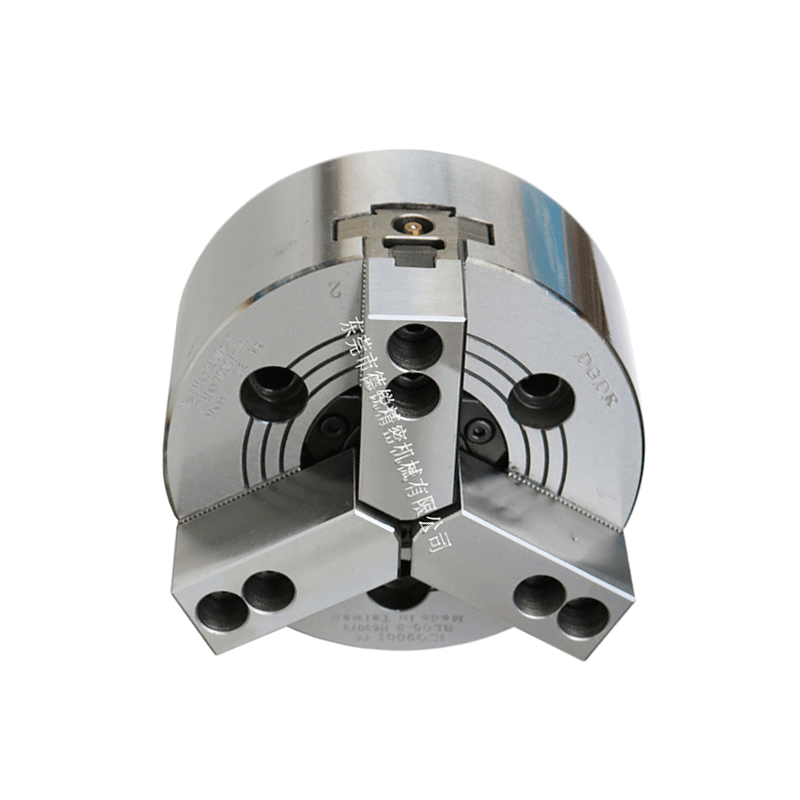

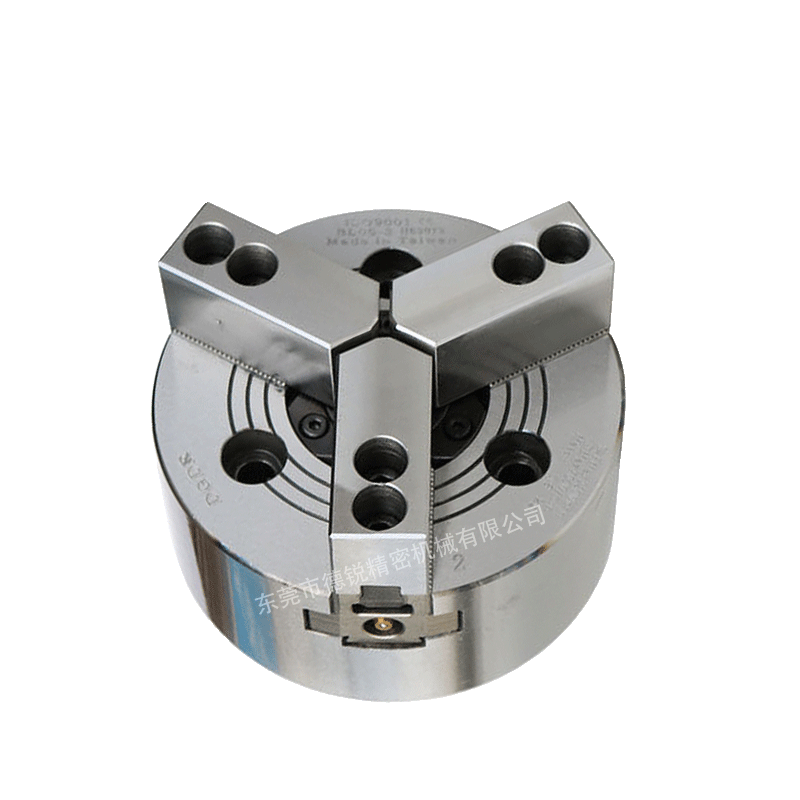

Hollow hydraulic three-jaw chuck
-
Product characteristics
Wedge-shaped three-jaw with large through hole diameter.
High rigidity and high precision.
The sliding surfaces have all been hardened and precisely ground, and are directly lubricated.

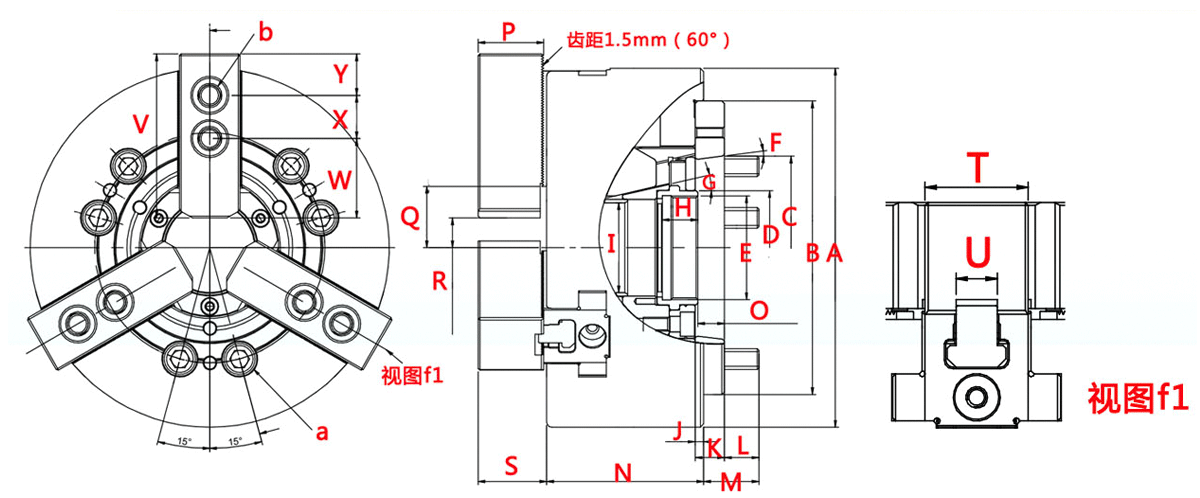

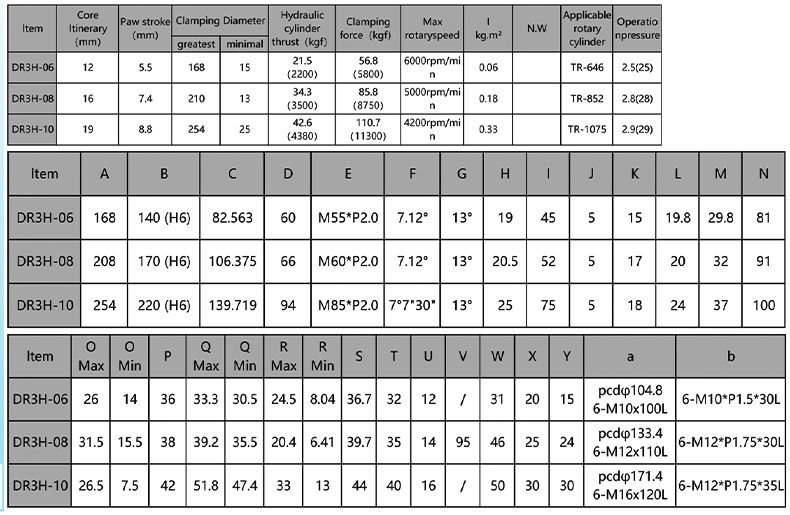

The value of "I" refers to the hole diameter when the connecting nut has no threaded teeth machined.
The value of "E" refers to the maximum specification of the threaded teeth that can be machined on the connecting nut.
It can also be customized according to actual requirements.
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
