The GAL is equipped with the DR small hollow pneumatic rotary chuck spindle assembly as a whole.

Customizable with high precision within 0.002 mm.

The JAC is equipped with the DR small pneumatic rotary chuck spindle assembly as a whole.

It has a high rotational speed and the clamping repeatability accuracy is within 0.025mm.

JAC Small Vertical Spindle Integration

The maximum rotational speed is 1,000 revolutions per minute. The clamping repeatability accuracy is within 0.03mm. The maximum diameter of the through hole is 25mm. Different collets can be replaced for different workpieces.

GR high-precision spindle clamping seat.

The collet is clamped by rear pull, and the clamping repeatability accuracy is within 0.01mm. The maximum diameter of the through hole is 25mm.

GA/GH/DZ/GXL Pneumatic chuck spindle integration with auxiliary jaws.

Fixtures for automated equipment such as laser cutting and sealing machines. The maximum diameter of the through hole that can be manufactured is 500mm. Either pneumatic or hydraulic pressure can be chosen. No additional installation of a rotary cyli

GAL-15 is paired with the DR-25 spindle integration.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.005mm. It is dustproof, waterproof and has a high rotational speed. It is designed with a central through hole.

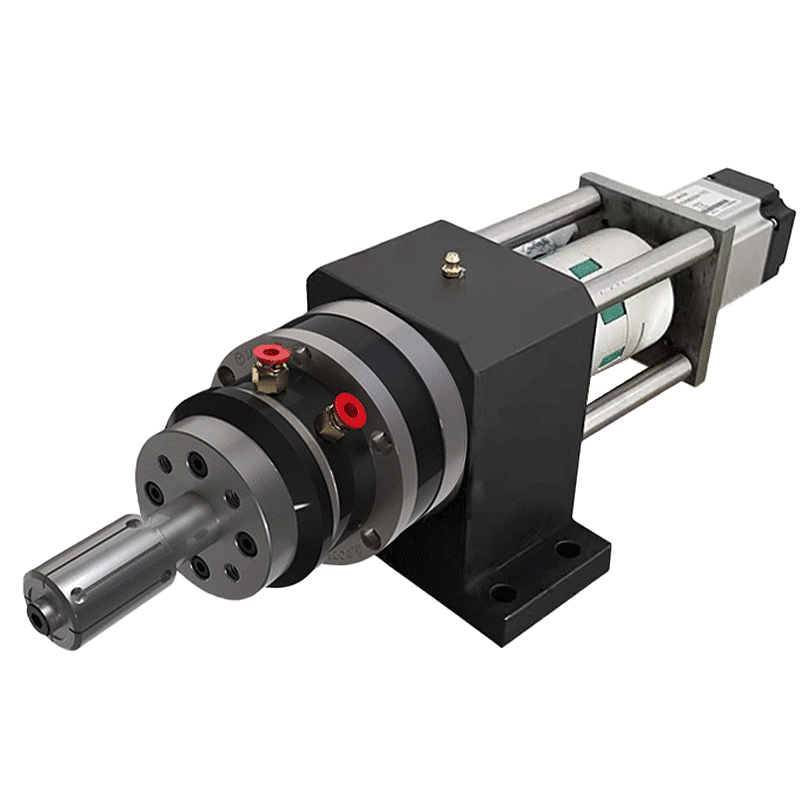

SA is paired with the DR pneumatic internal expansion chuck spindle assembly.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Either direct connection to the motor or being driven by the synchronous pulley is available. The inner diameter collet can be manufactured according to the wo

SA is paired with the DR pneumatic internal expansion chuck spindle assembly.

The clamping repeatability accuracy can be selected within the range of 0.01mm to 0.002mm. Either direct connection to the motor or being driven by the synchronous pulley is acceptable. The inner diameter collet can be manufactured according to the w

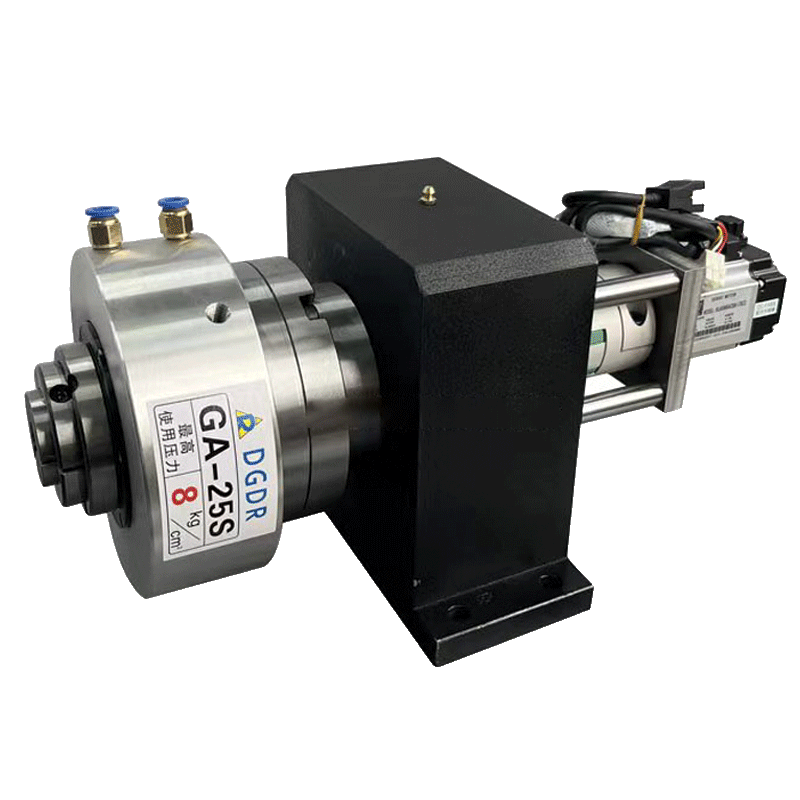

GA-25S is paired with the DR high-precision pneumatic rotary spindle integration.

The clamping repeatability accuracy is within 0.05mm. It has high flexibility in operation and the auxiliary jaws can be quickly replaced. It is specifically designed for automated high-precision equipment.

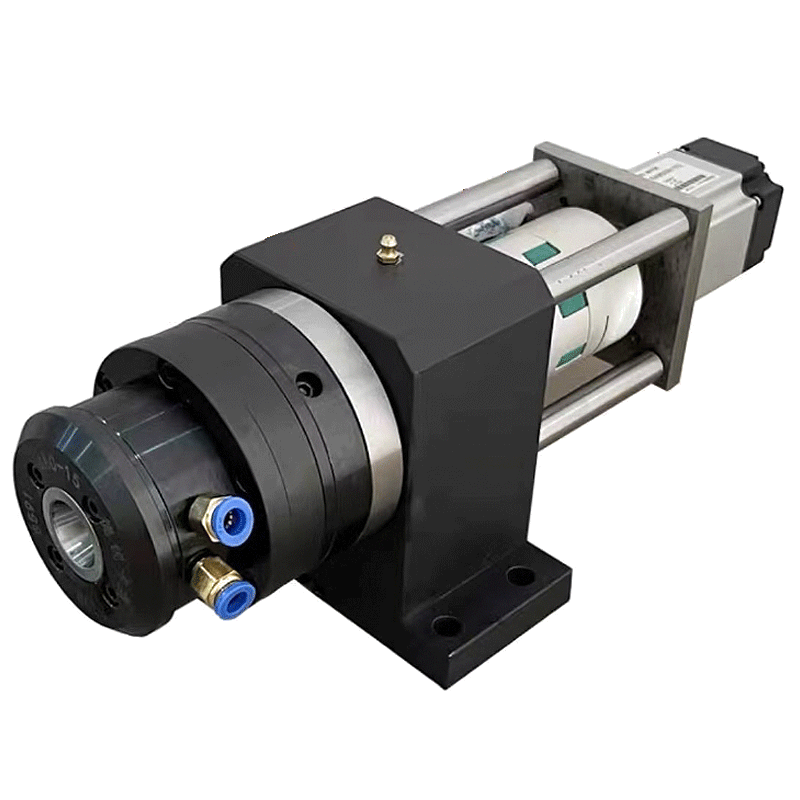

JAC-15 is paired with the DR-25 spindle integration with direct connection to the motor.

The precision can be selected within the range of 0.025mm to 0.005mm. It is dustproof, waterproof and has a high rotational speed. It is designed with a central through hole.

JAC-15 is paired with the DR-25 high-precision spindle integration.

The accuracy can be selected within the range of 0.025mm to 0.005mm. It is dustproof, waterproof and capable of high-speed rotation. It is designed with a central through hole.

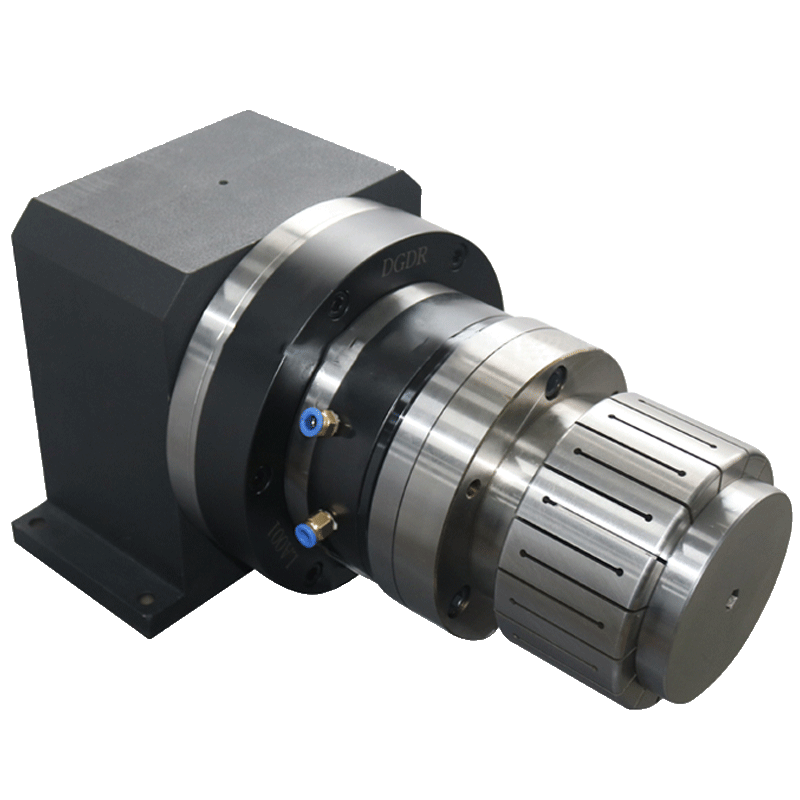

JAC-E is paired with the DR pneumatic internal expansion spindle integration.

The clamping accuracy can be selected within the range of 0.015mm to 0.005mm. It can be used for both internal expansion and external clamping. It features high rotational speed and high precision.
