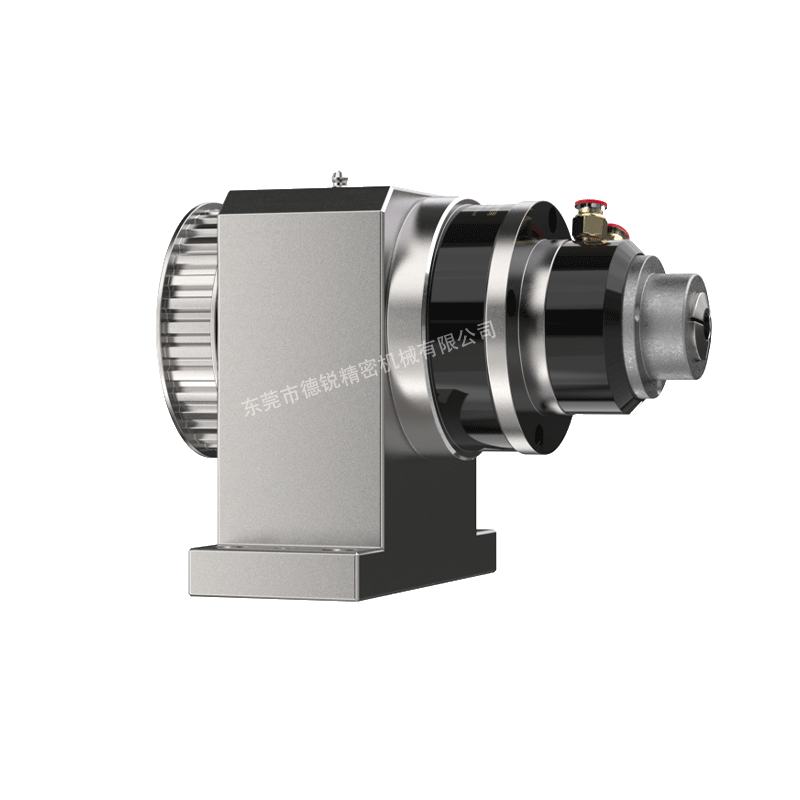

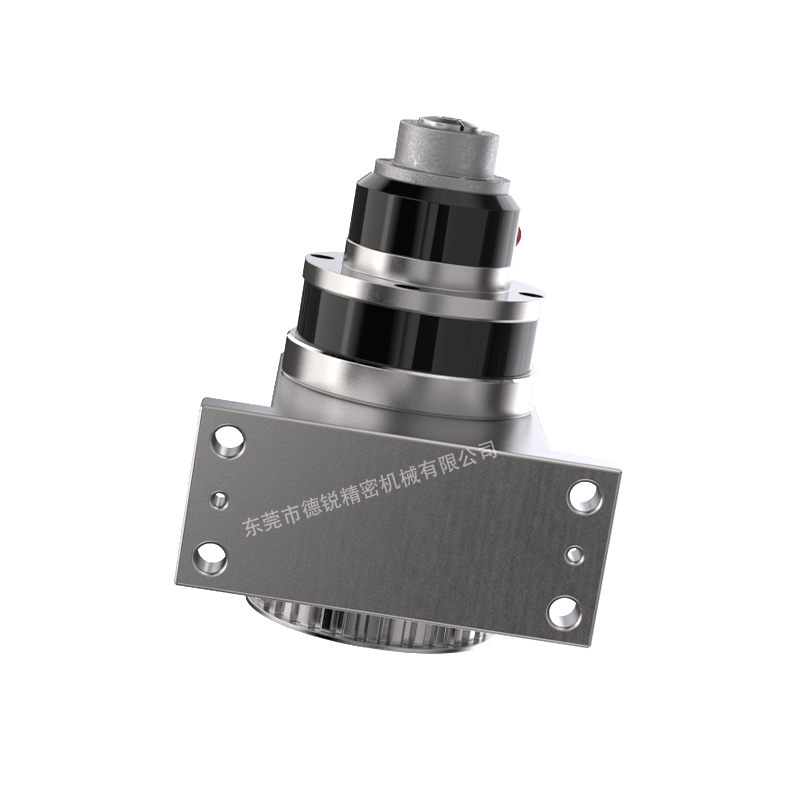

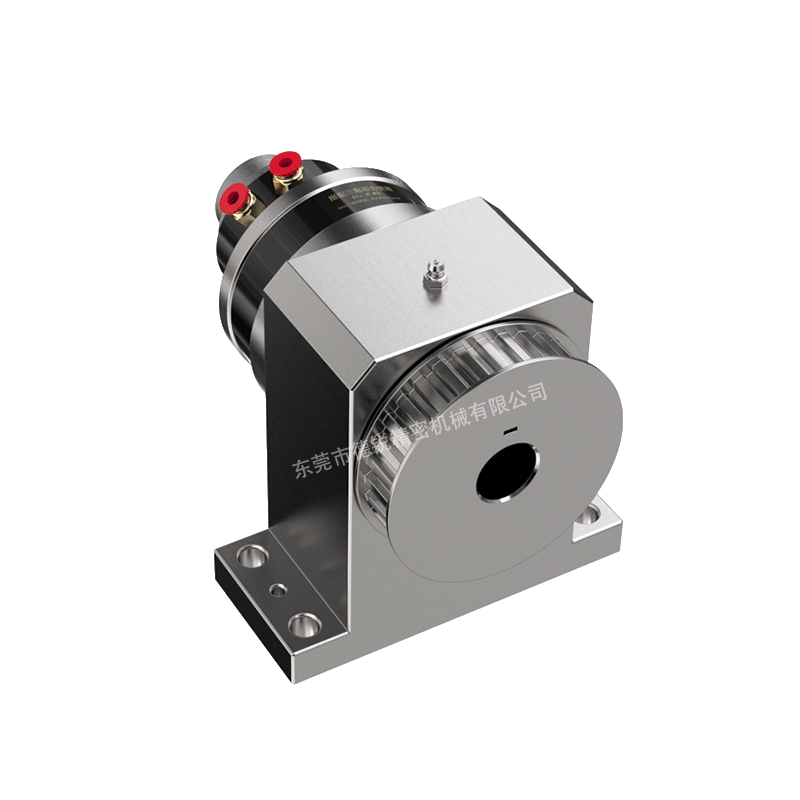

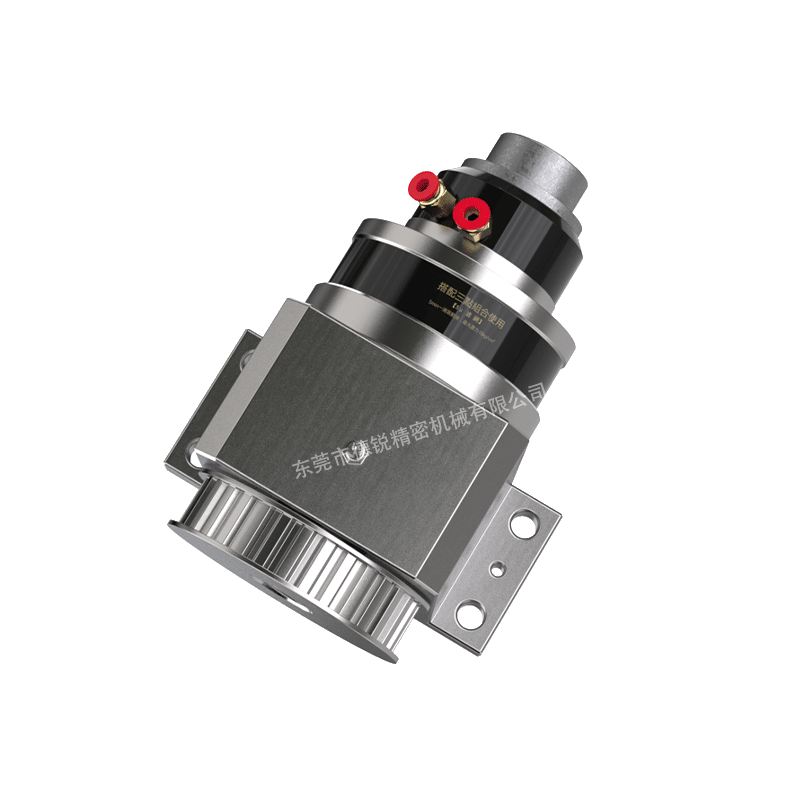

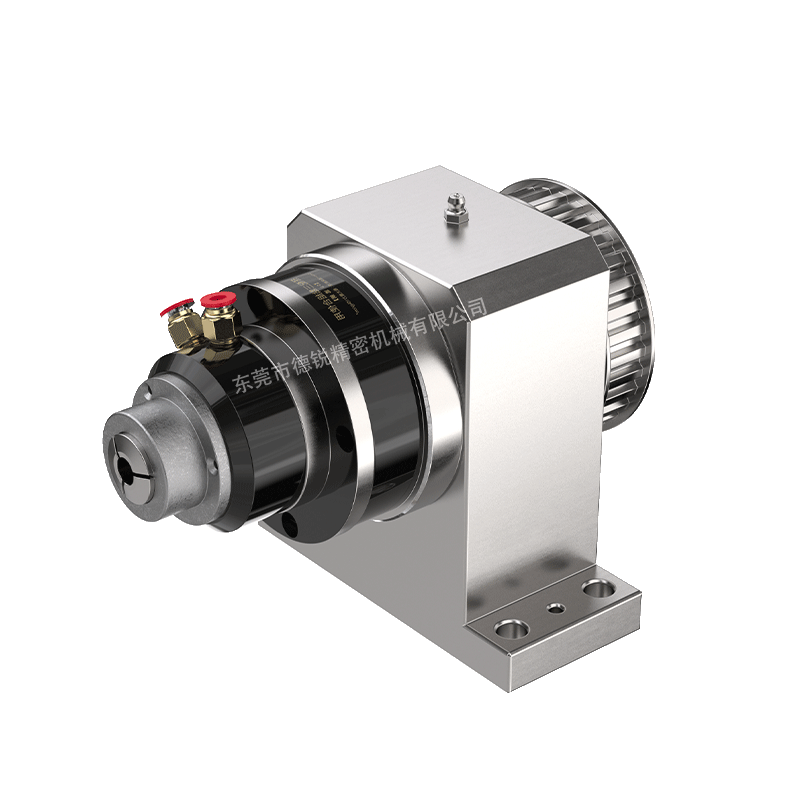

The chuck body of the spindle assembly of the small pneumatic rotary chuck is made of steel, with a small installation outer diameter.
The maximum rotational speed is 3500 revolutions per minute.
It has a central through hole, and collets can be changed for different workpieces.
It has a built-in rotary cylinder, eliminating the need for additional installation of a rotary cylinder (hydraulic cylinder).
The accuracy of the body is 0.005 mm, and the repeated clamping accuracy is within 0.005 mm.
(Customization is available with high precision within 0.002 mm.)
It pushes forward to clamp the workpiece without jamming materials or displacement.
The chuck has airtight, dustproof and waterproof functions.
It can be installed vertically or horizontally.
The rear transmission can be directly connected by a motor coupling, or connected by a synchronous pulley belt or gears.
It is widely used in automation equipment such as precision lathes, grinding machines, laser cutting machines and robots.
