Product characteristics

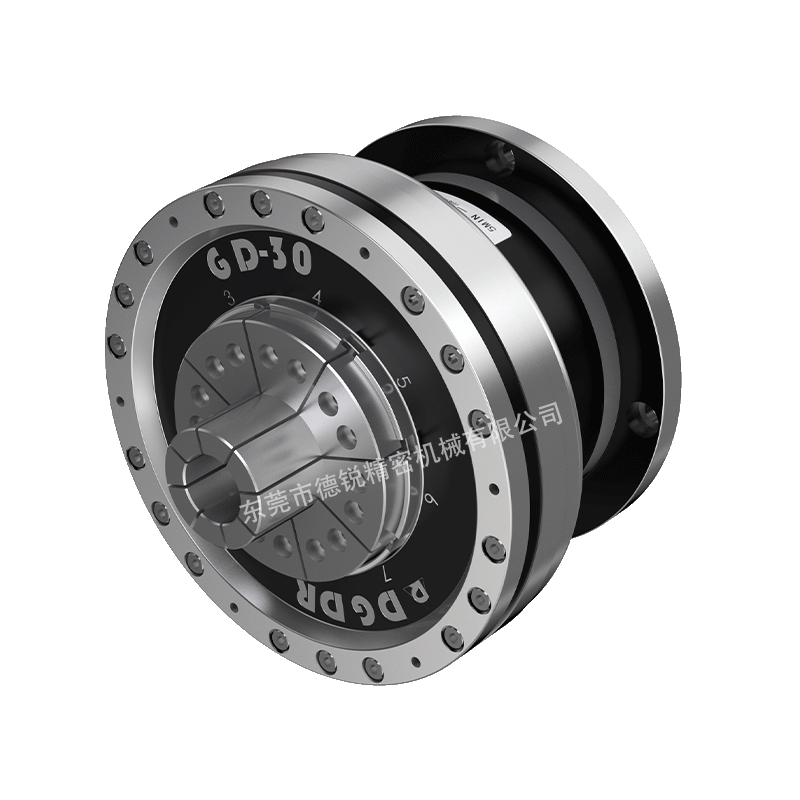

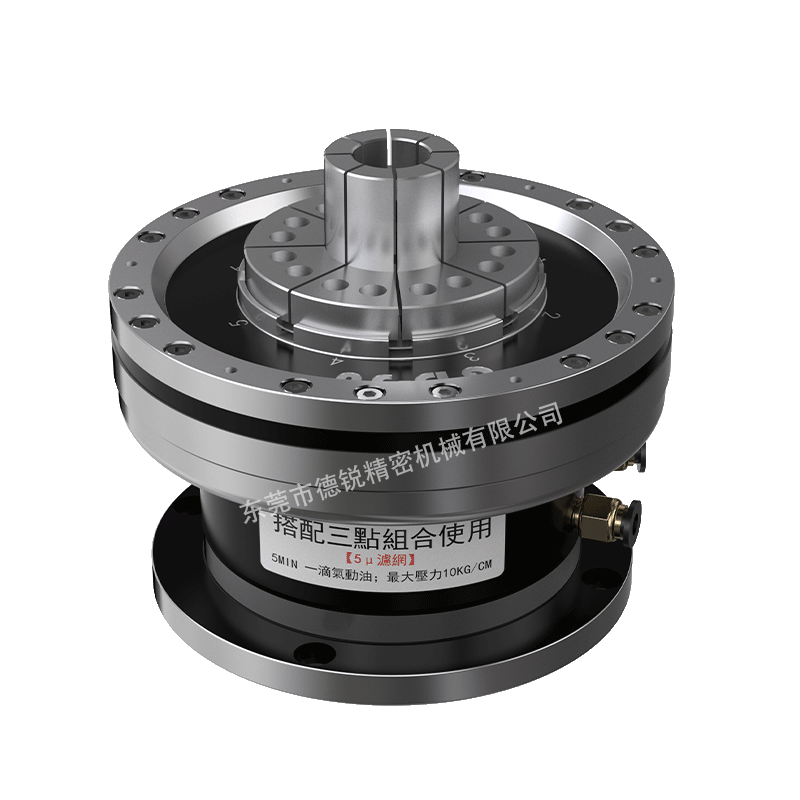

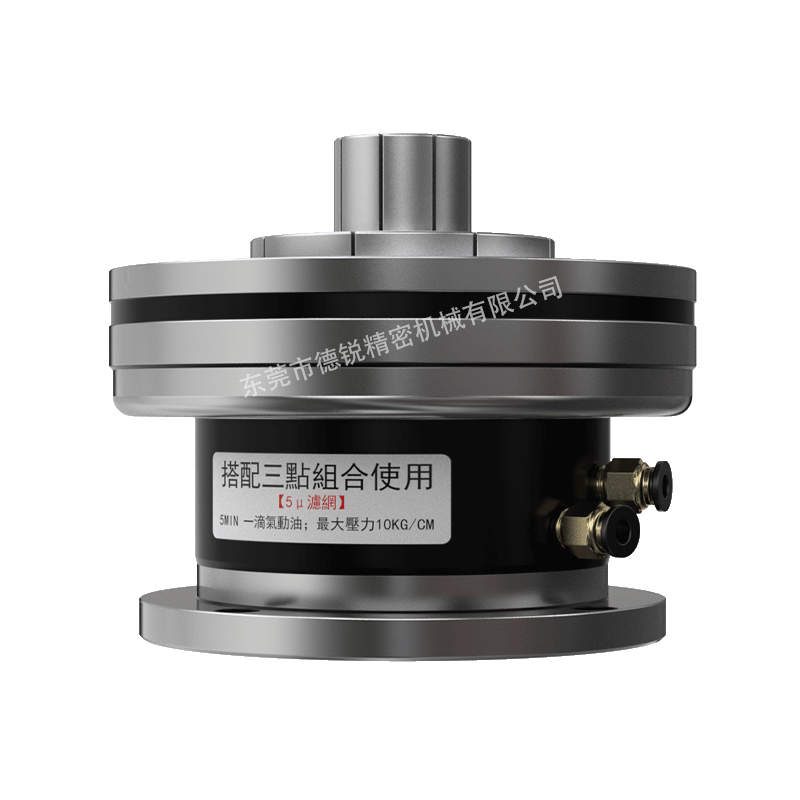

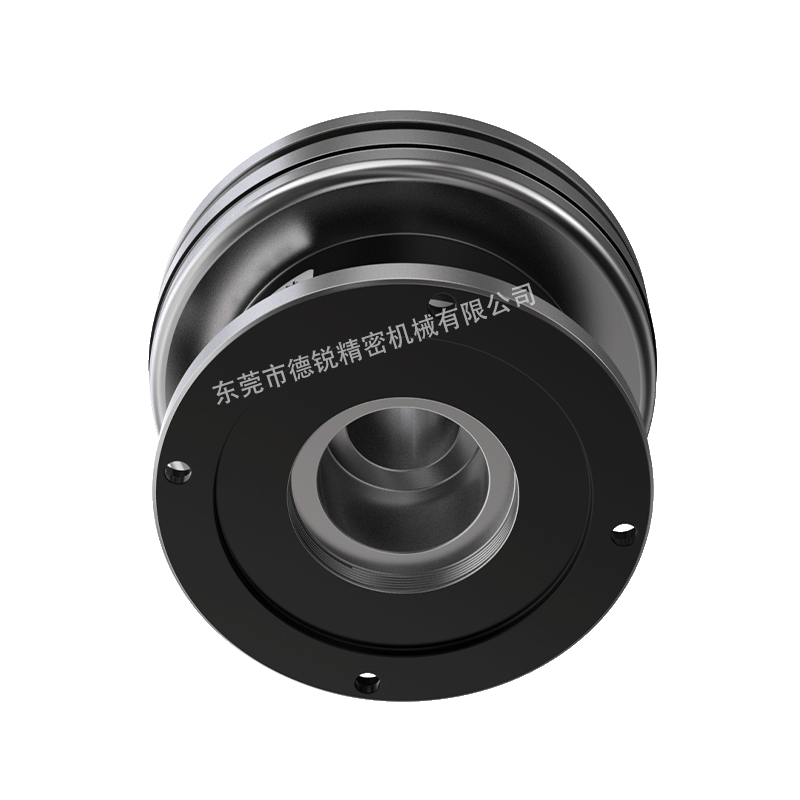

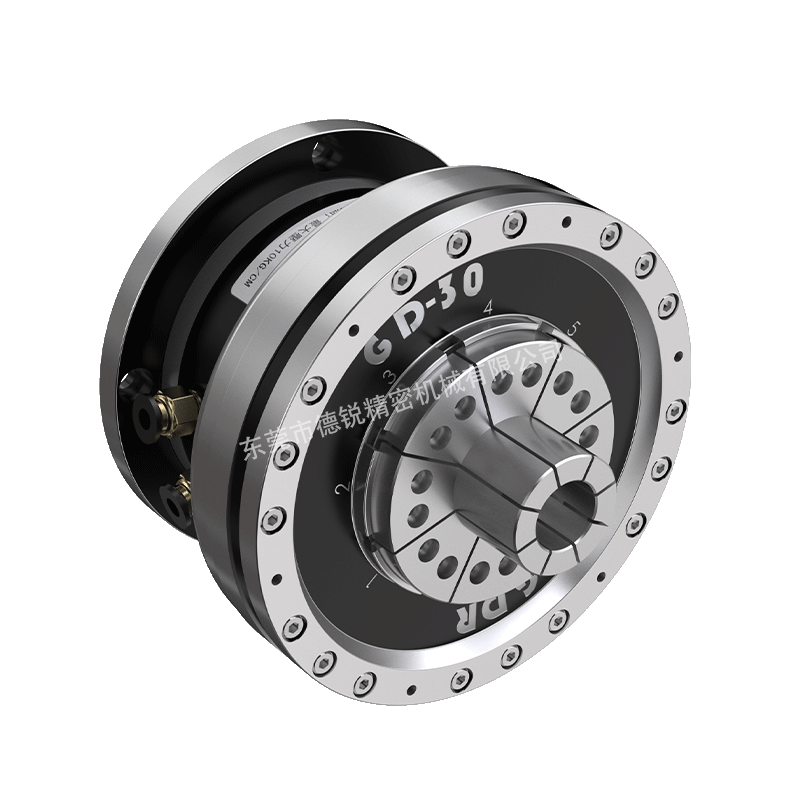

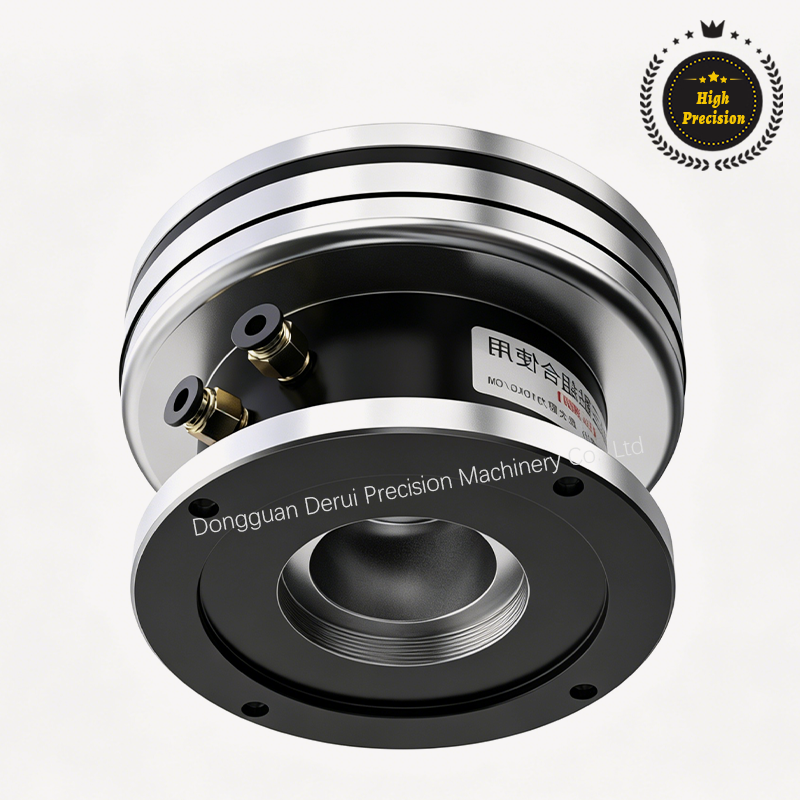

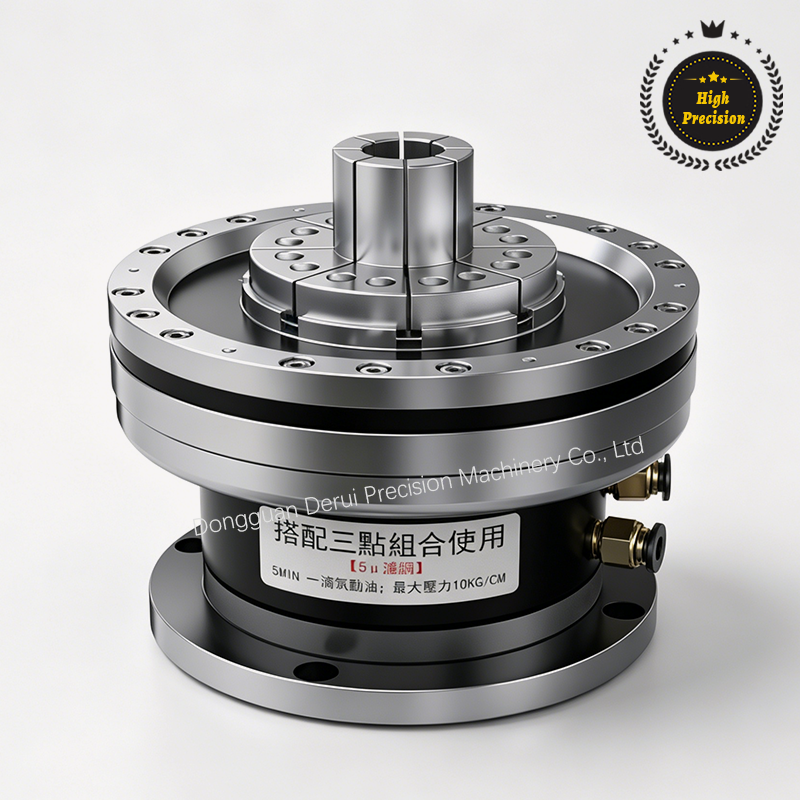

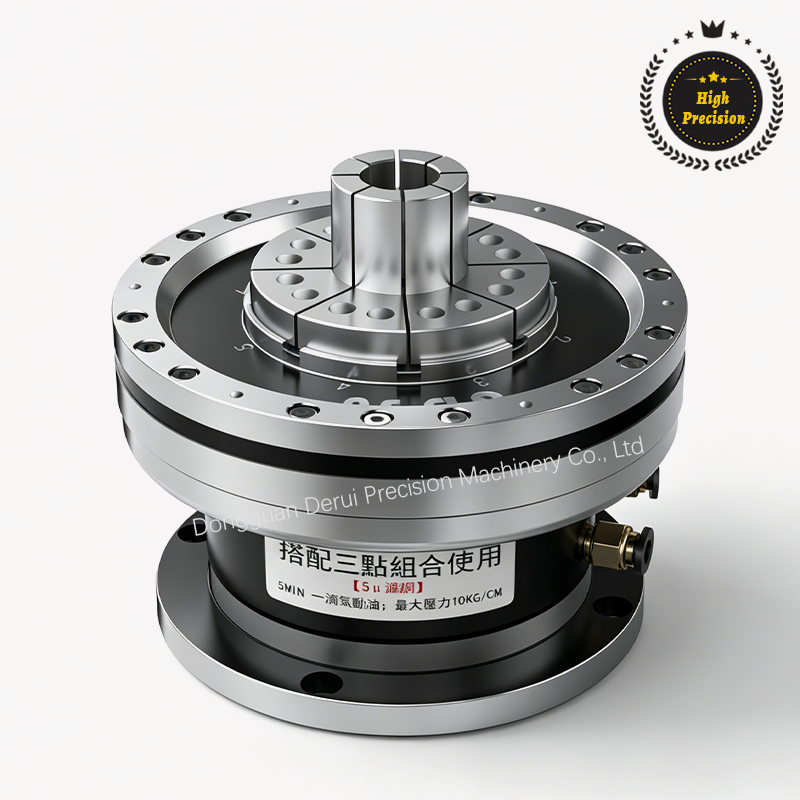

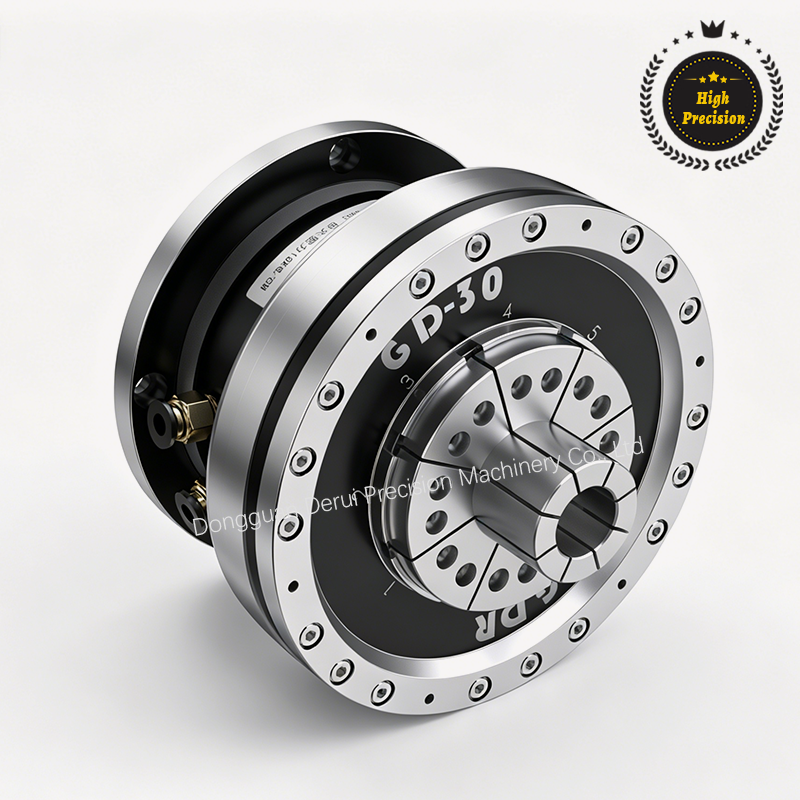

The diaphragm pneumatic chuck has a steel chuck body, which enjoys a long service life.It has a built-in rotary cylinder, eliminating the need for additional installation of a rotary cylinder.The clamping repeatability precision is within 0.005 mm.It has a high rotational speed, with the maximum rotational speed reaching 3,500 revolutions per minute.It can be used for both internal expansion and external clamping, and the clamped workpiece will not deform.It is suitable for clamping thin-walled and fragile workpieces, and the clamping force can be finely adjusted.There are positioning holes on the end face, which can be used to position the clamping length.It is dustproof and waterproof, and has high rigidity.
