Product characteristics

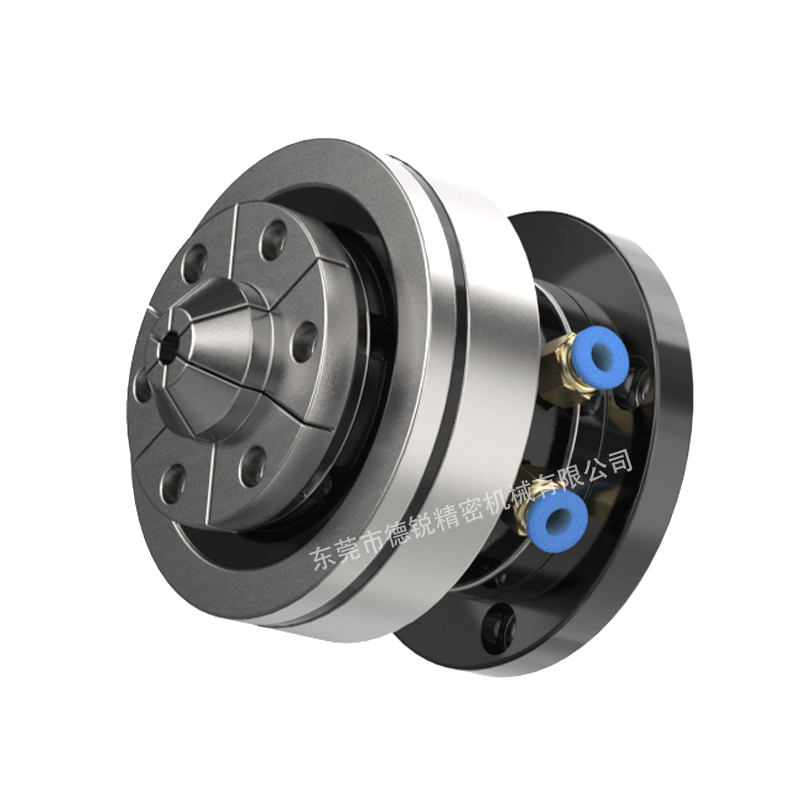

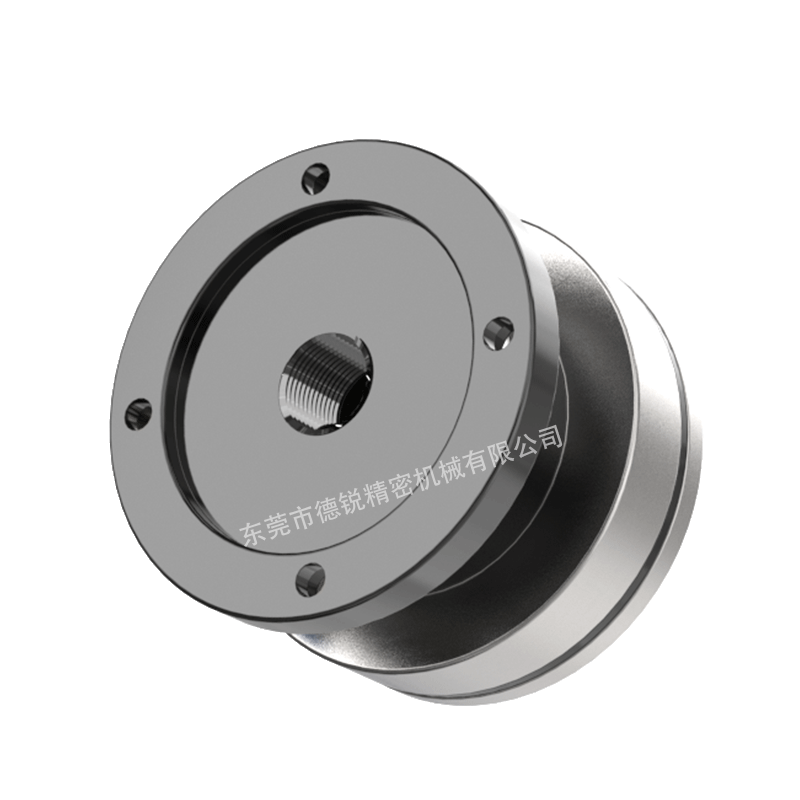

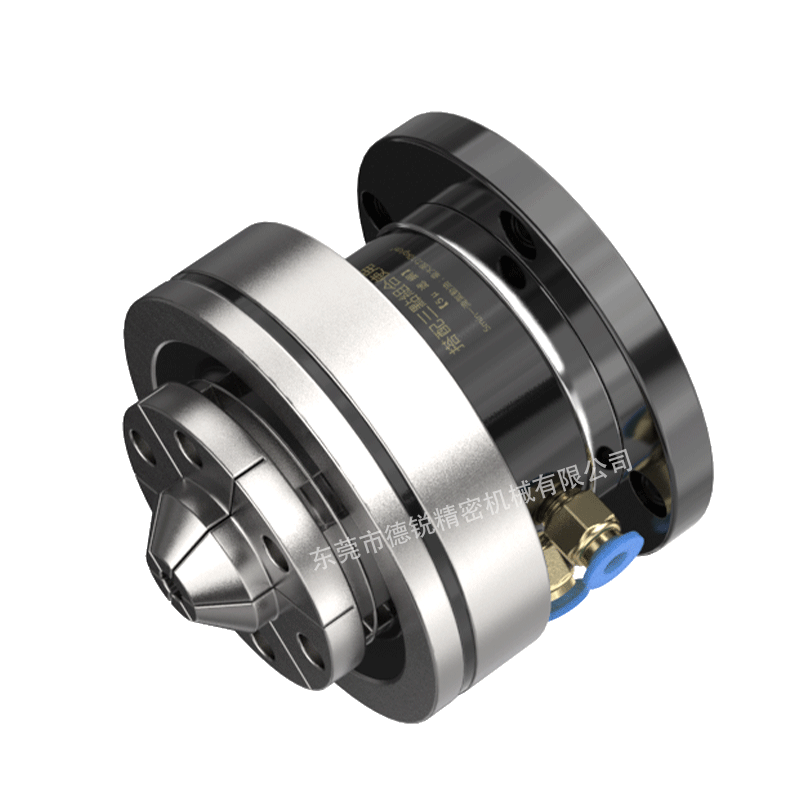

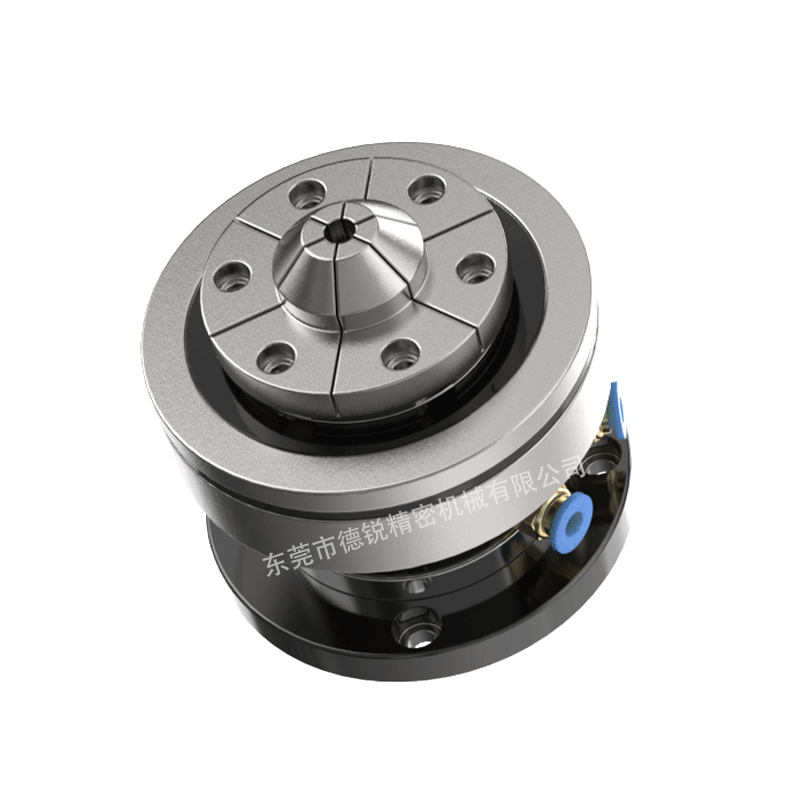

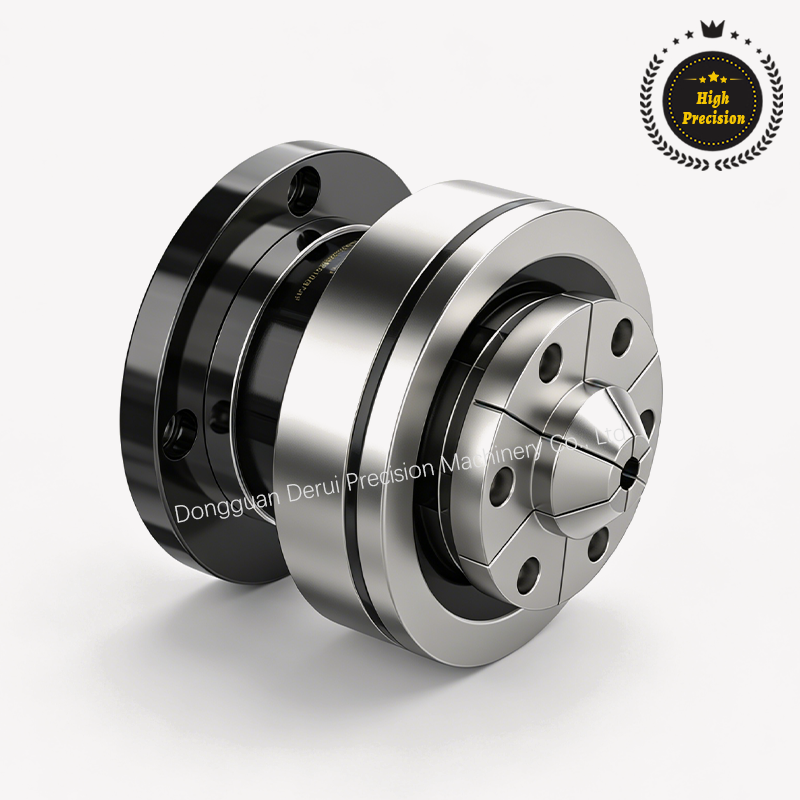

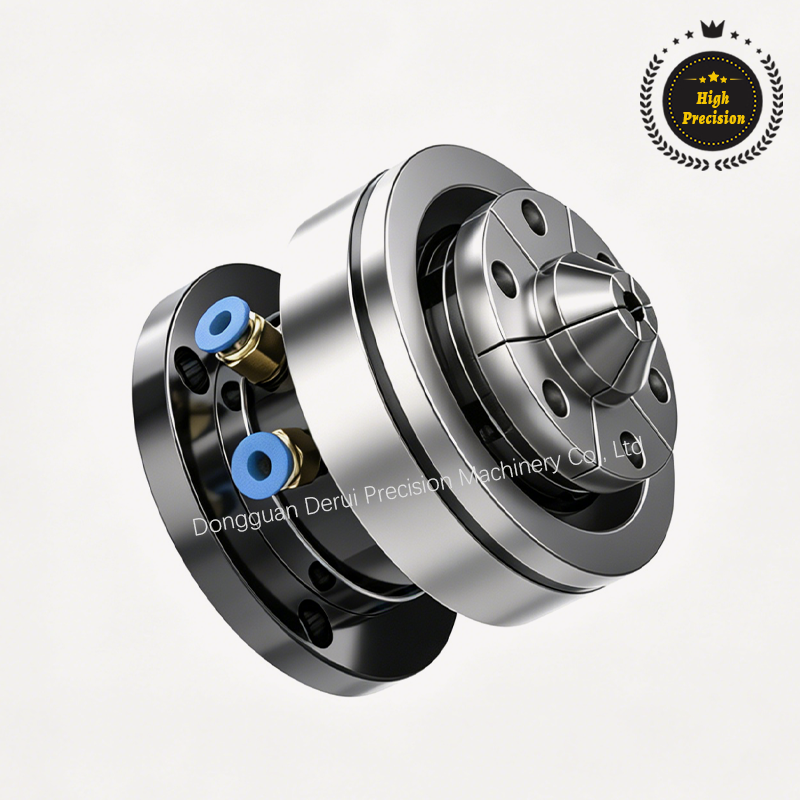

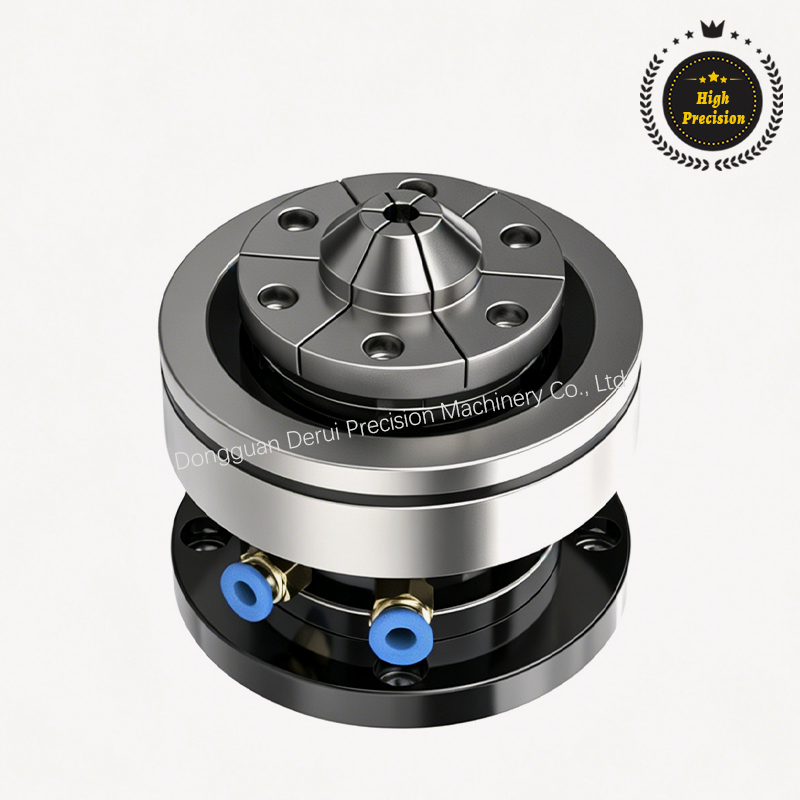

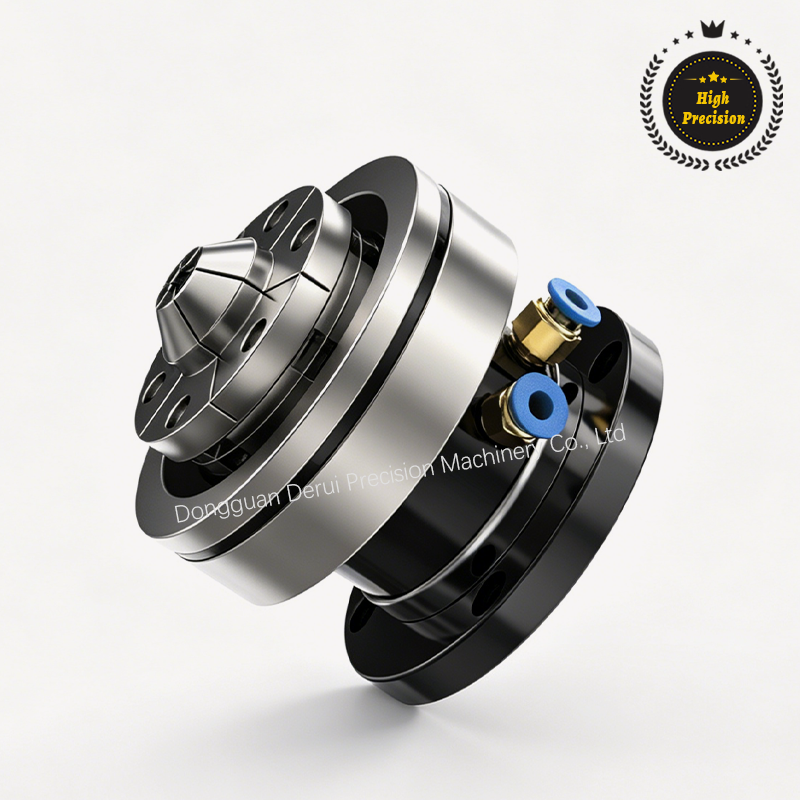

The GM High-Precision Diaphragm Series Pneumatic Rotary Chucks of Derui Chucks are pneumatic fixtures with a built-in rotary cylinder. There is no need to install an additional rotary cylinder. The chucks can be loosened or clamped simply by connecting the air pipe to the side directly, and the position of the air pipe connection does not rotate. The GM High-Precision Diaphragm Pneumatic Chucks of Derui have a repeat clamping accuracy within 0.005 mm. They have a central through hole and can be used for both internal and external clamping, which is suitable for clamping thin and fragile workpieces that are prone to deformation, ensuring the roundness of the parts. The Derui GM Precision Pneumatic Diaphragm Chucks are widely used in precision CNC lathes, precision grinding machines, inspection equipment, precision laser cutting machines and various high-precision automated equipment. In the processing of widely used parts, such as mechanical parts, automotive parts, military parts, medical parts, ceramics and other high-precision parts, the clamping and processing by using these chucks can greatly improve the clamping accuracy and production efficiency of products.
