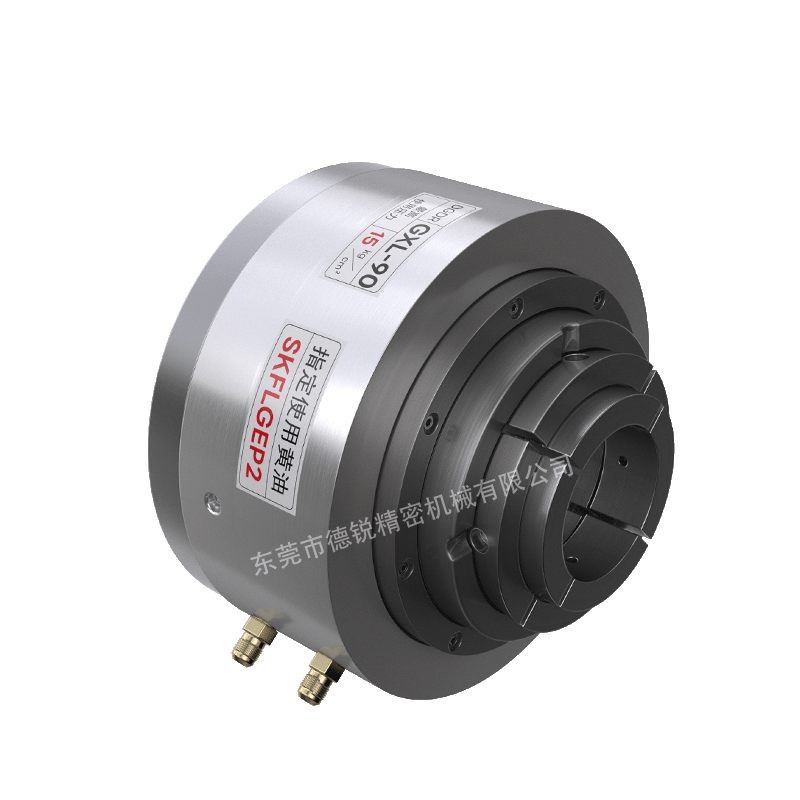

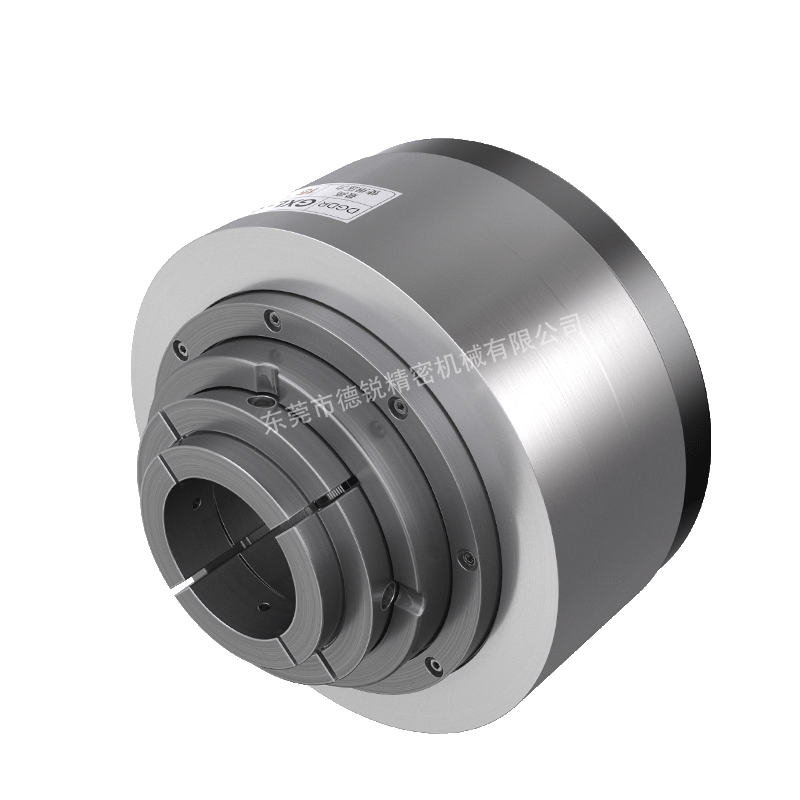

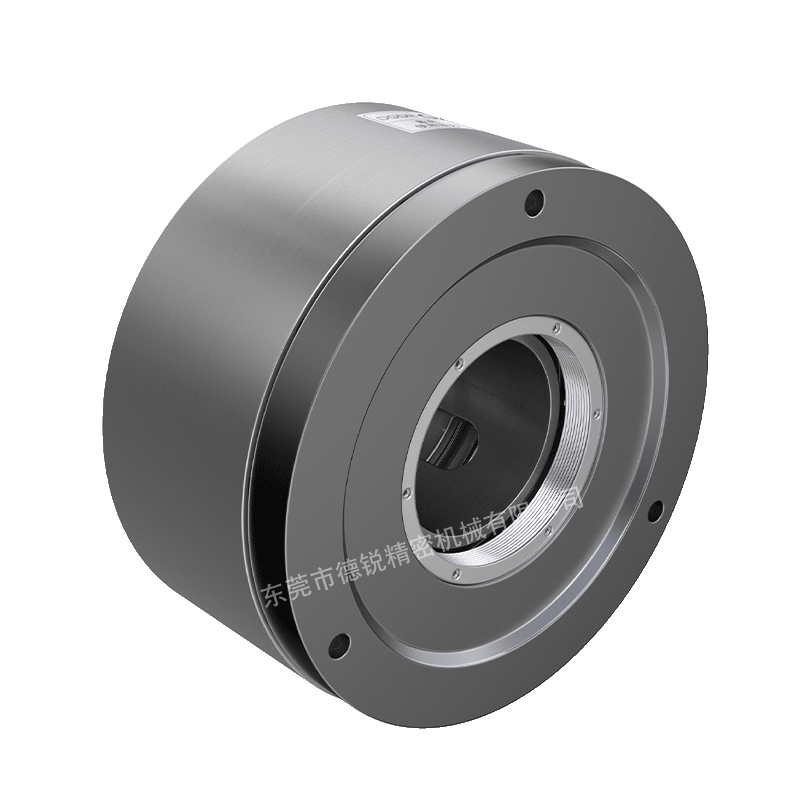

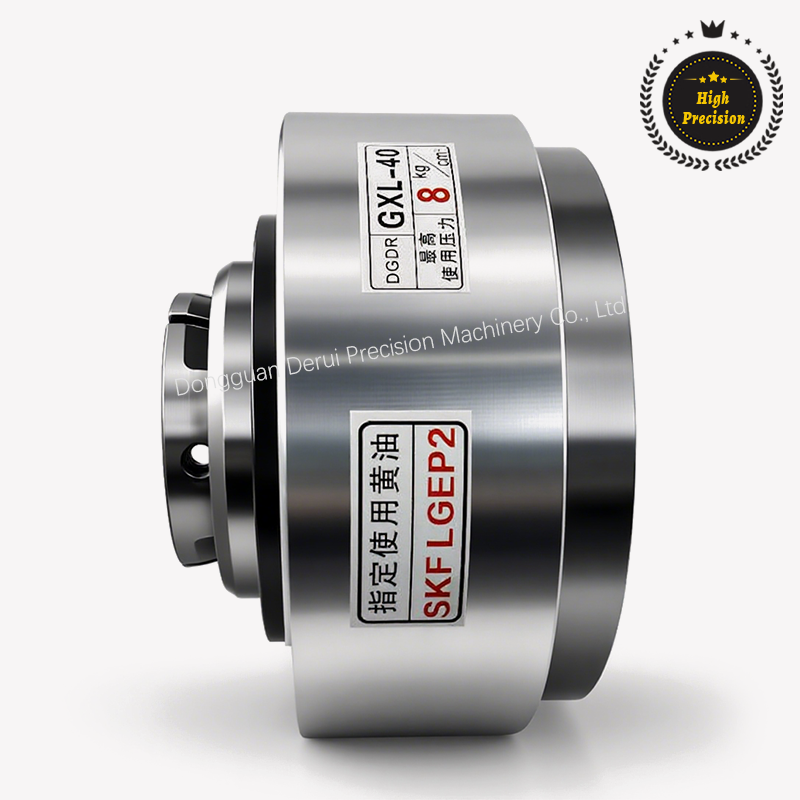

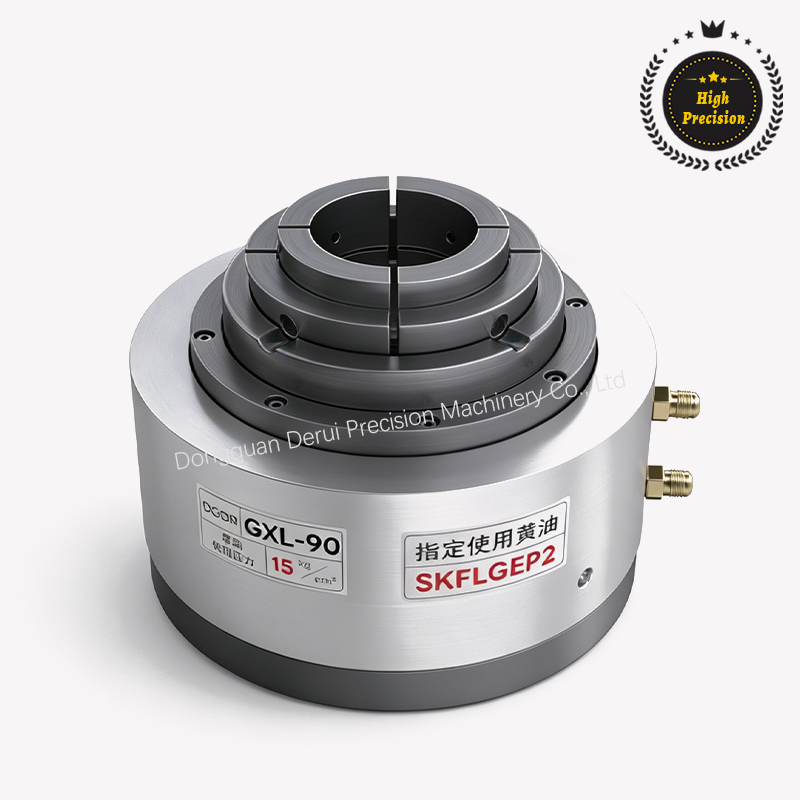

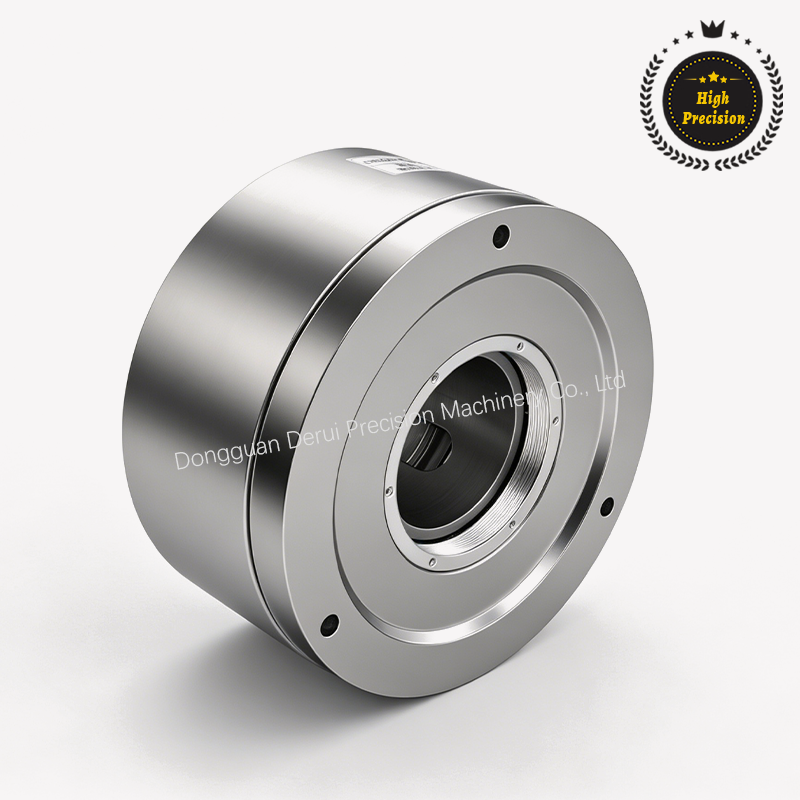

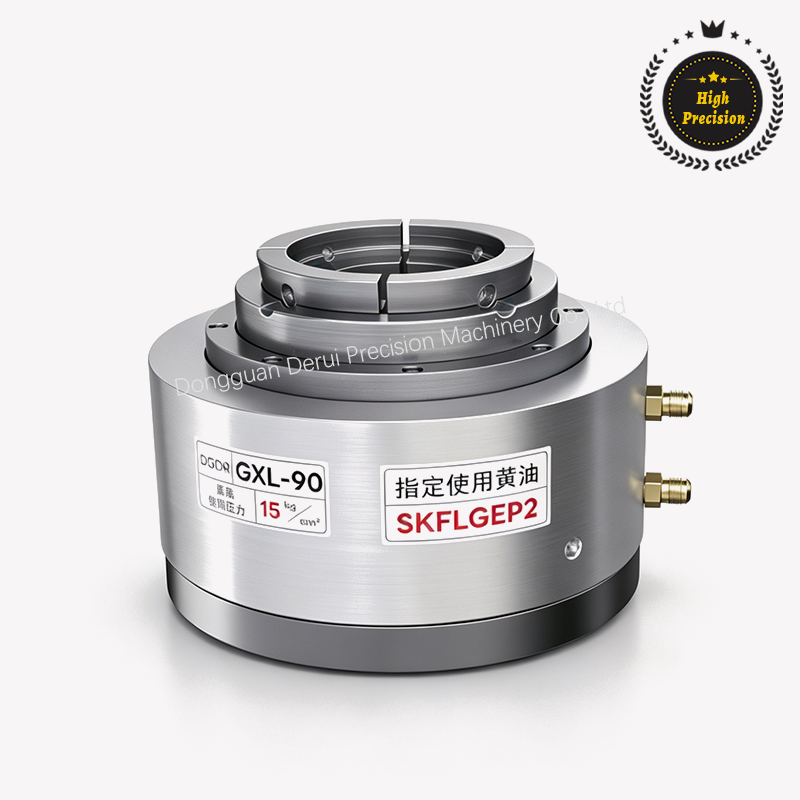

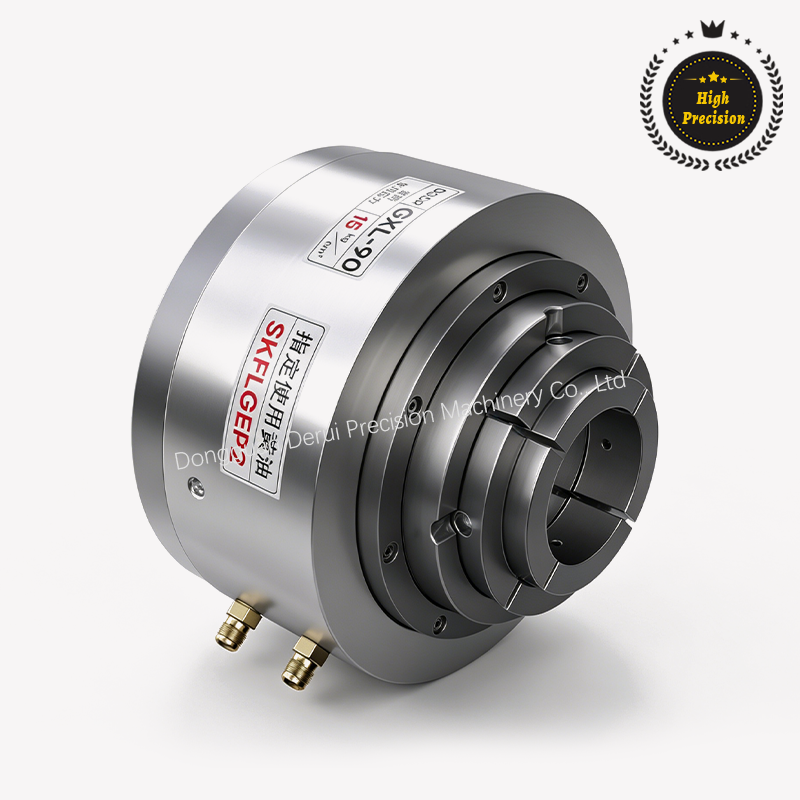

GXL Pneumatic Rotary Chuck with a Long Stroke, Central Air Pneumatic Chuck
Product characteristics
The pneumatic chuck with a long stroke has a built-in rotary cylinder, eliminating the need for additional installation of a rotary oil cylinder.
The opening stroke is 2.5 mm.
It is easy to install and can quickly establish a workpiece clamping system.
It has high work flexibility and the vice jaws can be replaced quickly.

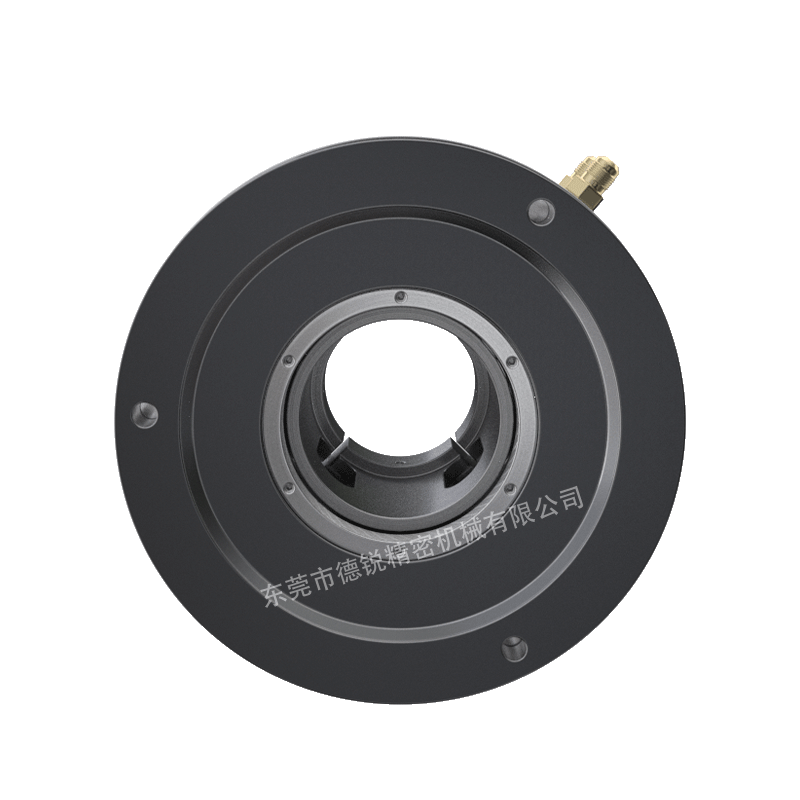

It has a central through hole (the maximum diameter of the through hole is 200 mm) and supports rear feeding.
The maximum rotational speed is 1,800 revolutions per minute.
The repeat clamping accuracy is within 0.05 mm.
It has a forced opening function and will not jam materials.
It is suitable for retrofitting traditional lathes into automated or semi-automated ones (such as for automated equipment like sealing machines and punching machines).
Cutting fluid should not be directly sprayed towards the chuck.
Product advantages
Support customization.
One-year quality warranty.
Made in Taiwan, China.

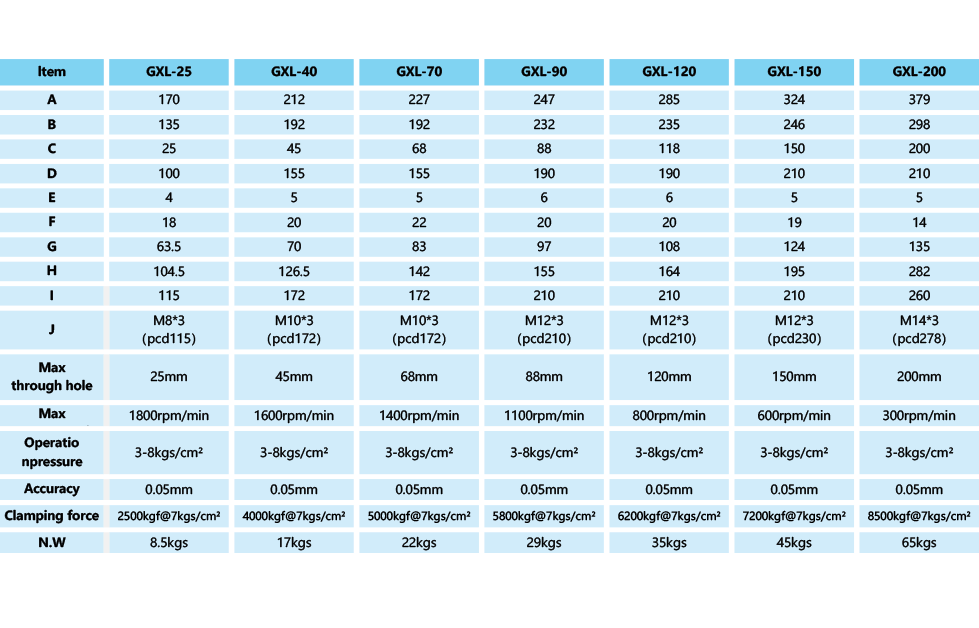

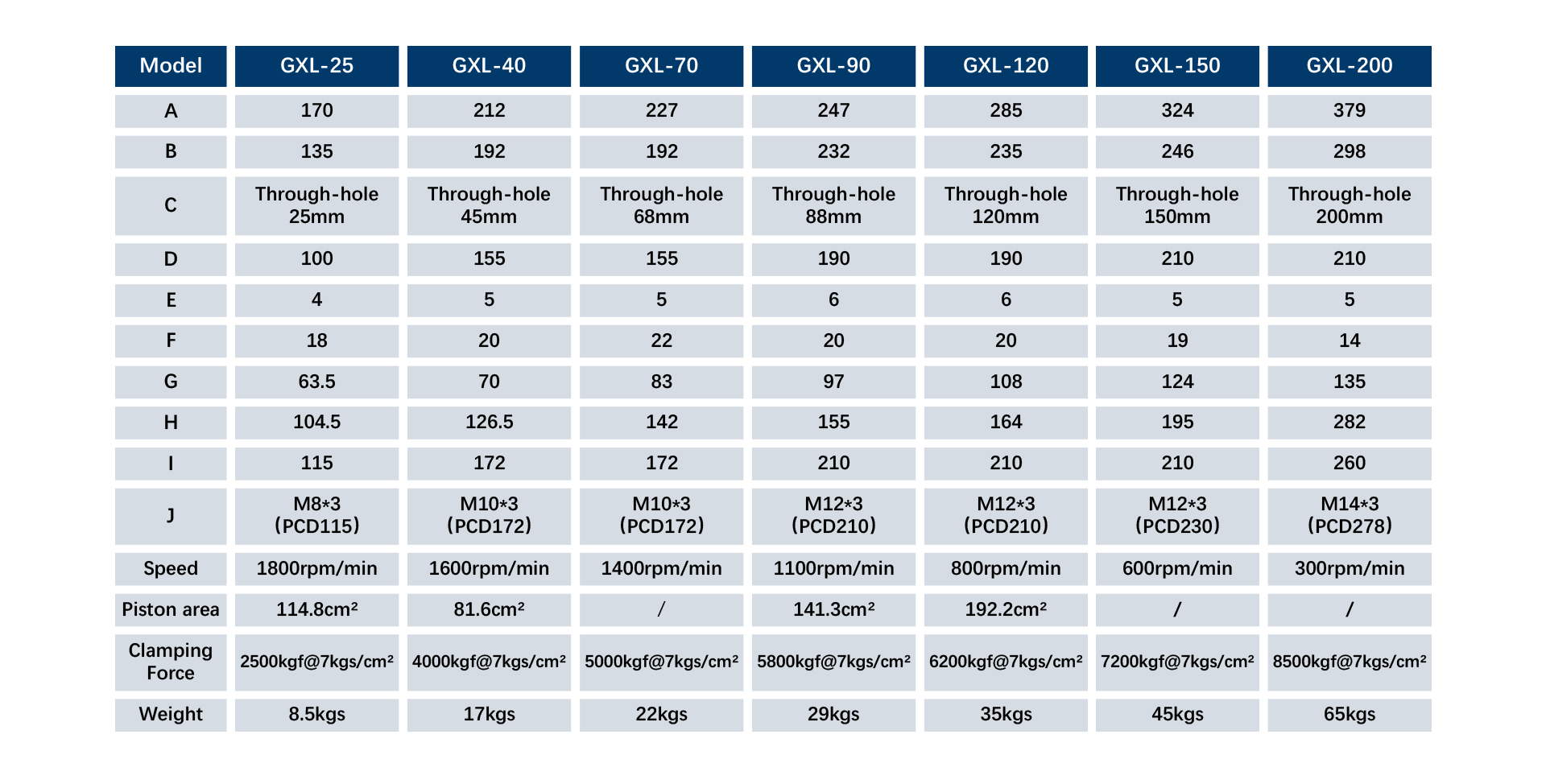

There are multiple models available for selection: GXL-25, GXL-40, GXL-70, GXL-90, GXL-120, GXL-150, GXL-200, GXL-250.
Brand: DGDR
