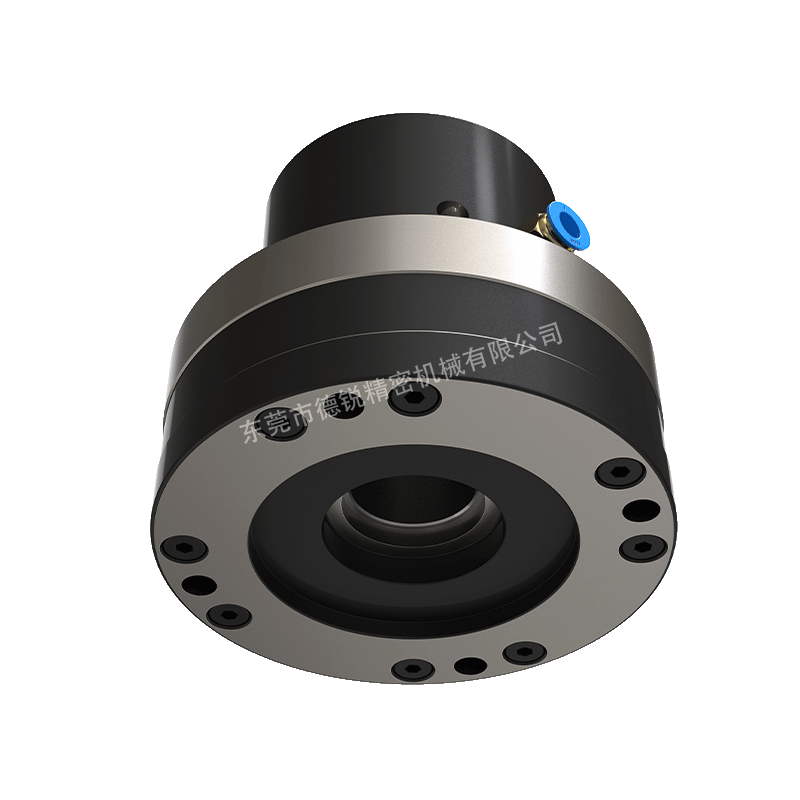

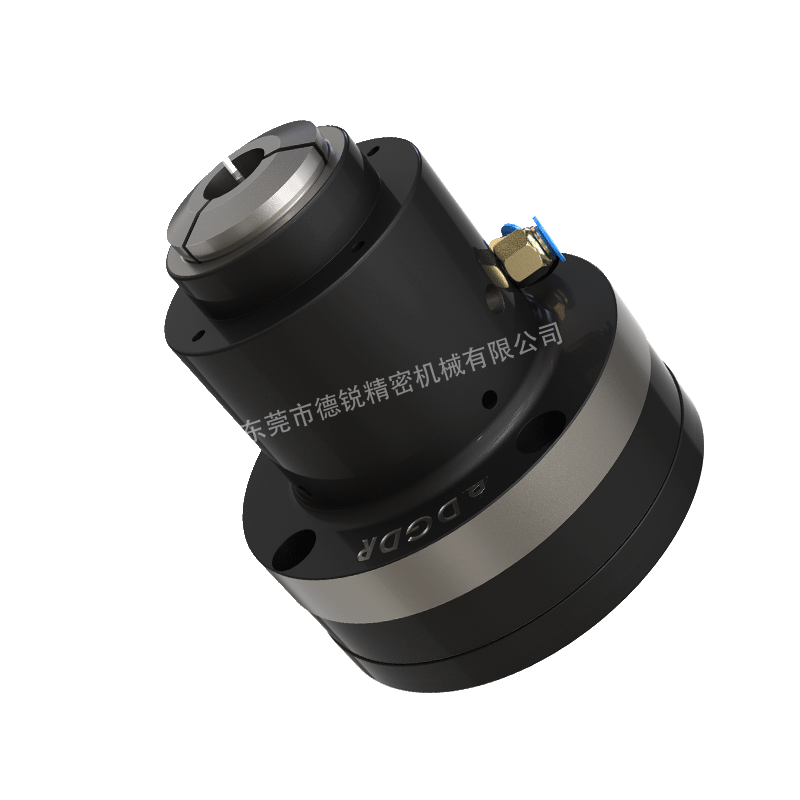

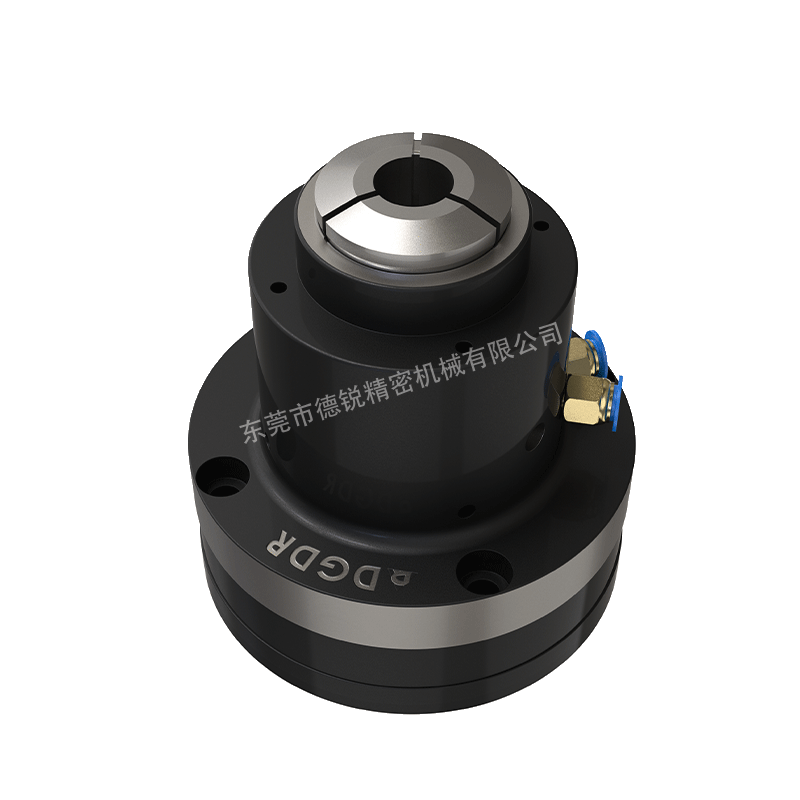

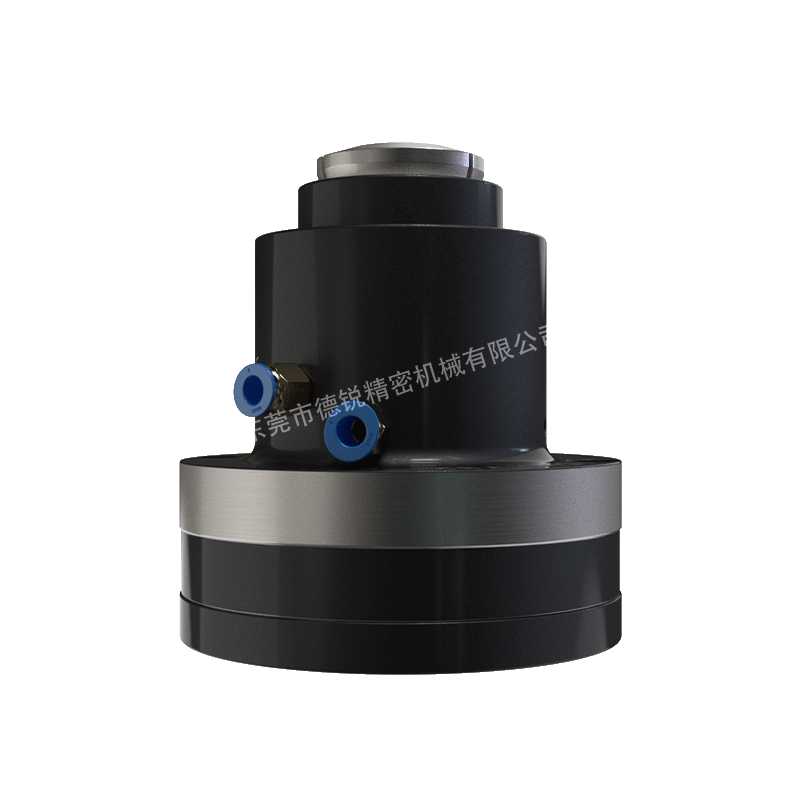

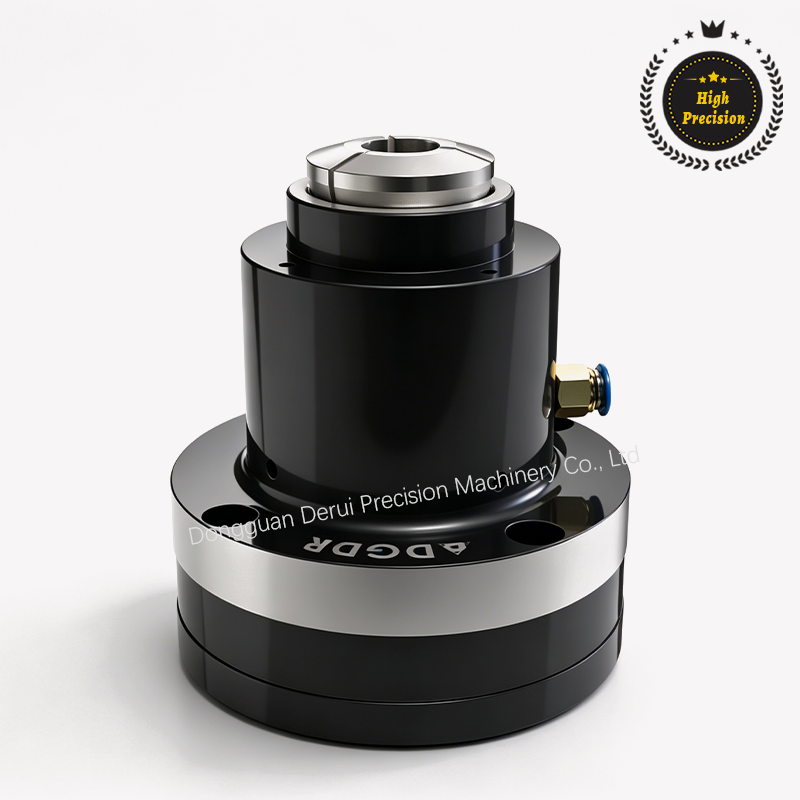

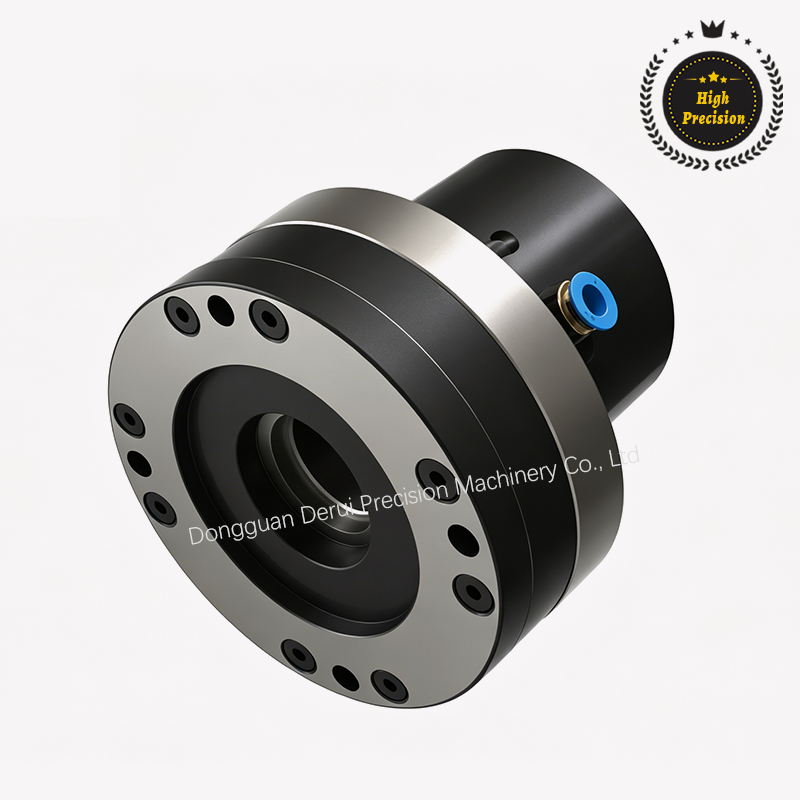

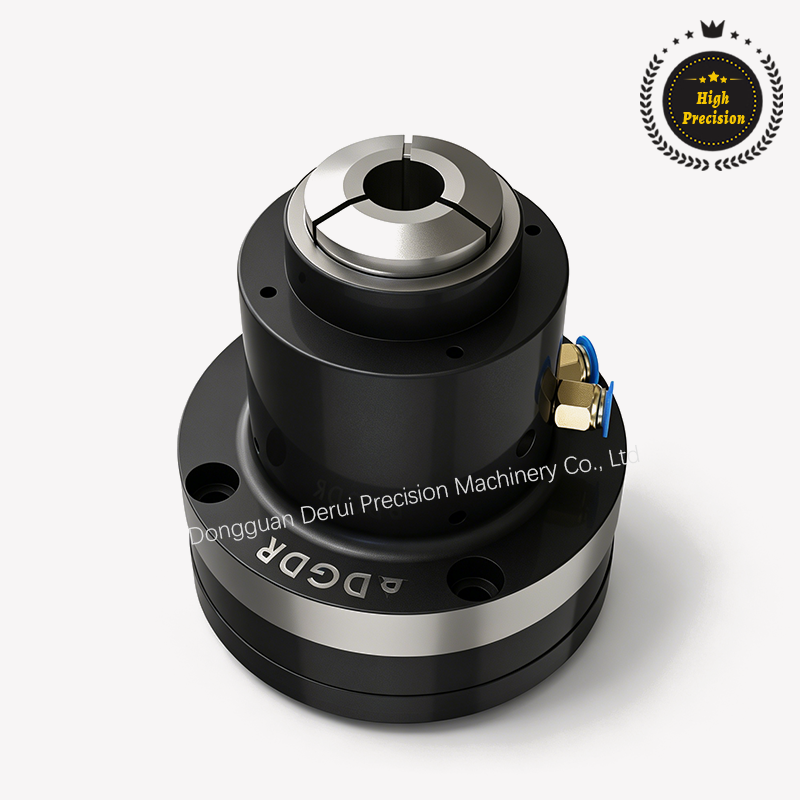

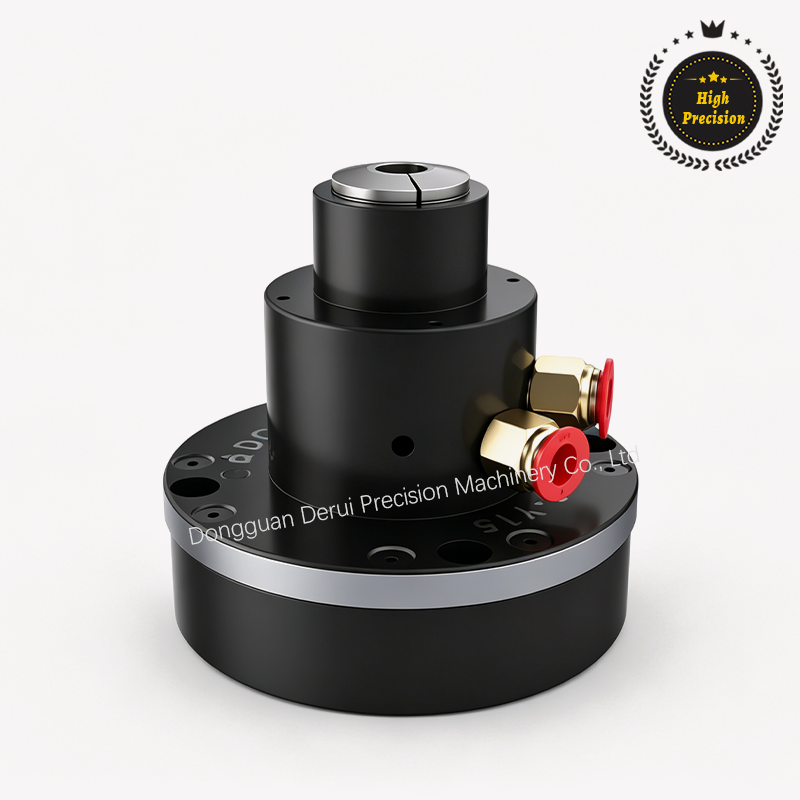

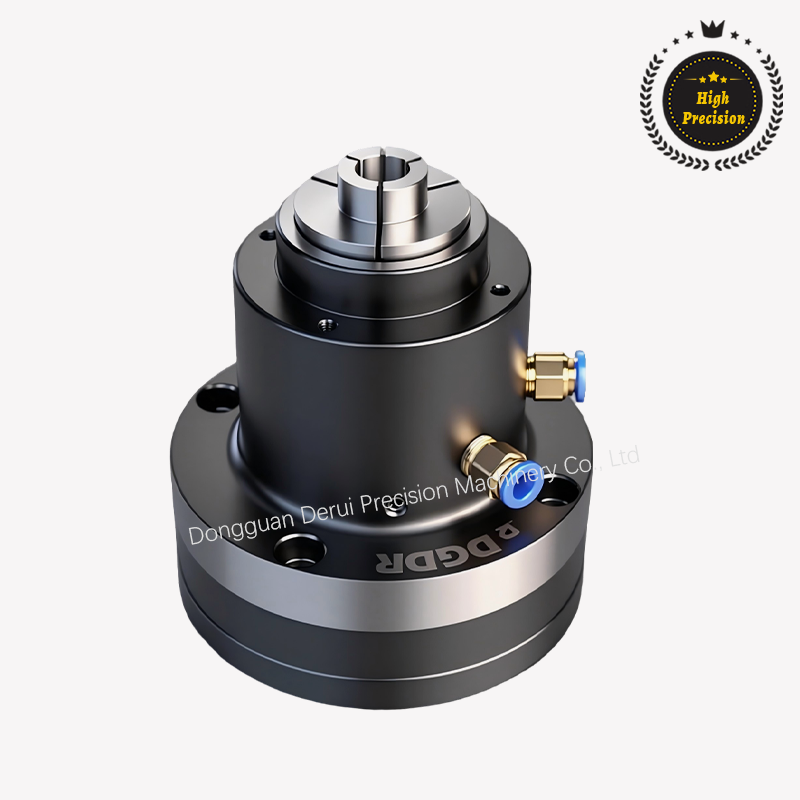

GHP/DHS High-Precision Fixed Pneumatic and Hydraulic Chuck - Rear-pull Type
-
Product characteristics
The high-precision pneumatic and hydraulic chuck holder is small in size and has a large through hole.
The chuck body is made of steel and has a large clamping force.
The repeat clamping accuracy is within 0.015 mm.

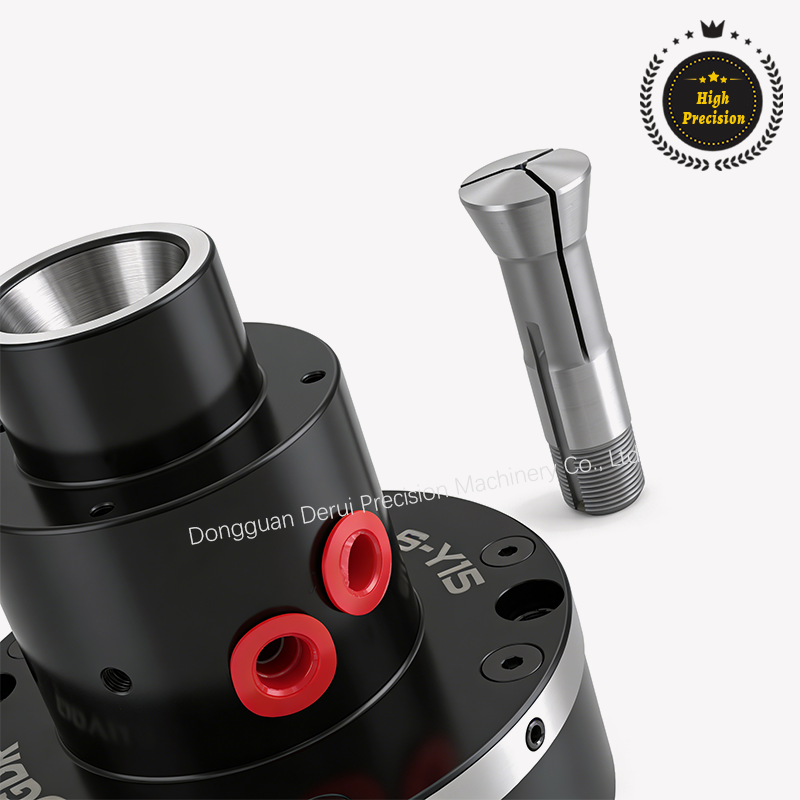

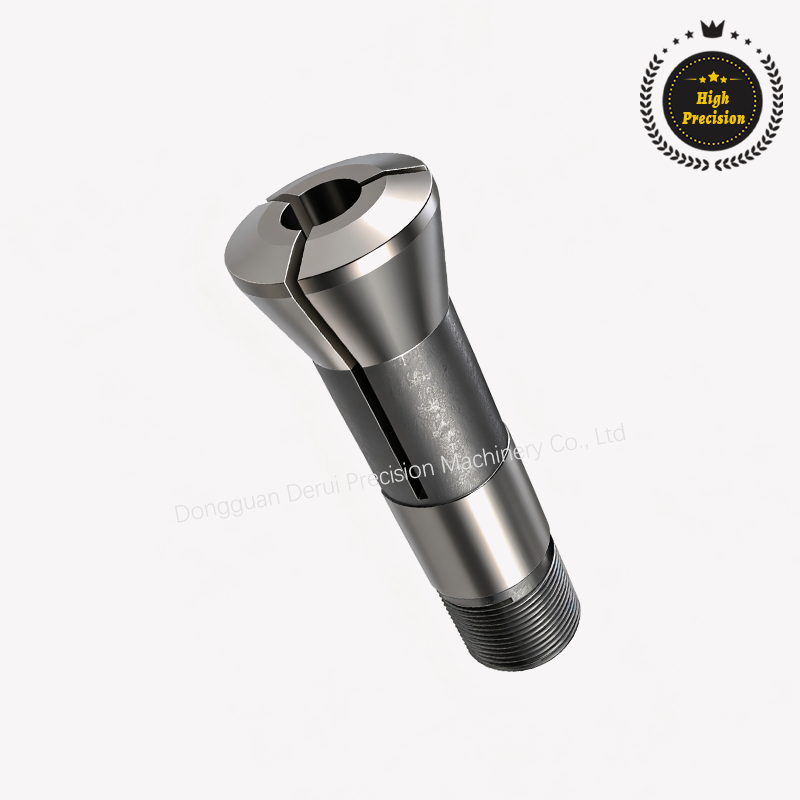

The collet can be replaced for different workpieces, and the maximum diameter of the through hole is 40 mm.
It is dustproof and waterproof (under the inflated state).
It is suitable for various drilling and milling worktables, processing such as drilling/tapping, assembly/welding.
-
Product advantages
Support customization.
One-year quality warranty.
Made in Taiwan, China.

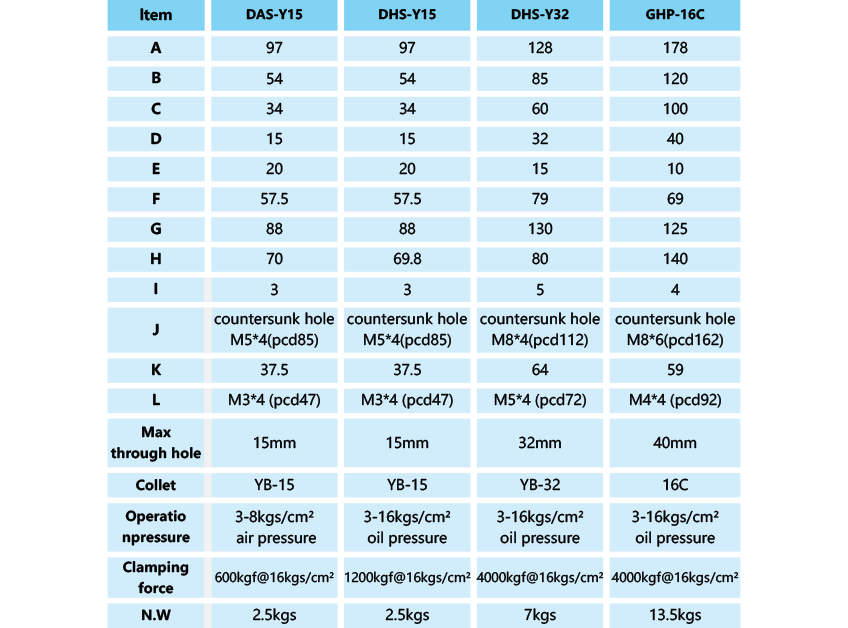

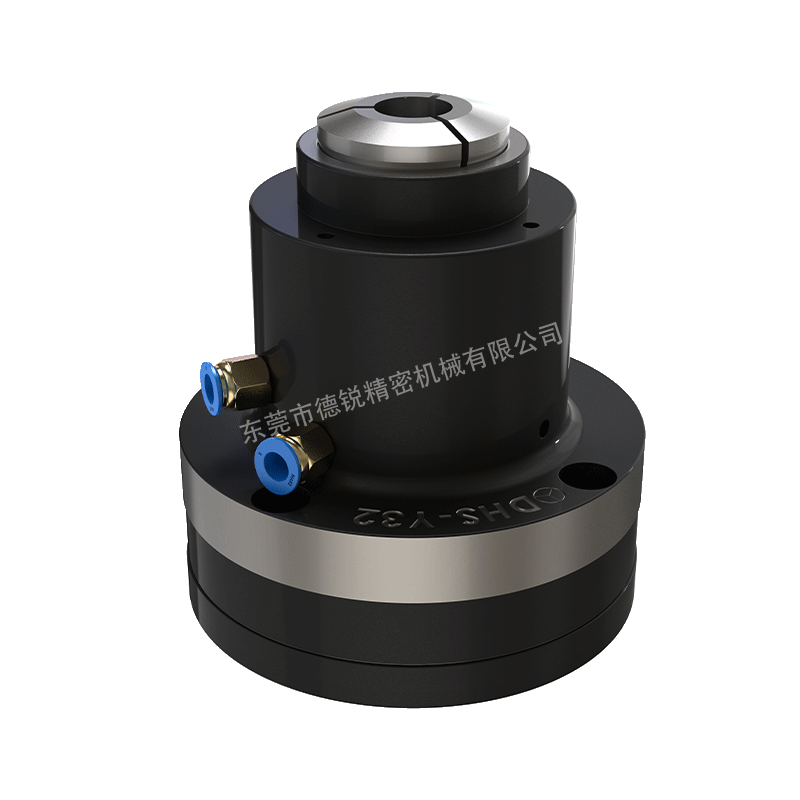

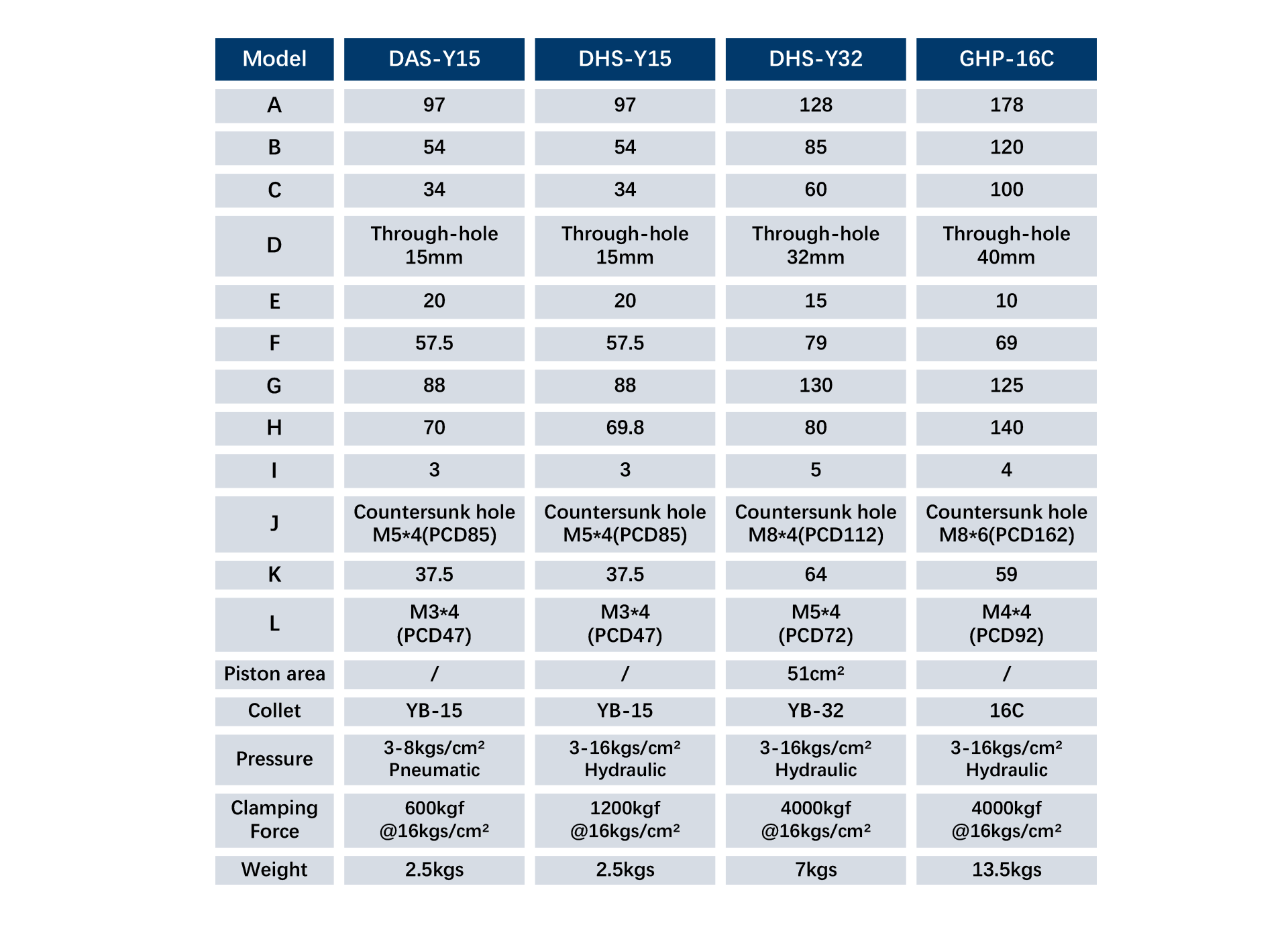

There are multiple models available for selection: DAS-Y15, DHS-Y15, DHS-Y32, GHP-16C.
