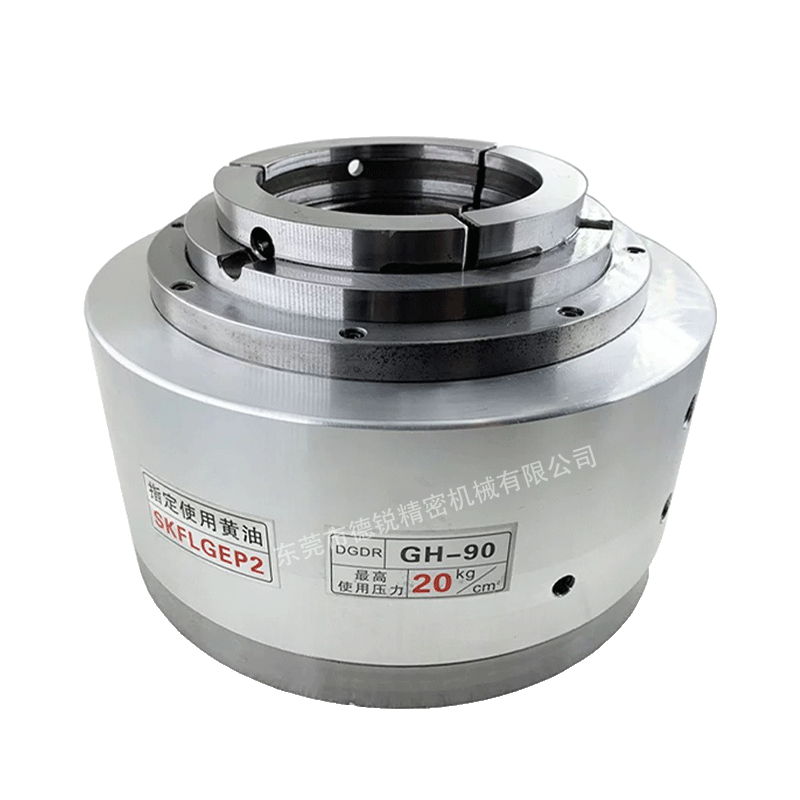

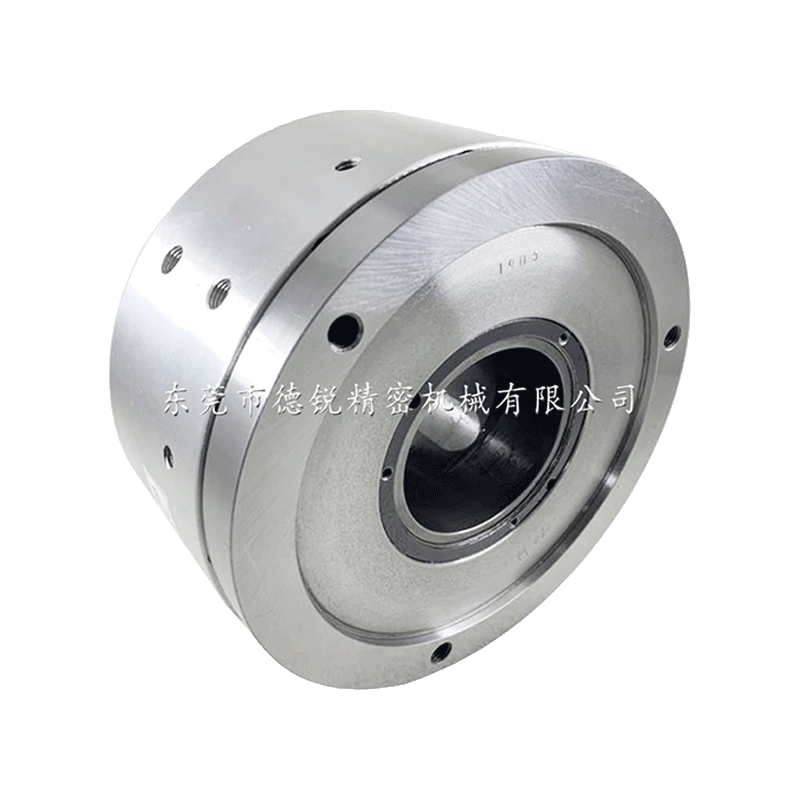

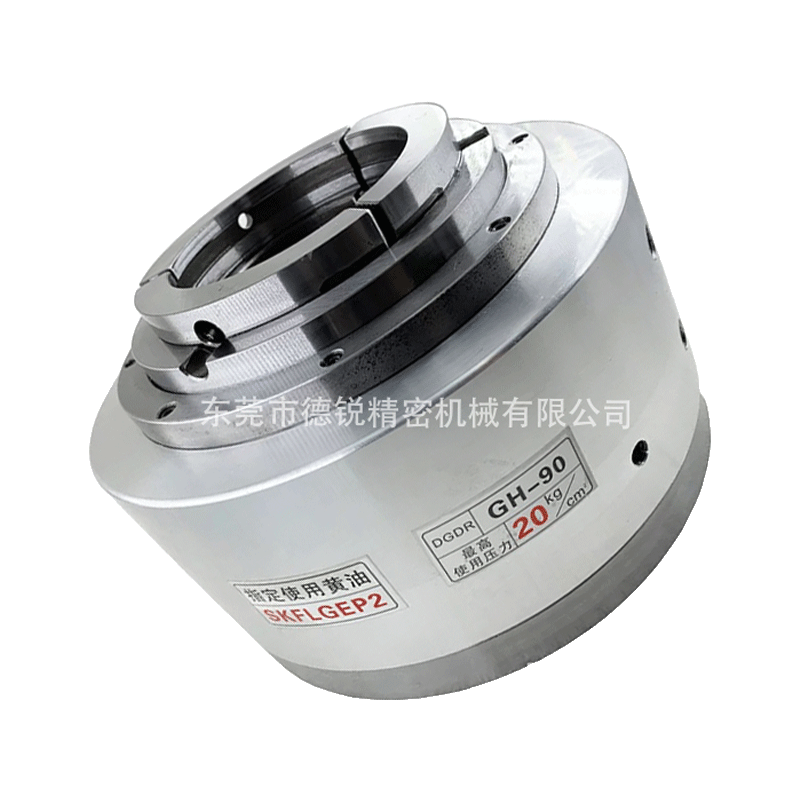

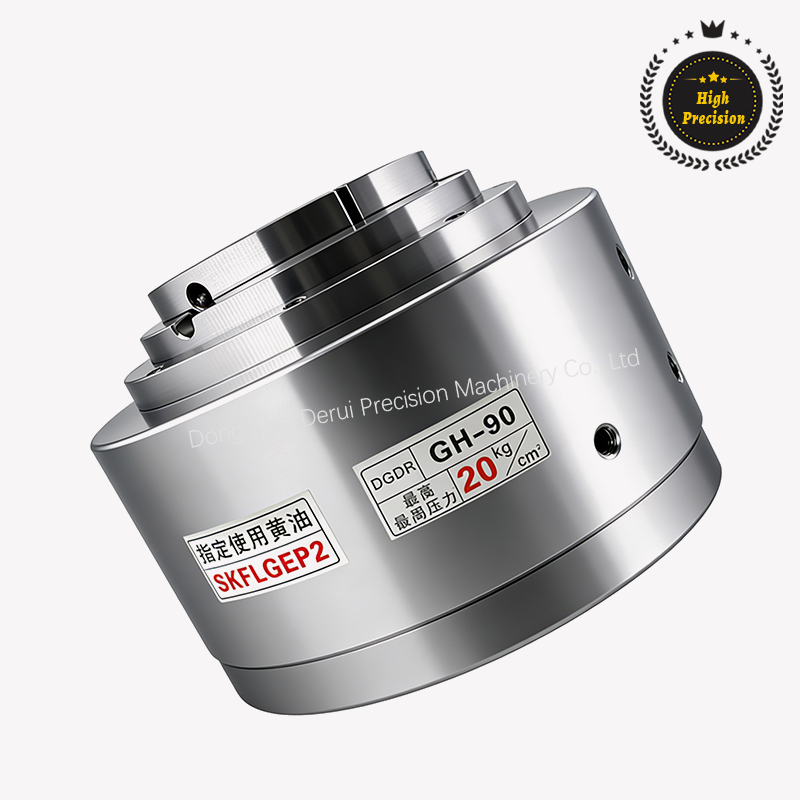

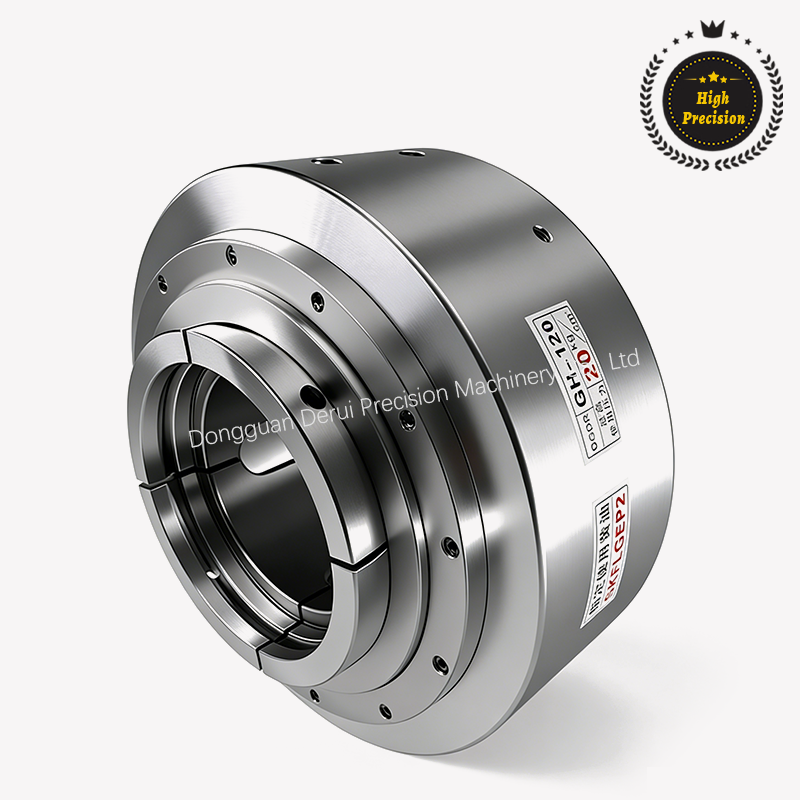

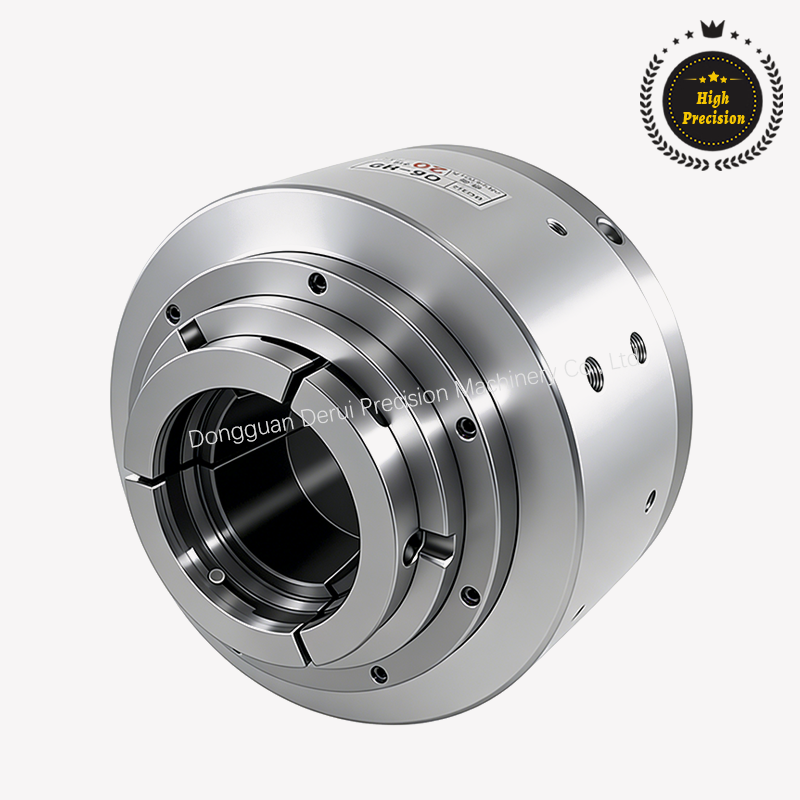

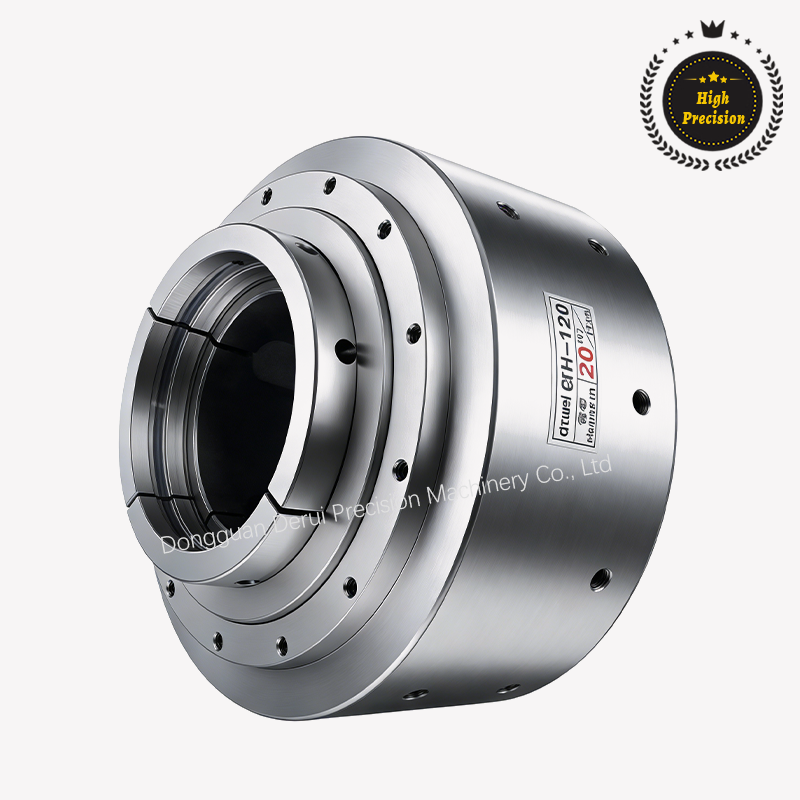

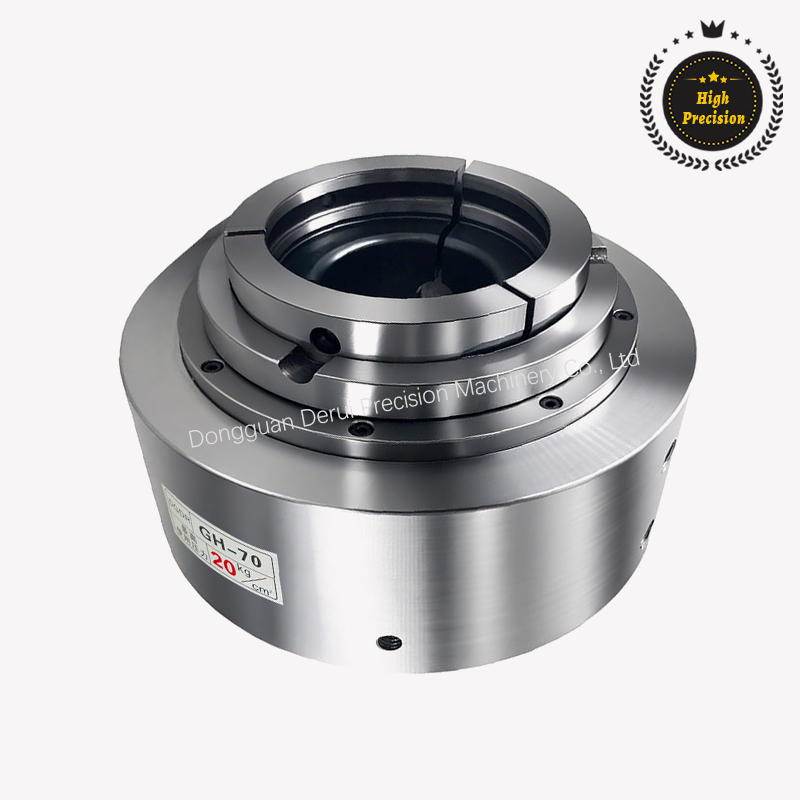

GH Secondary Jaw-Type Hydraulic Rotary Chuck
-
Product characteristics
Built-in rotary cylinder, eliminating the need for additional installation of a rotary hydraulic cylinder.
It has a large clamping force and stable performance.
It is easy to install and can quickly establish a working clamping system.
It has high work flexibility and the secondary jaws can be quickly replaced.
There is a central through hole (with a maximum through hole diameter of 200mm), and it supports rear feeding.
The maximum rotational speed is 1,800 revolutions per minute.
The clamping repeatability accuracy is within 0.05mm.
It has a forced opening function and no material jamming occurs.
Cutting fluid should not be directly sprayed towards the chuck.
It is suitable for retrofitting traditional lathes into automated or semi-automated ones (such as automatic equipment like sealing machines, punching machines, etc.).
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
