Product characteristics

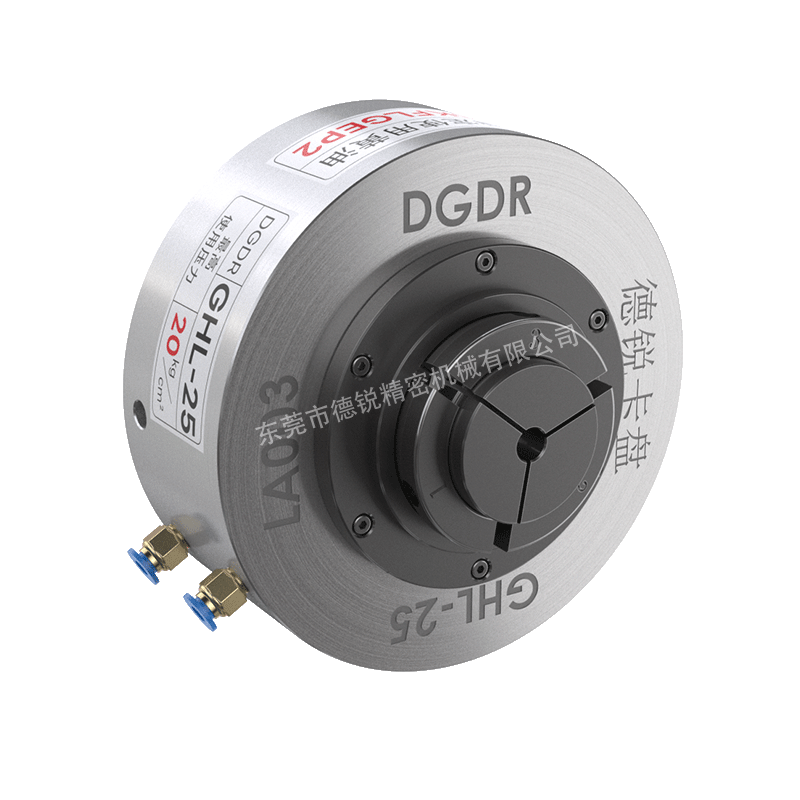

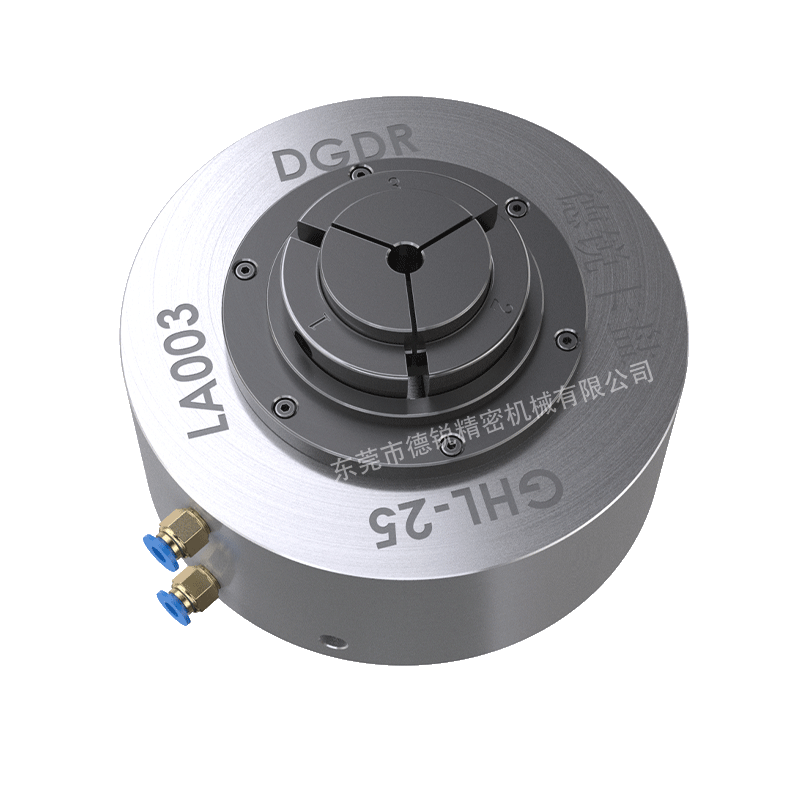

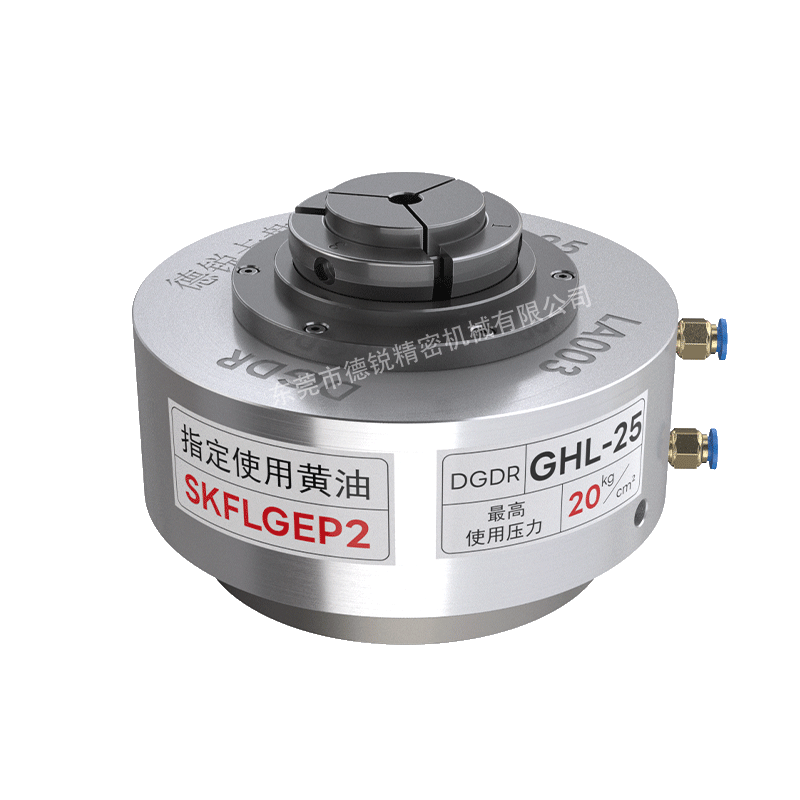

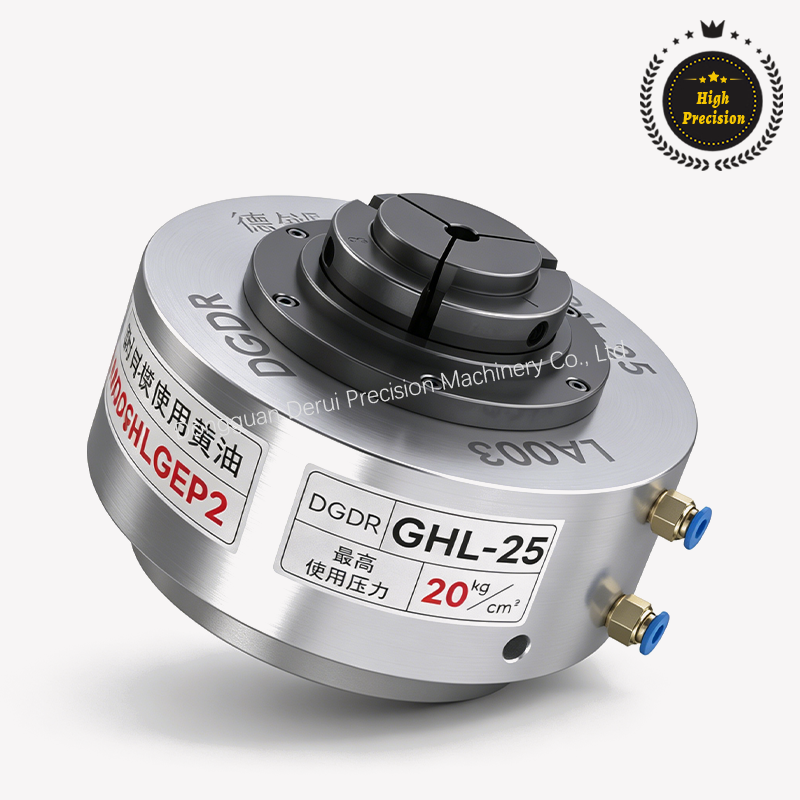

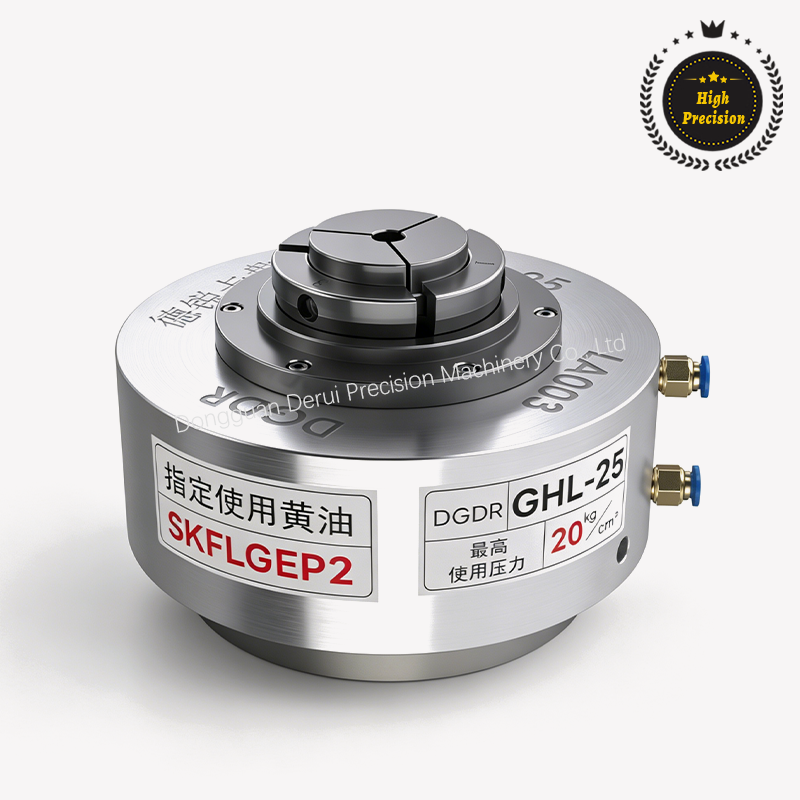

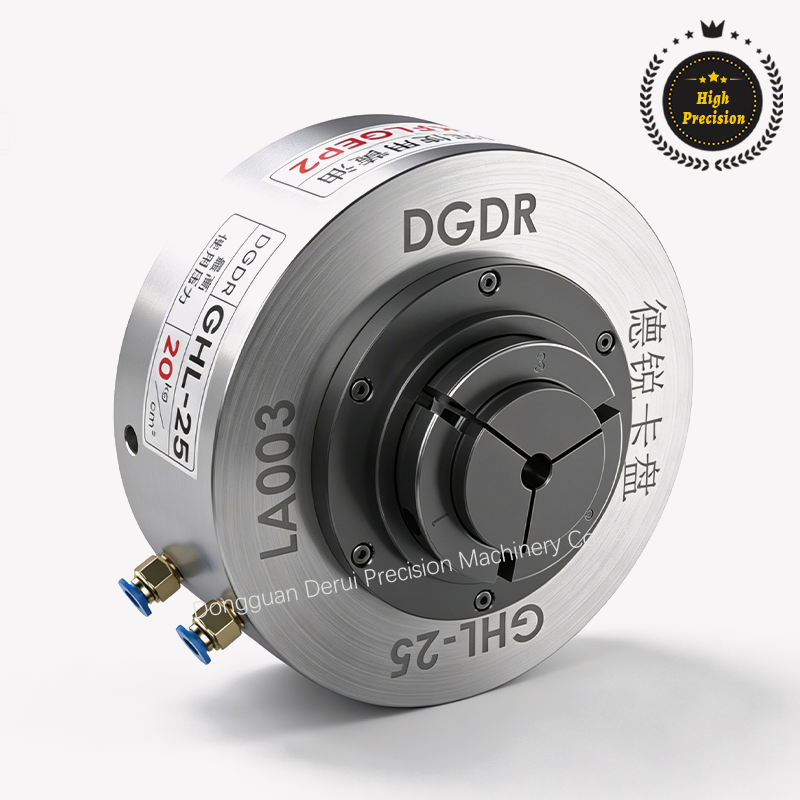

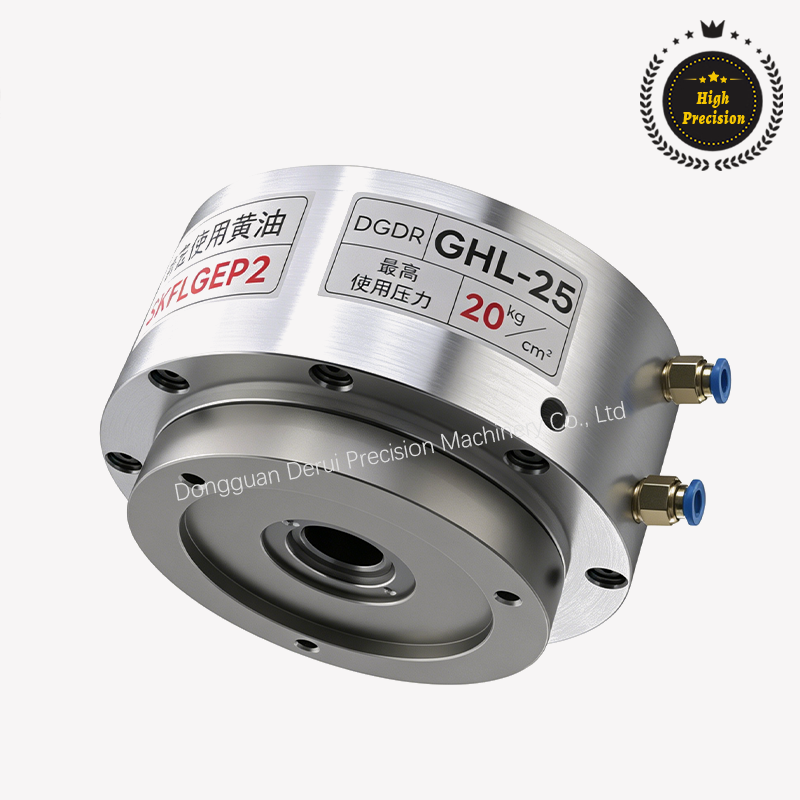

The design features a front-mounted hydraulic cylinder, eliminating the need for additional installation of a rotary cylinder.
It has a forced material discharge design, ensuring 100% no material jamming and is easy to install.
It enables quick clamping. With an enlarged cylinder, it has a large clamping force.
It has high work flexibility. The secondary jaws can be quickly replaced, and it can clamp workpieces of various special shapes.

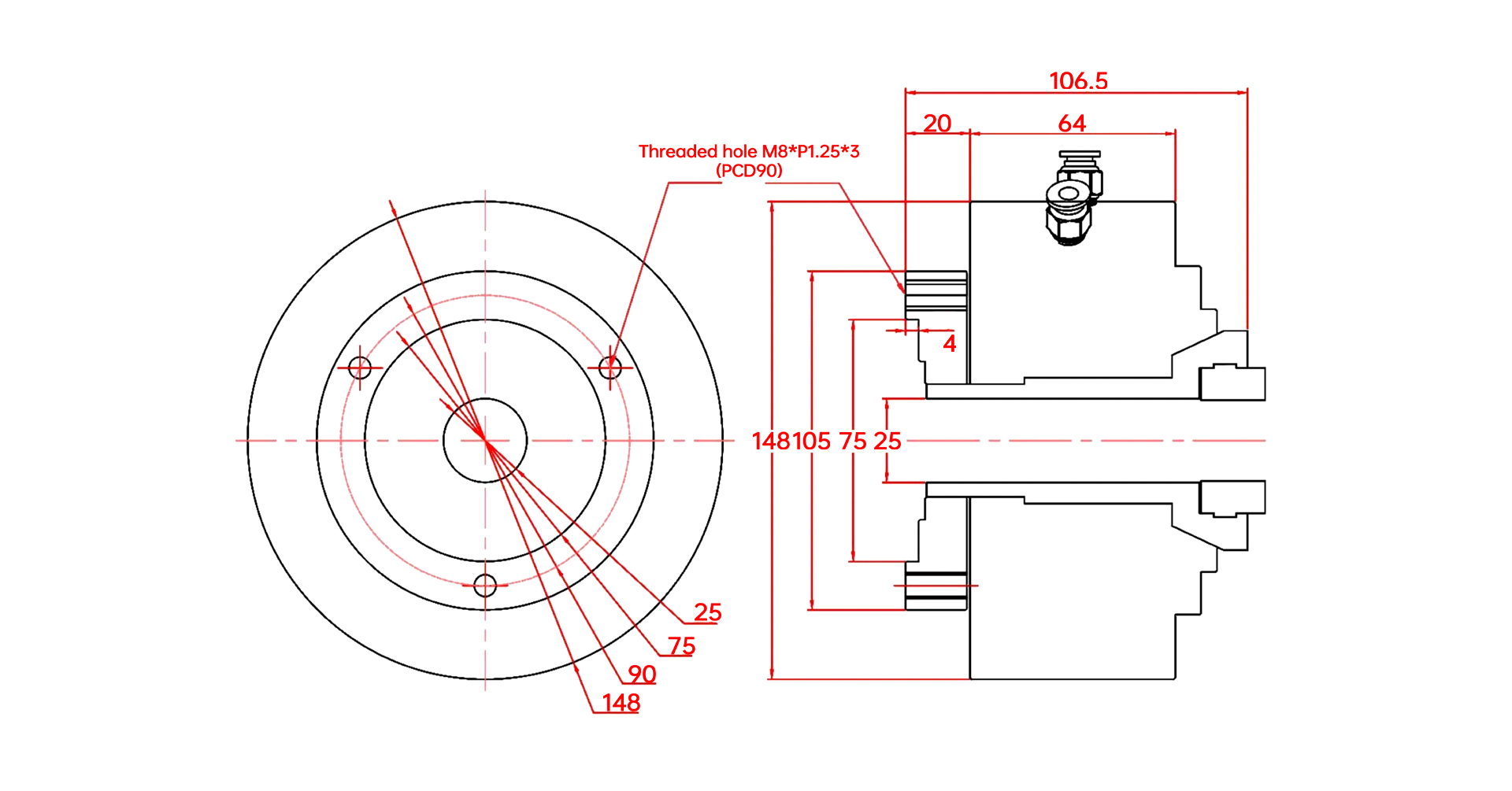

The chuck is designed with a central through hole and is coordinated with the large stroke design of the automatic feeding system.

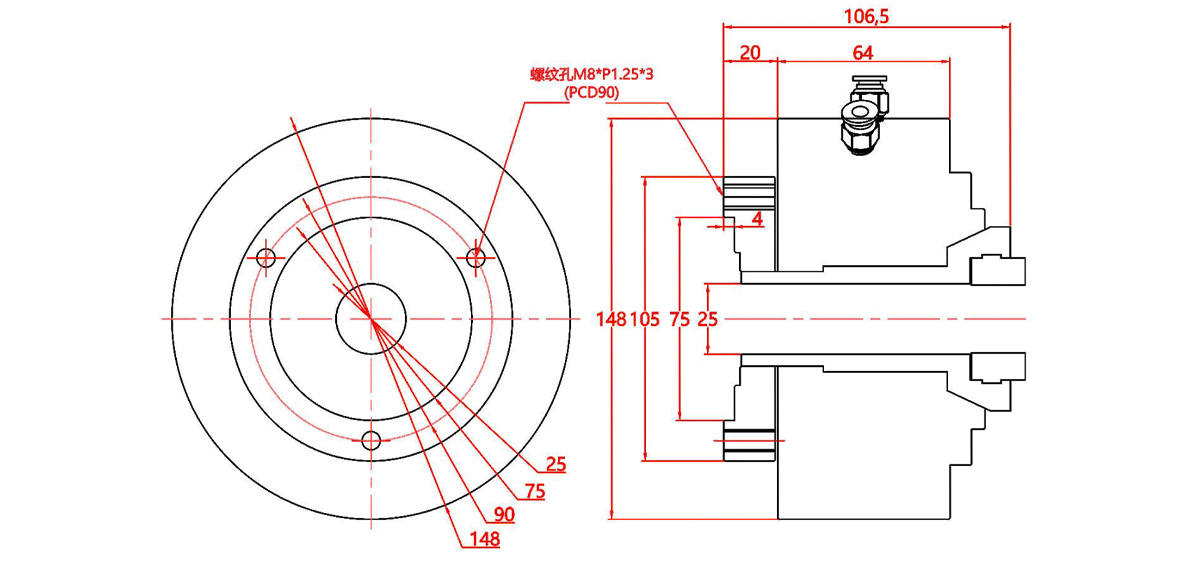

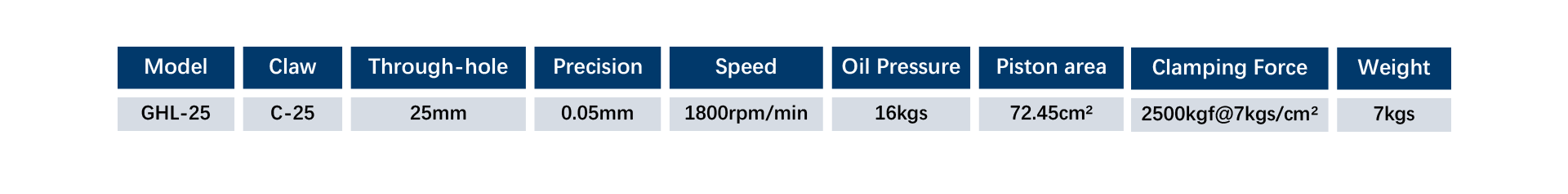

The opening stroke is 2.5mm, and the through hole can clamp up to 25mm.
It allows continuous loading and unloading, resulting in high productivity and is suitable for mass production.
Cutting fluid should not be directly sprayed towards the chuck.
