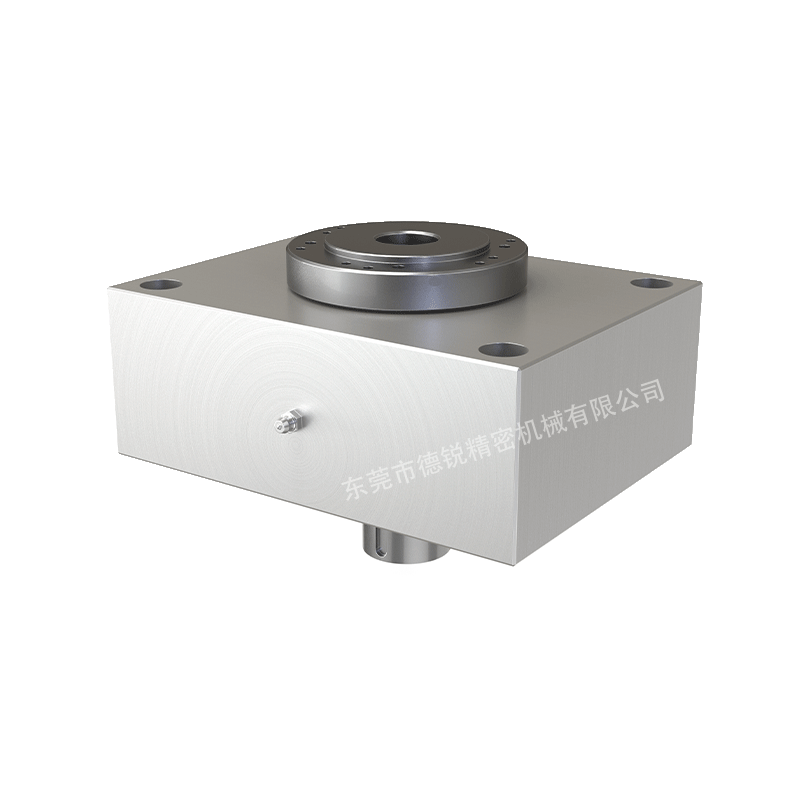

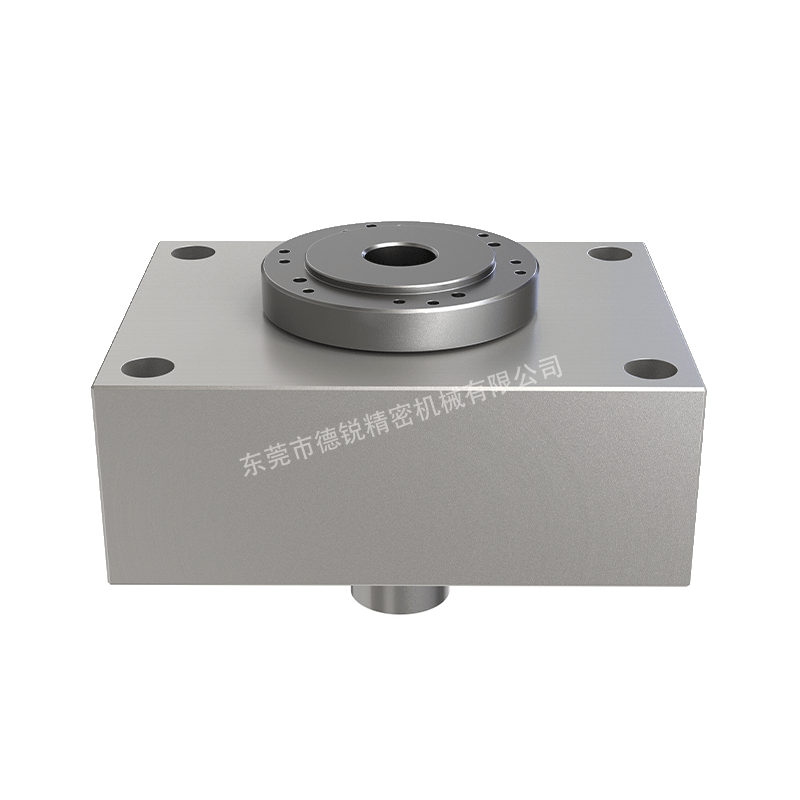

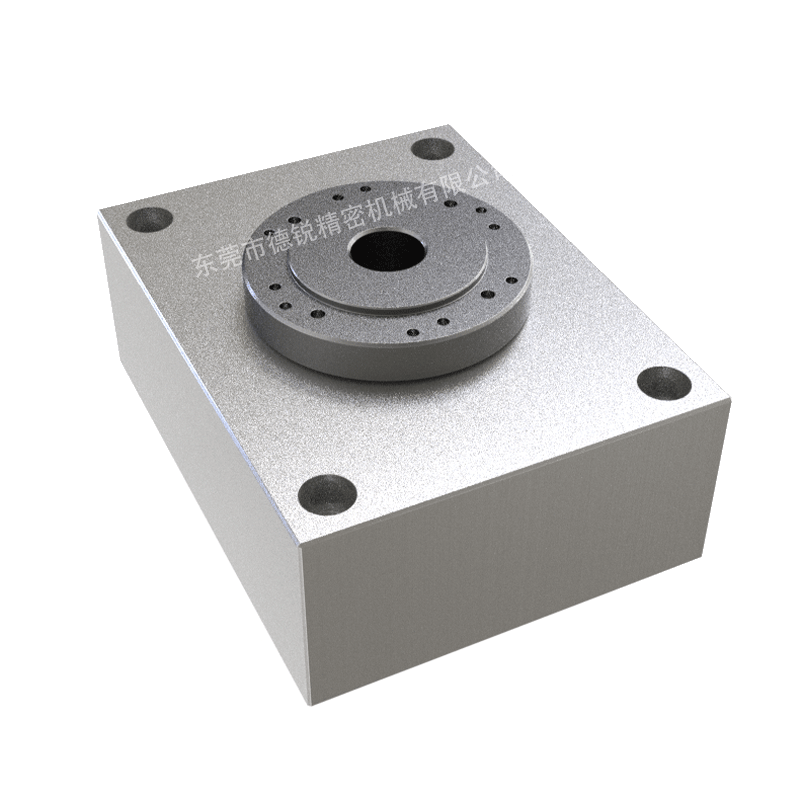

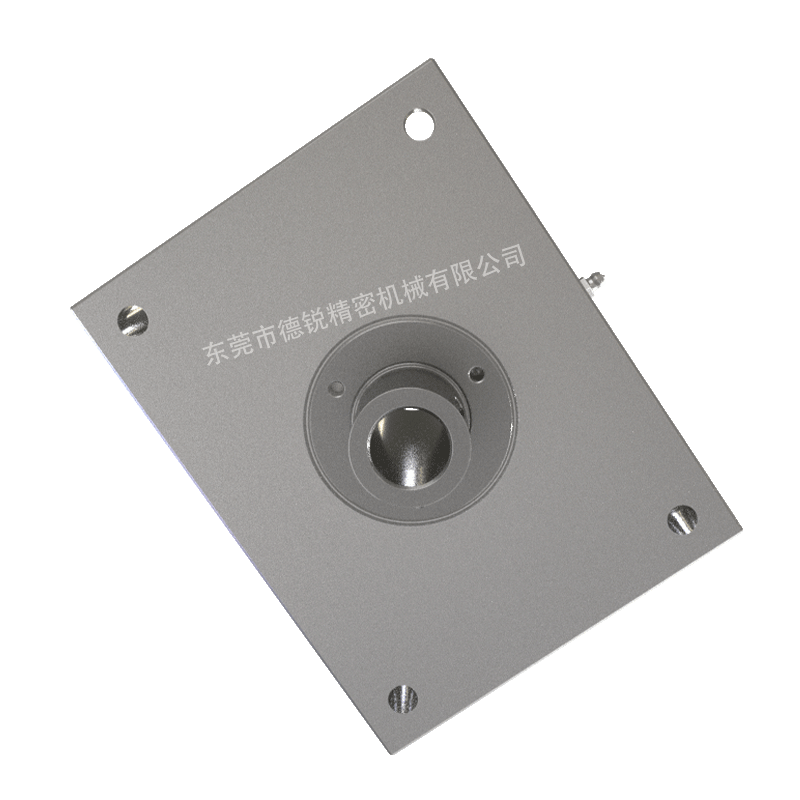

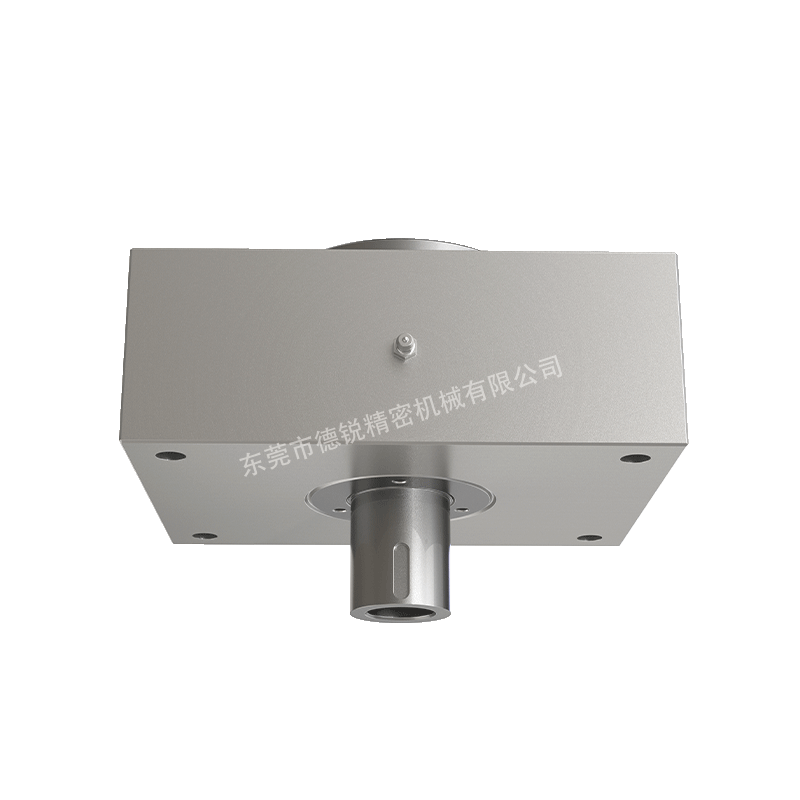

DRS High-precision Rotary Spindle Integration (Vertical Installation)
-
Product characteristics
It is small in size and has a large through hole.
It features high precision, with the spindle rotation accuracy within 0.005mm.
It has a high rotational speed, and the maximum rotational speed is 3,500 revolutions per minute.
It has a large through hole, and the maximum diameter of the through hole is 46mm.
It is driven to rotate by being connected to a motor through synchronous pulley or gear transmission, which is convenient and simple.
It can be paired with different chucks and is applied in various high-precision processing fields.
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
