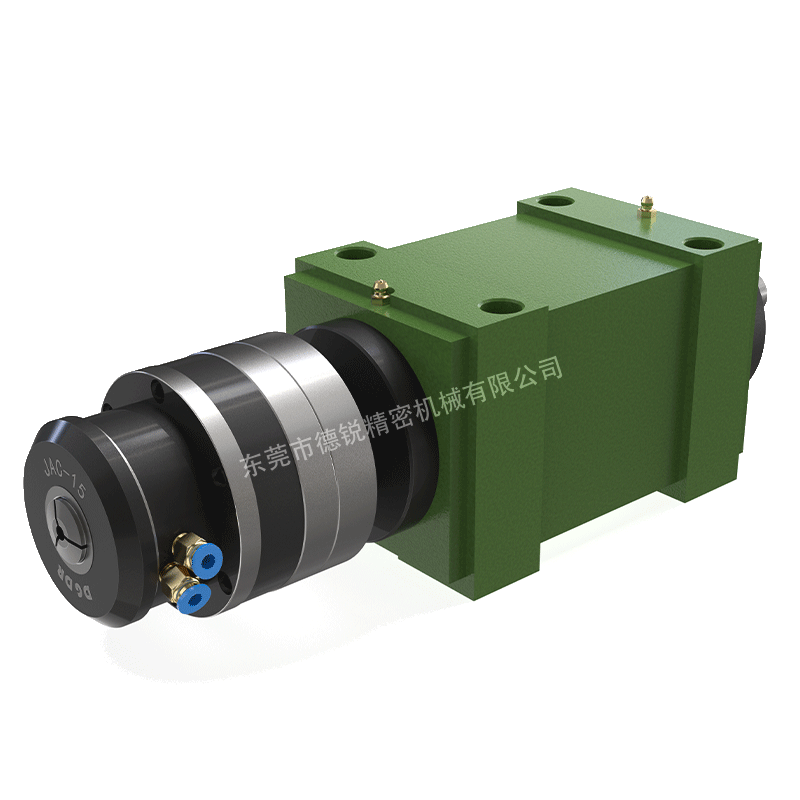

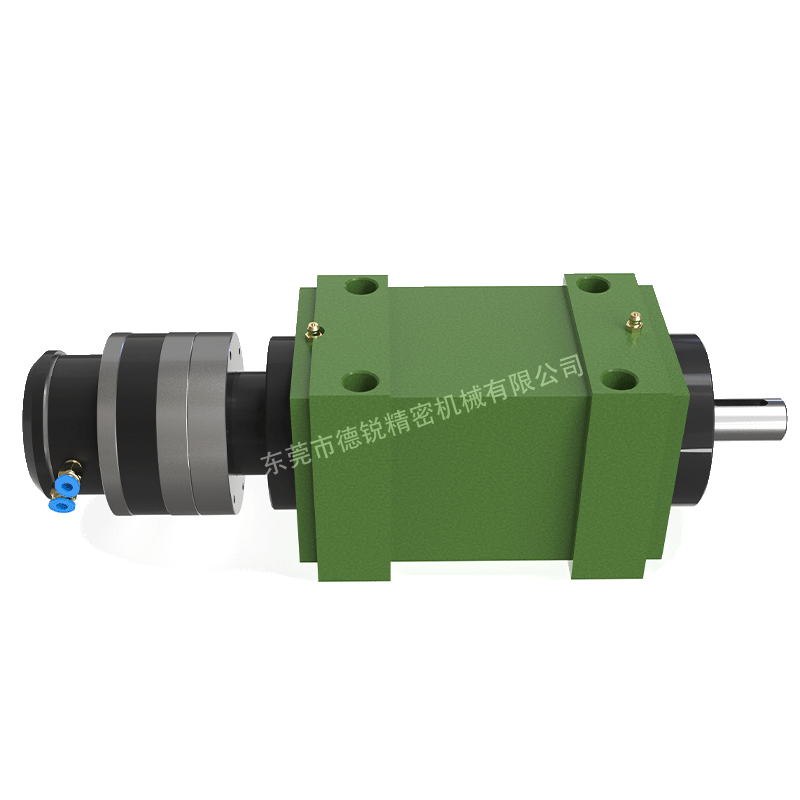

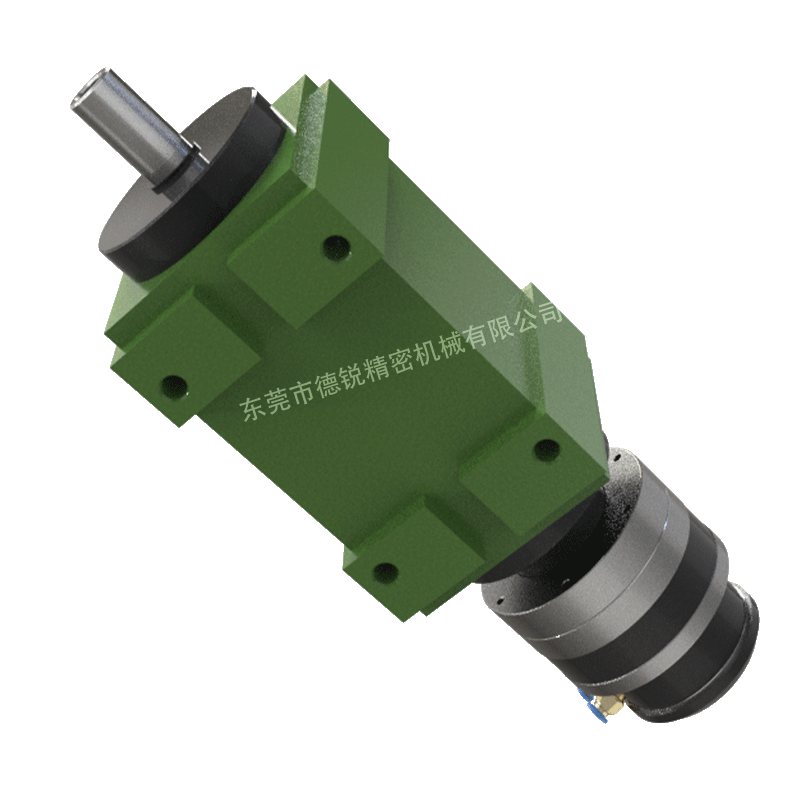

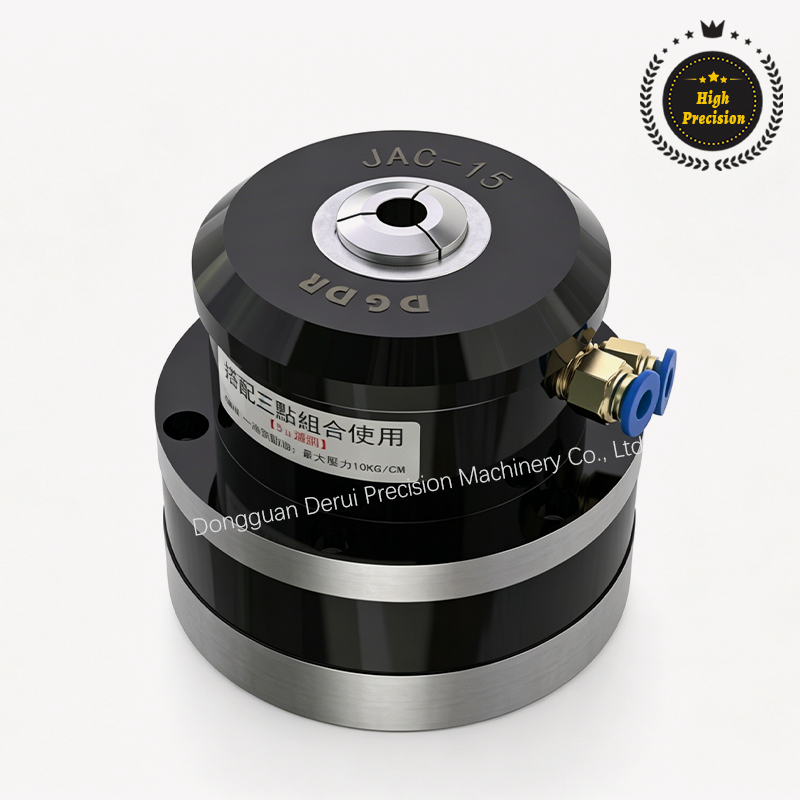

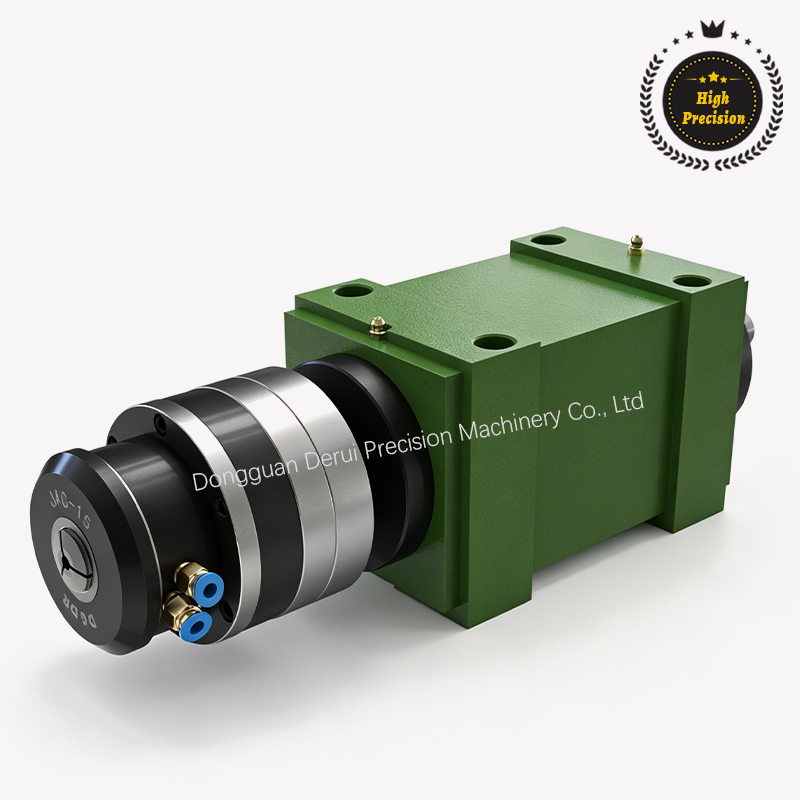

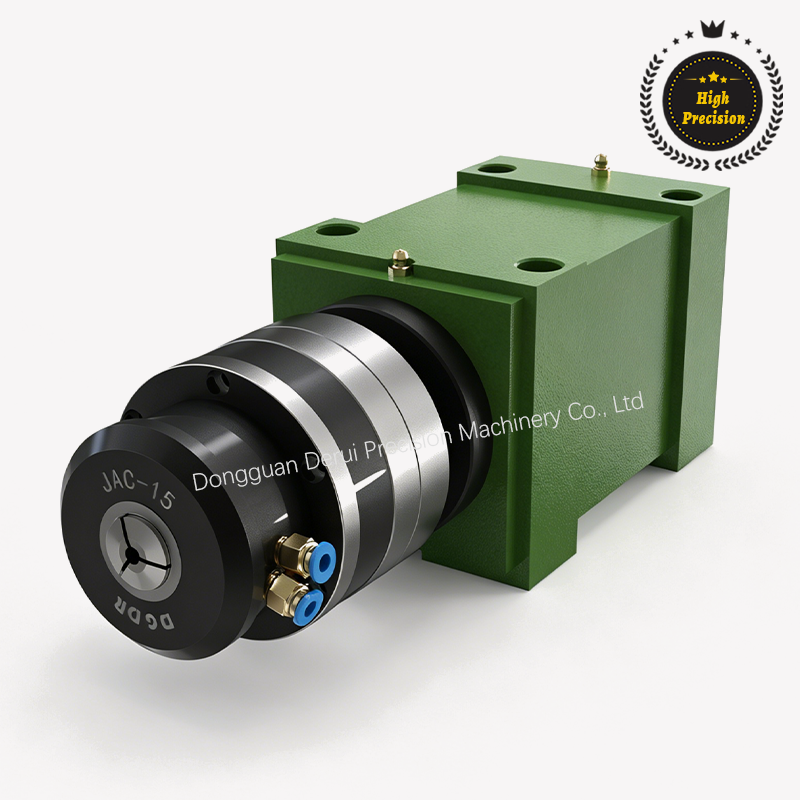

JAC+S Small High-speed Spindle
-
Product characteristics
It is small in size and has a large through hole.
The maximum rotational speed is 3,500 revolutions per minute.
The clamping repeatability accuracy is within 0.03mm.
The maximum diameter of the through hole is 65mm, and customization of larger through holes is supported.

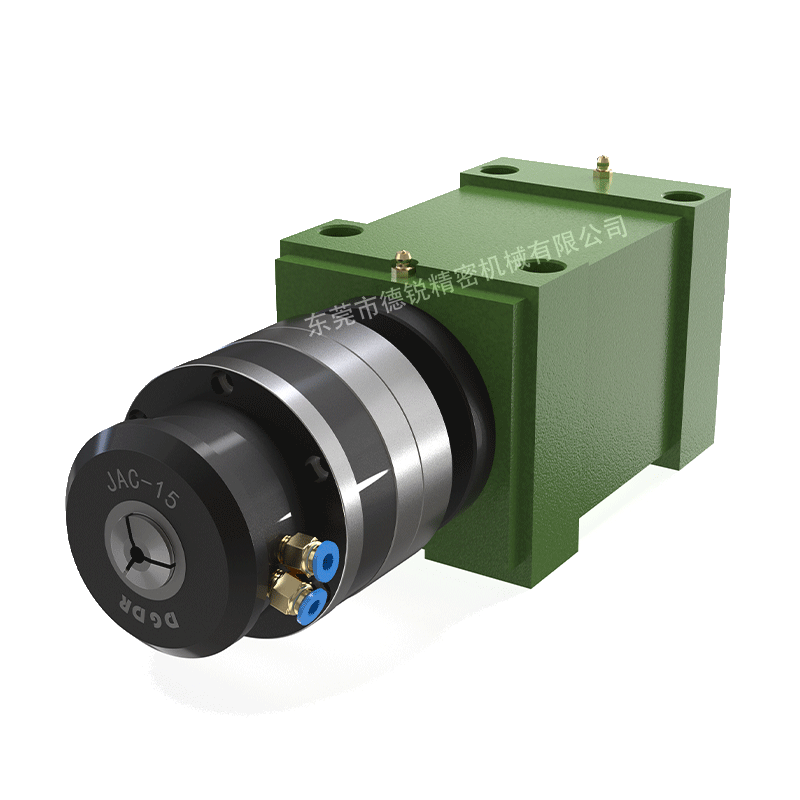

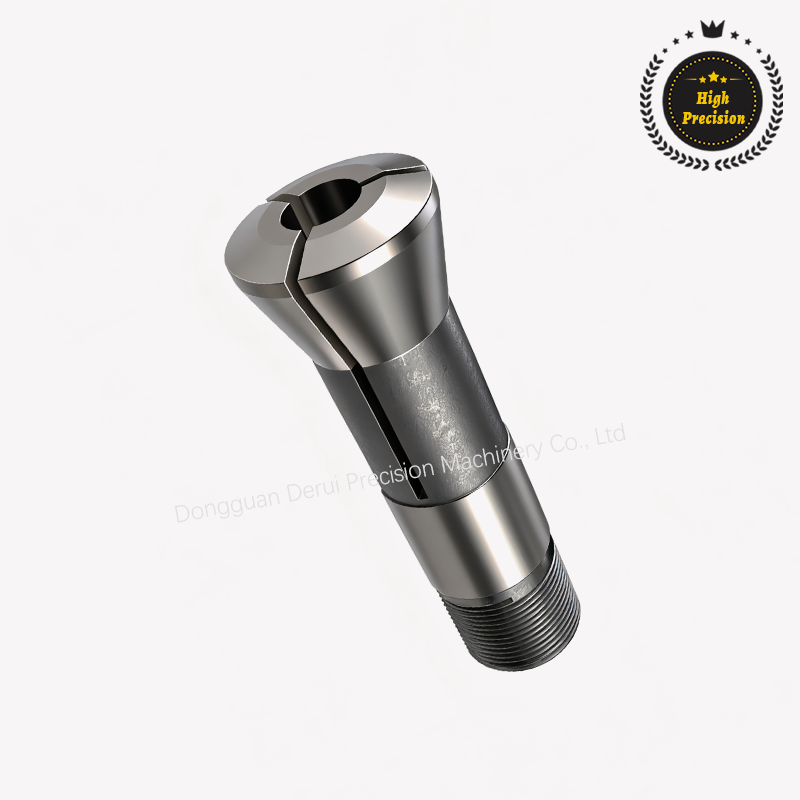

The collet can be changed for different workpieces.
There is no displacement when pushing forward for clamping.
It is dustproof and waterproof (under the inflated state).

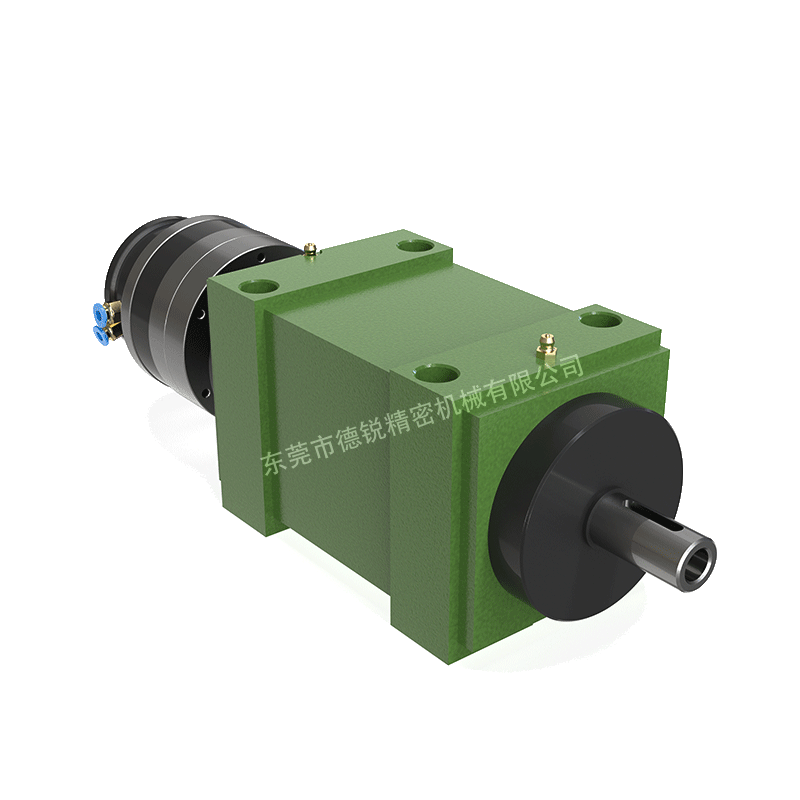

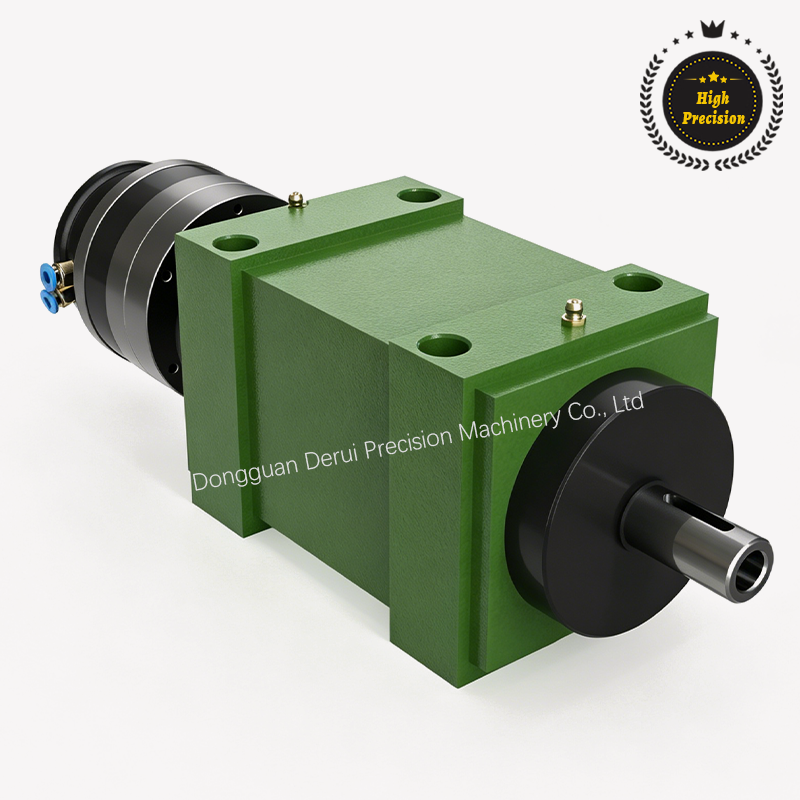

The rear transmission can be customized (such as keyway, gear, synchronous pulley, etc.).
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
