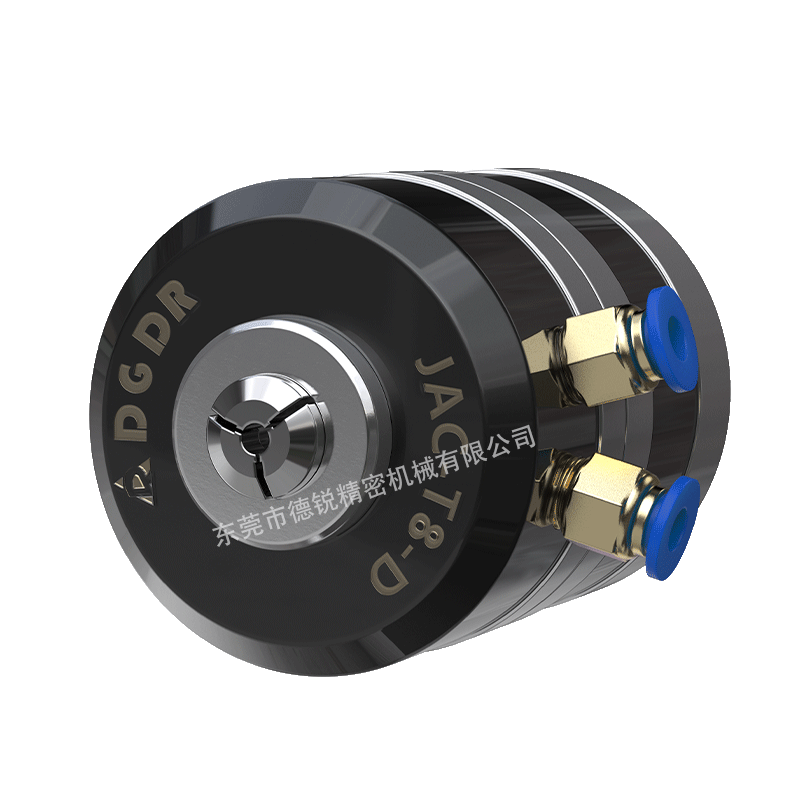

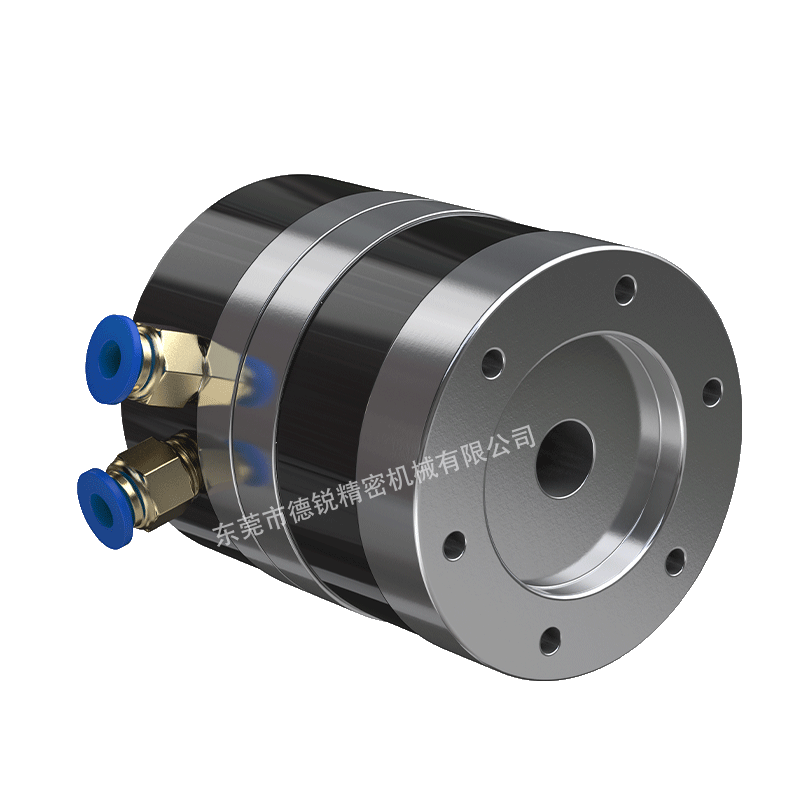

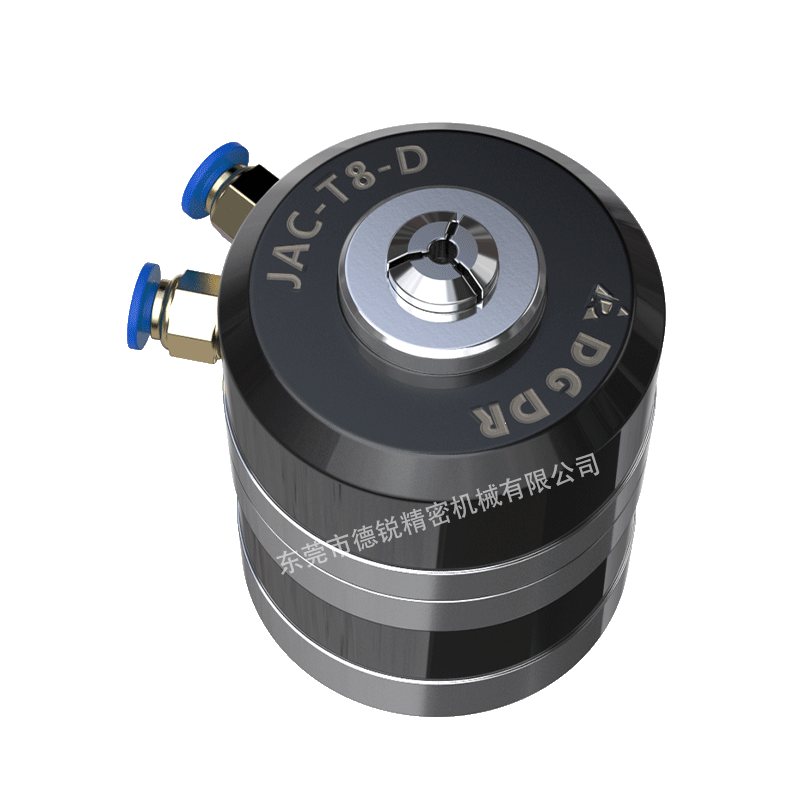

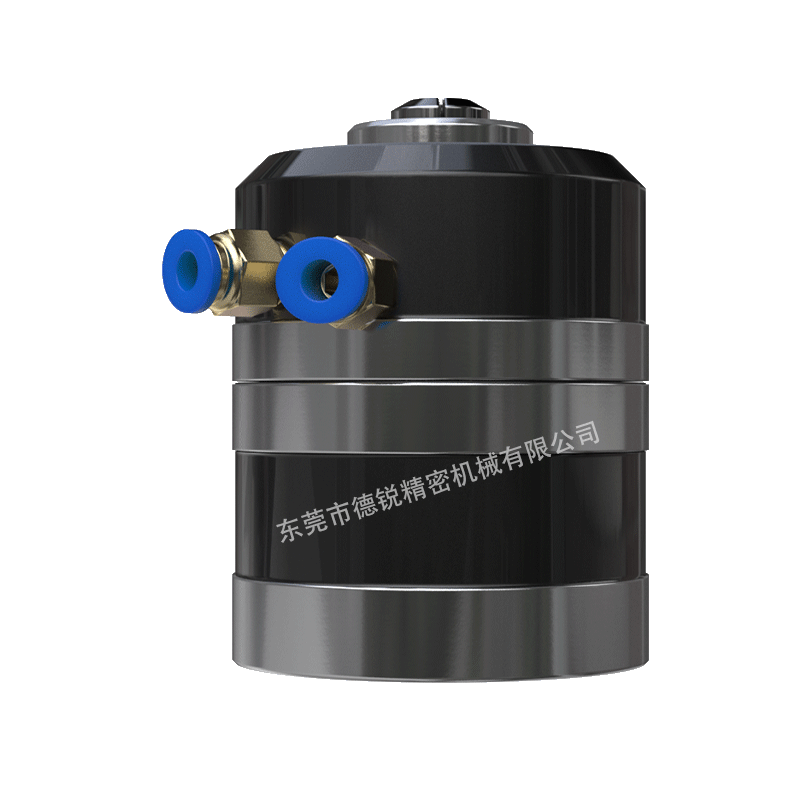

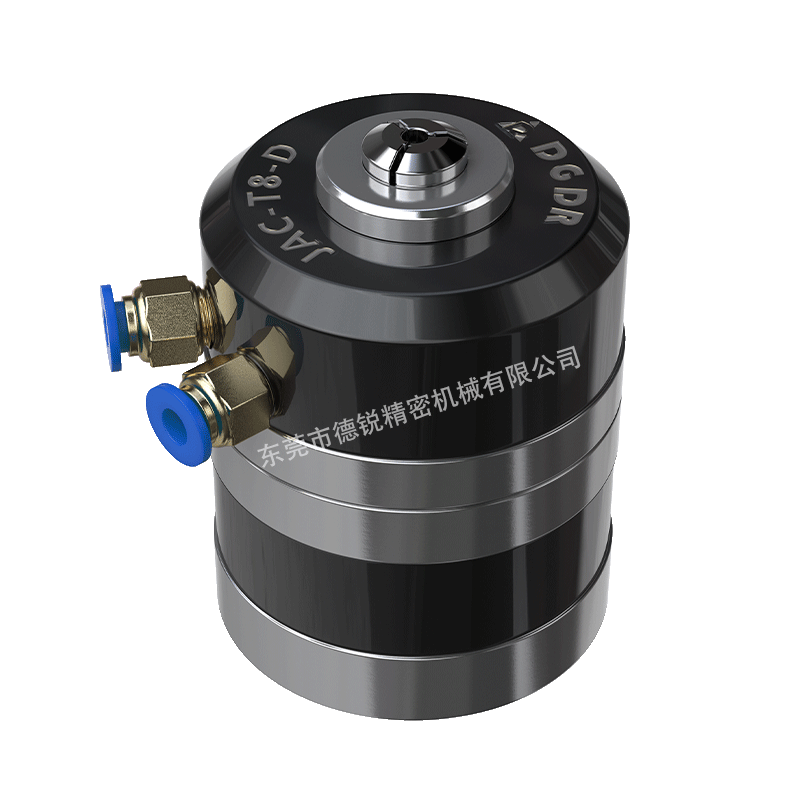

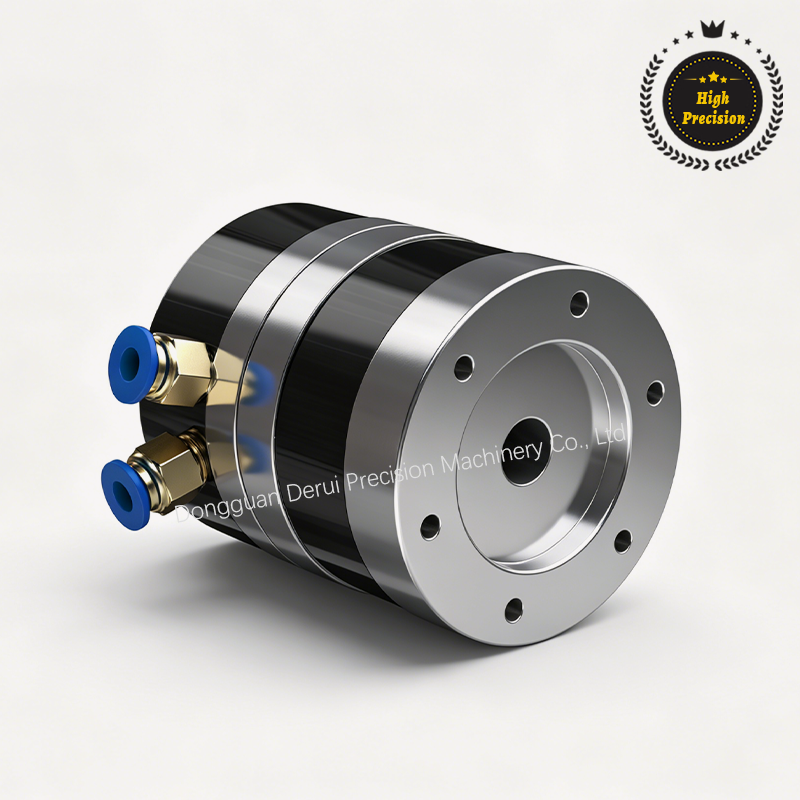

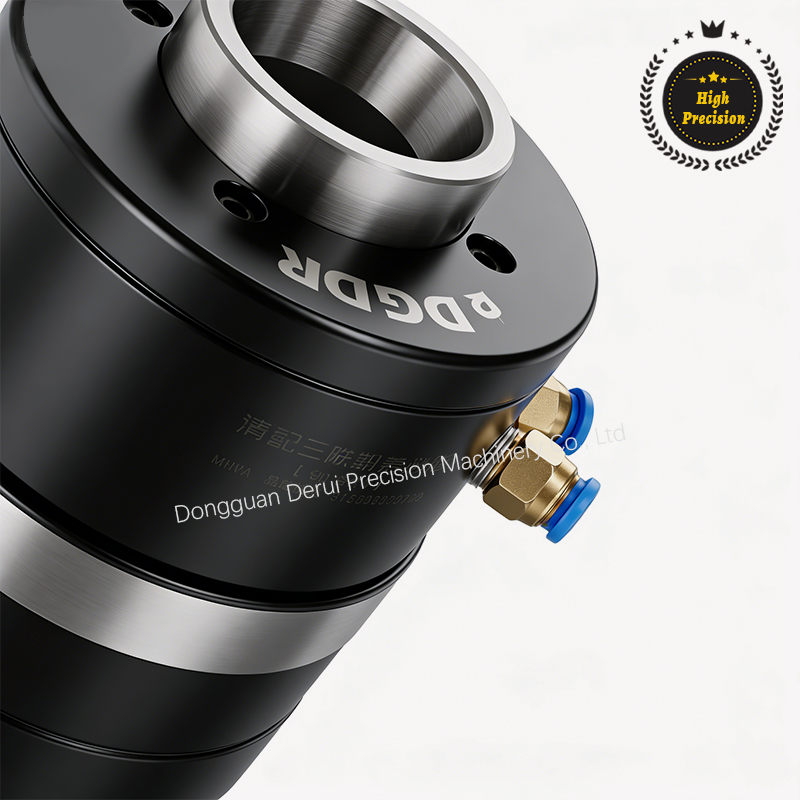

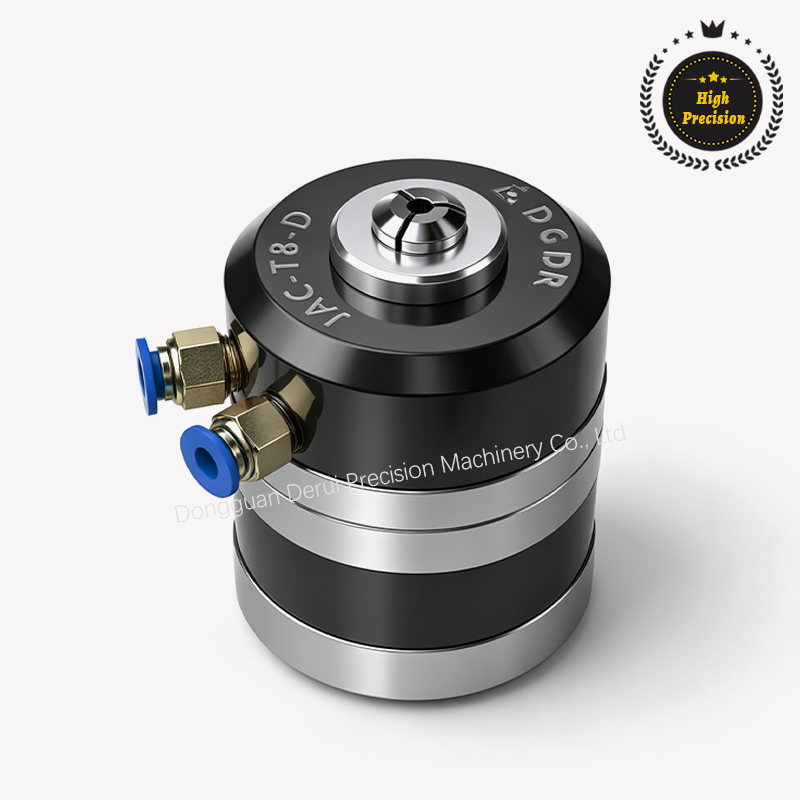

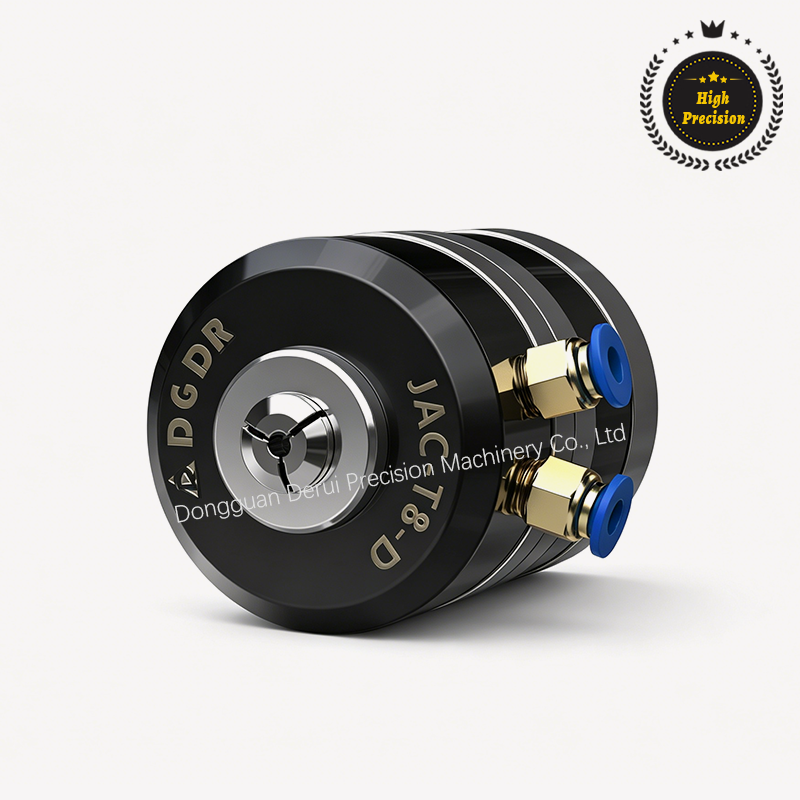

JAC-D Small Mini High-speed Pneumatic Rotary Chuck | Pneumatic Chuck
-
Product characteristics
The pneumatic chuck has a small outer diameter for installation and its chuck body is made of steel.
The maximum rotational speed is 3,500 revolutions per minute.
The accuracy of the pneumatic chuck body is within 0.01mm.
The repeat clamping accuracy is within 0.025mm.
There is a built-in rotary cylinder inside the chuck.
There is no need to install an additional rotary oil cylinder or oxygen cylinder.

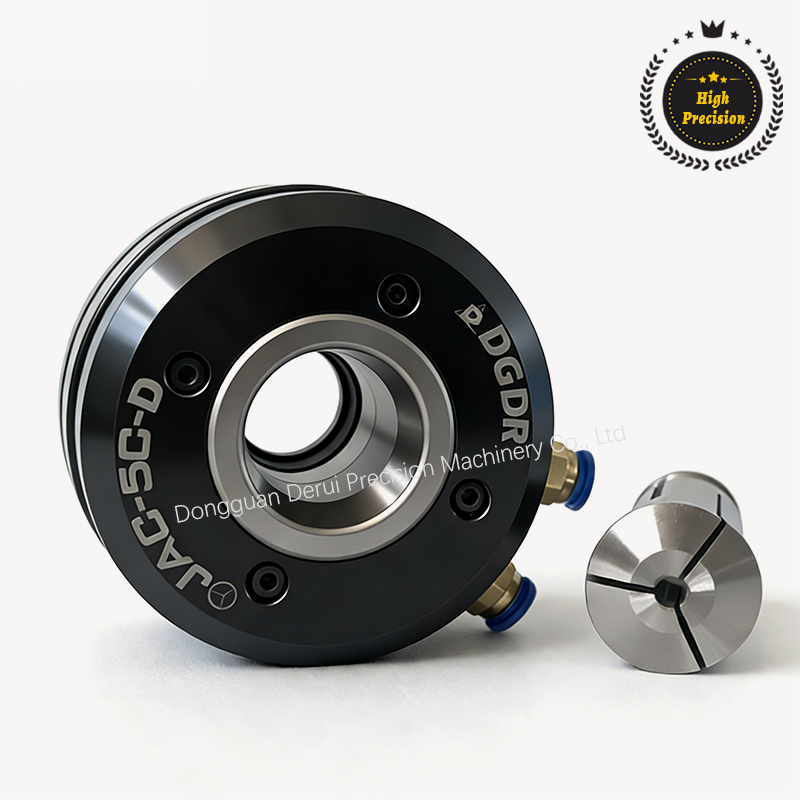

The maximum diameter for clamping through the hole is 25mm, and different collets can be replaced for different workpieces.
It has a dustproof and waterproof design (under the inflated state).
It is widely used in various specialized automatic machines.
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
