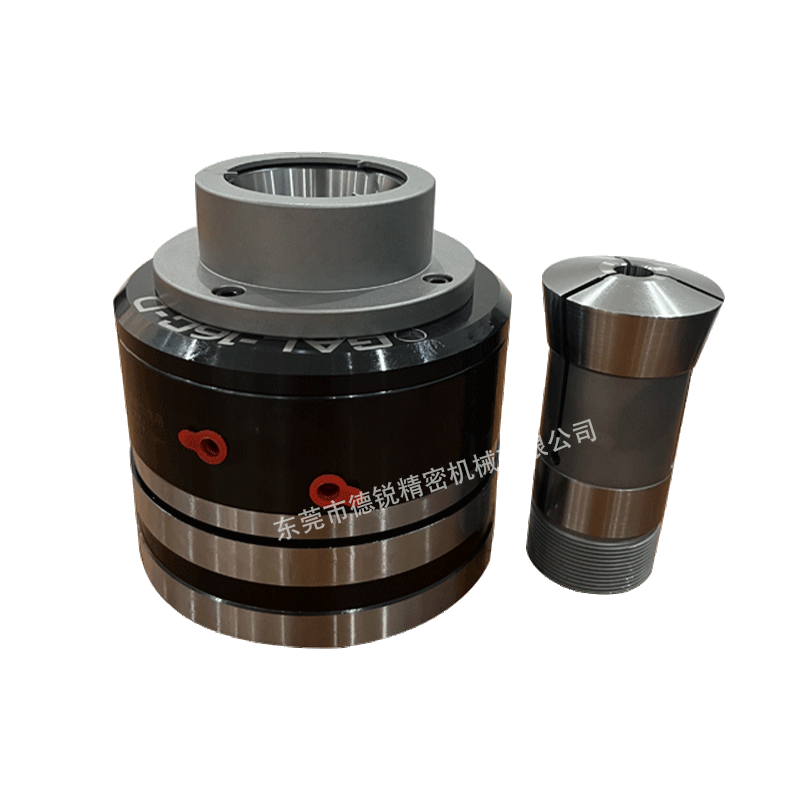

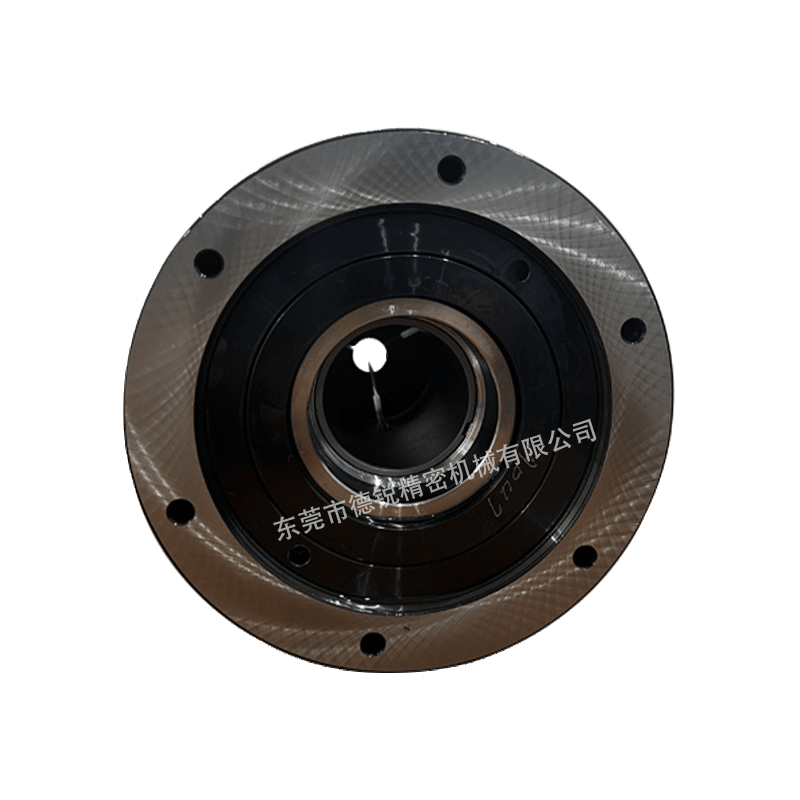

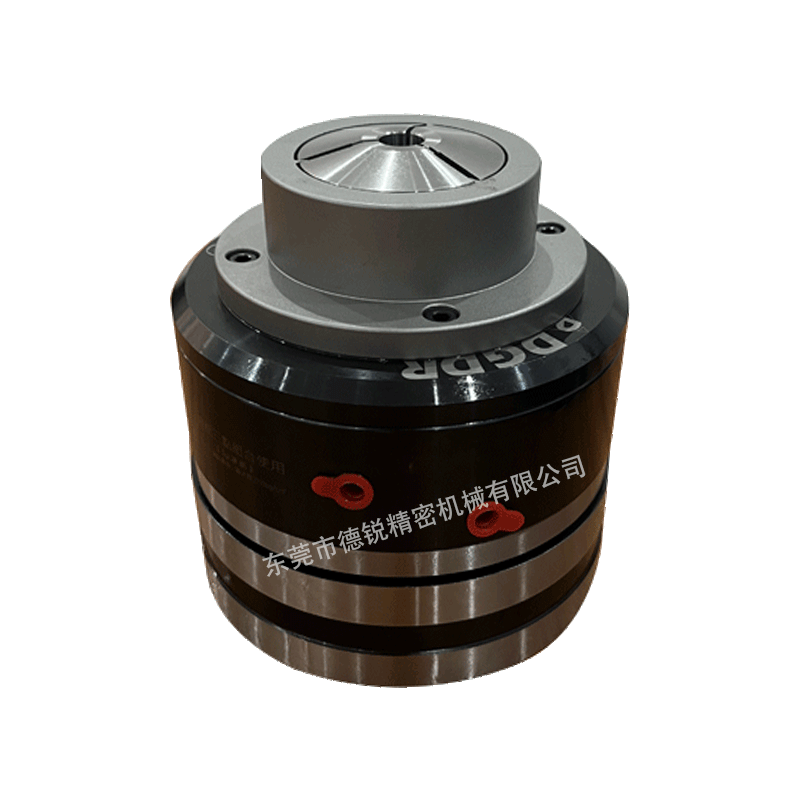

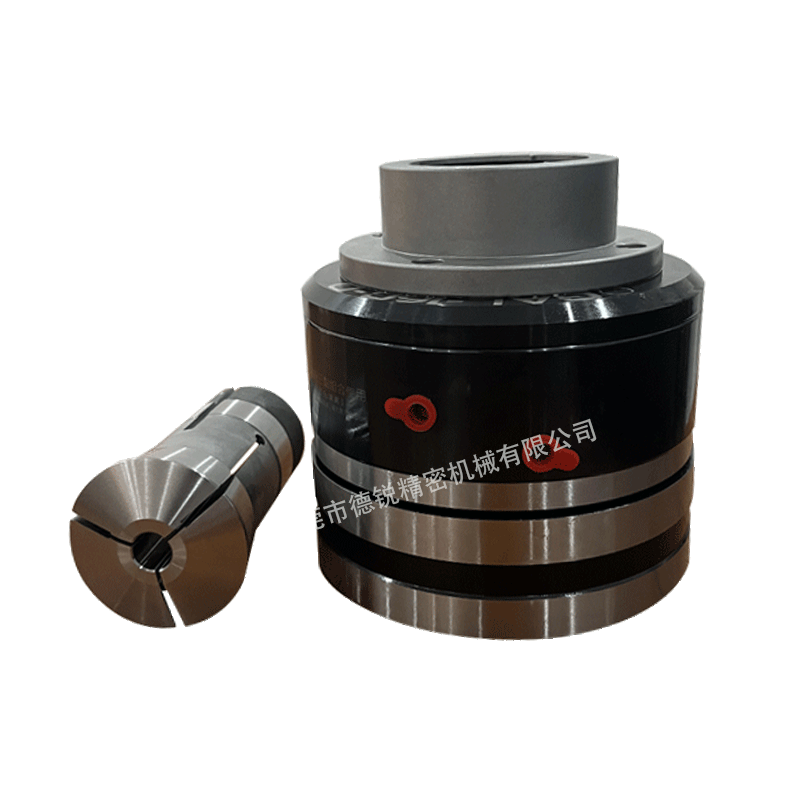

GAL-D High-Precision Pneumatic Rotary Chuck, Front-Mounted Pneumatic Chuck
-
Product characteristics
The chuck body of the pneumatic chuck is made of steel, which has a long service life.
The repeated clamping accuracy is within 0.01 mm.
The maximum rotational speed is 2000 revolutions per minute.
It has a central through hole and can hold workpieces with a maximum diameter of 40 mm.
It is airtight to prevent rotation.
It is dustproof and waterproof (under the inflated state).
It is used in various high-precision machining processes, as well as in the automation of four-axis and five-axis precision grinding machines.
-
Product advantages
Support customization.
One-year warranty.
Made in Taiwan, China.

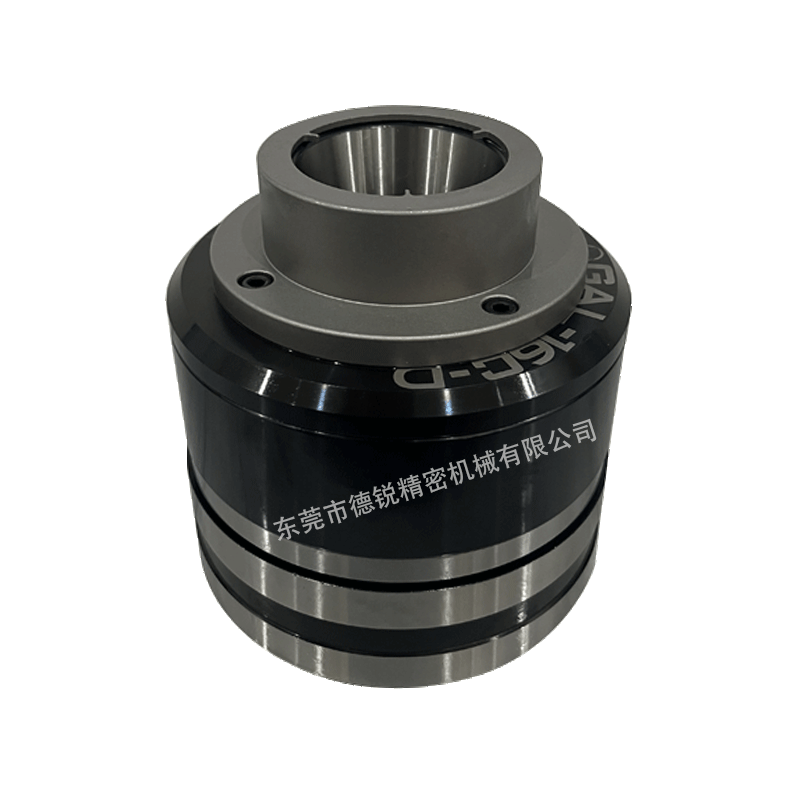

Model: GAL-16C-D.
Brand: DGDR.
