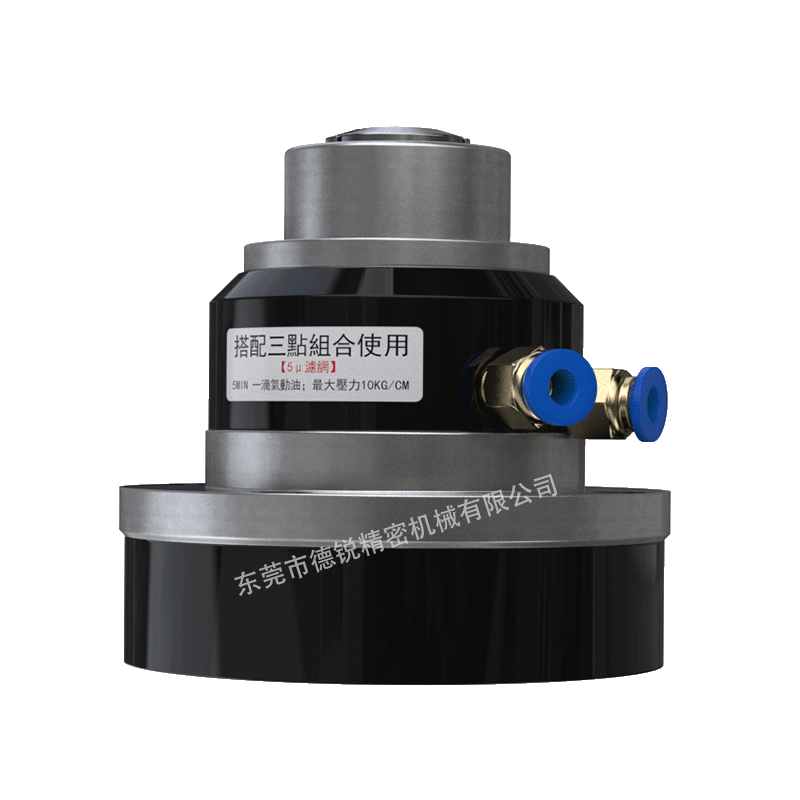

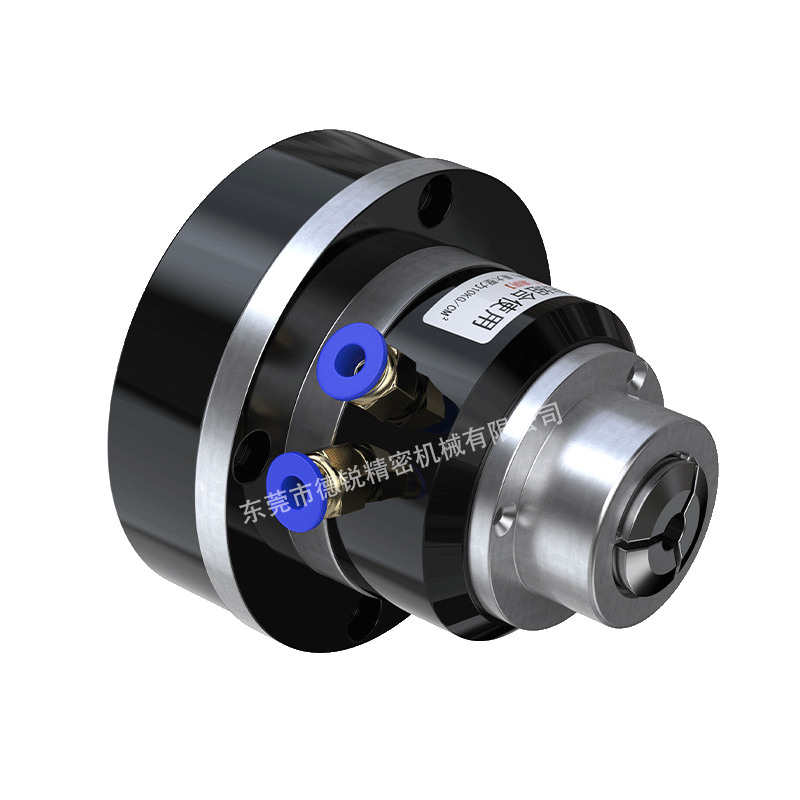

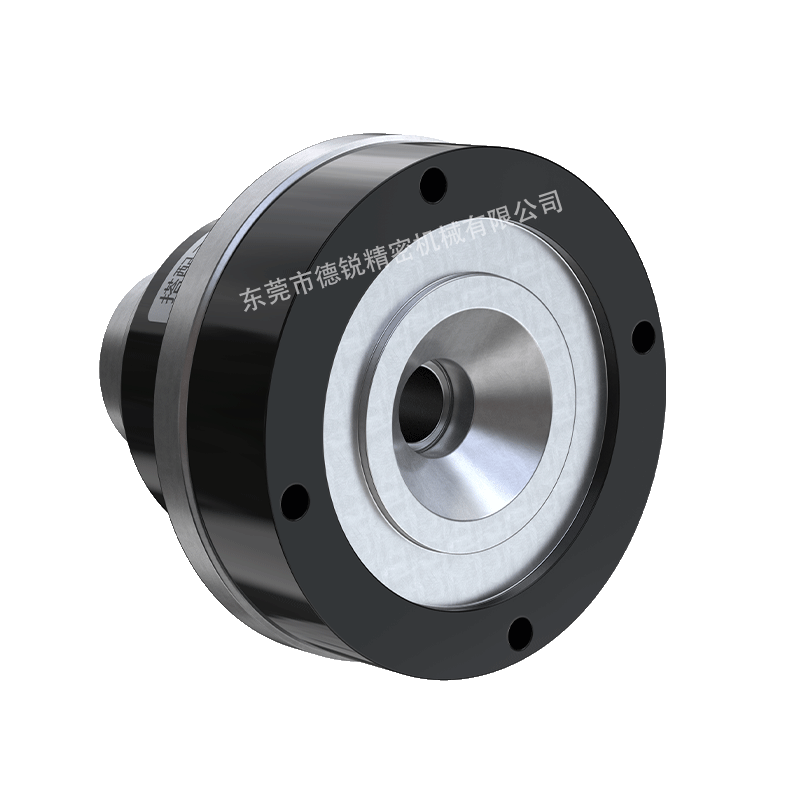

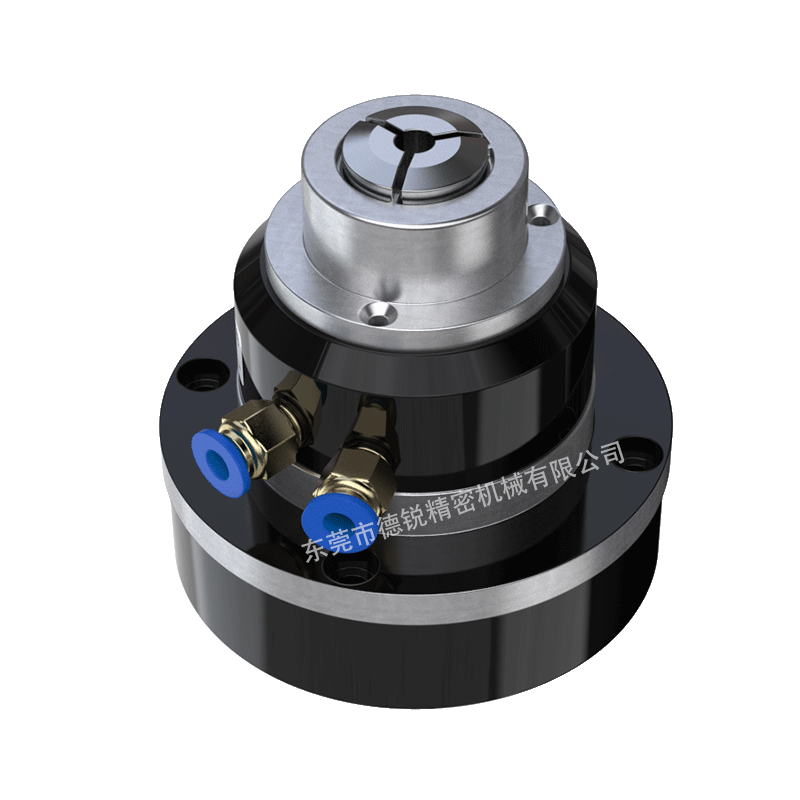

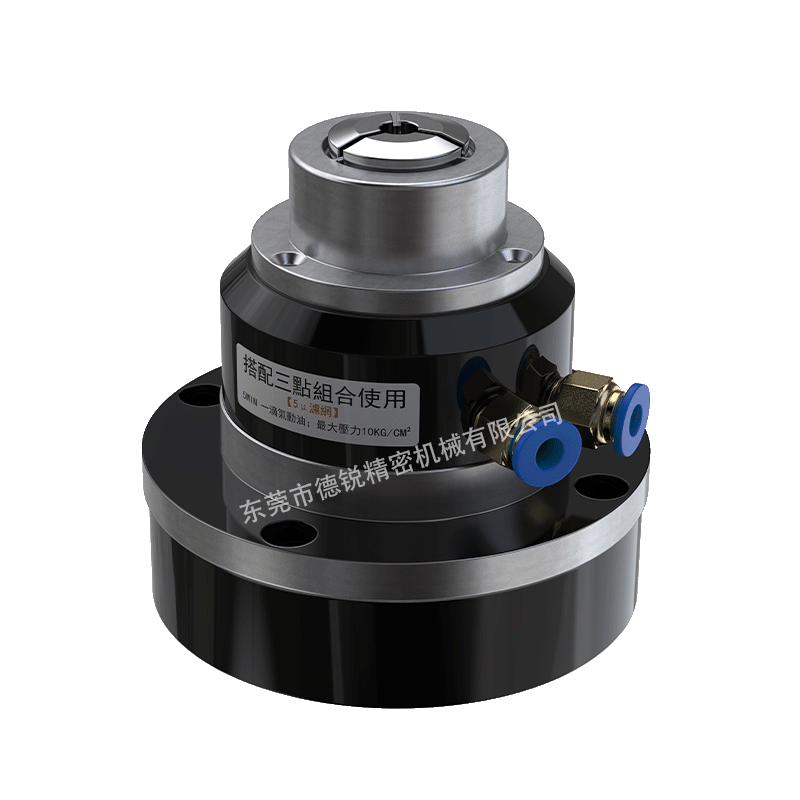

GAL Small High-Precision Pneumatic Rotary Chuck Pneumatic Chuck
-
Product characteristics
The body of the steel pneumatic chuck has a long service life.
It features high precision, with the repeated clamping accuracy within 0.01 mm.
It has a high rotational speed, with a maximum rotational speed of 3500 revolutions per minute.
It has a built-in rotary cylinder, eliminating the need for additional installation of a rotary cylinder (hydraulic cylinder).
It has a small installation outer diameter and a large through hole.
It is paired with the YB collet, and the maximum through hole is 32 mm.
It is airtight, dustproof and waterproof (under the inflated state).
The pneumatic chuck body can be used for both internal expansion and external clamping.
-
Product advantages
Customization is supported.
One-year quality warranty.
Made in Taiwan, China.
